Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-Y830 DC brushless motor barrier
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Running Speed: |
1.5sec-6sec Speed Adjustable |
Rated Voltage: |
DC24V |
Rated Power: |
160W |
Rated Current: |
Dc Brushless Motor |
Brand Name:: |
8.58A |
Product Name: |
100% Duty Cycle 5 Million MTBF RFID Automatic Barrier Gate DC Brushless Motor Speed Adjustable |
Running Speed: |
1.5sec-6sec Speed Adjustable |
Rated Voltage: |
DC24V |
Rated Power: |
160W |
Rated Current: |
Dc Brushless Motor |
Brand Name:: |
8.58A |
Product Name: |
100% Duty Cycle 5 Million MTBF RFID Automatic Barrier Gate DC Brushless Motor Speed Adjustable |

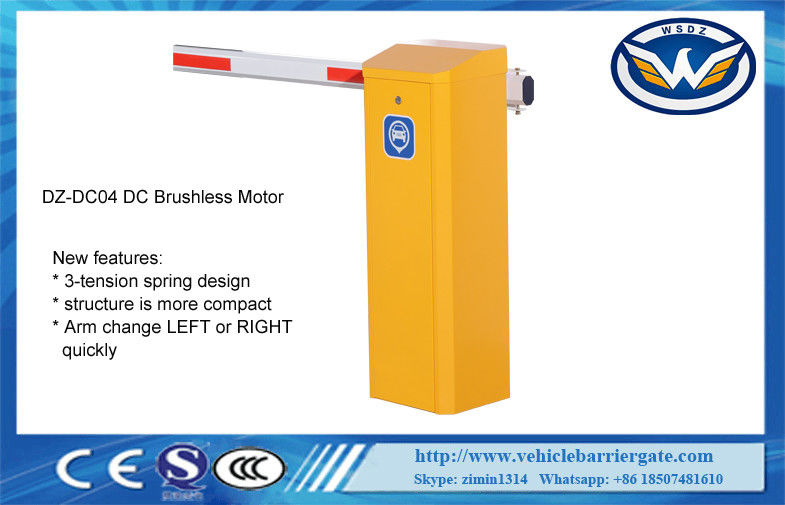

100% Duty Cycle 5 Million MTBF RFID Automatic Barrier Gate DC Brushless Motor Speed Adjustable
If any interest, please contact me freely.
Email: keira@wonsunbarrier.com
Skype: zimin1314
Whatsapp: +86 185 0748 1610
Wechat: Keira_Xia
1. Features
| The running speed can be adjusted from 1.5s to 8s |
| Arm direction can be quickly interchanged |
| Open the barrier gate by motor wheel when power off ,automatically reset after power on |
| Curved crank arm three- link movement structure, the operation is stable |
| Wireless remote control control open/close |
| Auto reverse function(force adjustable) |
| Infrared photocells connector is available |
| Loop detector connector is available. |
| Well-integrated with car parking system equipment,with wire control(must be switch signal) |
| Connector for traffic light(AC220V,power less than 40W) |
| Offering dry contact signal for car parking system(COM,NC,NO) |
| Auto-delay when closing(adjustable) |
| RS485 or CAN network communication interface(no need to install module) |
| Counting interface |
| 24V backup battery interface(Can be charged by using solar energy)( optional) |
| Working temperature(motor): -35℃~+85℃ |
| Rated voltage:DC24V |
| Running speed:1.5s-8s |
| Rated current:8.58A |
| Rated power:160W |
| No-load speed:1850rpm |
| Rated speed:1400rpm |
| Output Power:56.8N.m |
| Output Power:56.8N.m |
| Remote control distance:≤100M(in the open place) |
| IP Degree:IP44 |
| Max length of arm:6M |
Control board function setting description:
When setting the function, please press the menu button on the control panel. The Nixie tube displays
H00-00 or H00-other numbers. We correspond to the function parameter table code to enter the required
function parameter setting. For example, H00-00 is the UP ARM speed adjustment, and then press the
confirm button Enter the parameter setting, the number will be displayed on the digital tube, then press
the up or down key to set the required UP ARM speed number, and then press the confirm button to
complete the ARM-up speed setting.
The other function settings are the same as the example settings.
|
Menu code |
Parameter Scale |
Parameter name | Default | Unit | Remark |
| H00-00 | 25-95 | Open speed adjustment | 35 |
Corresponding PWM duty cycle 25%-95%, step size is 1 |
|
| H00-01 | 25-95 | Close speed adjustment | 35 |
Corresponding PWM duty cycle 25%-95%, step size is 1 |
|
| H00-02 | 5-40 |
Open in place decelerate angle |
35 |
The larger the angle value, the less likely it is to shake the arm when it is in place. |
|
| H00-03 | 5-40 |
Close in place decelerate angle |
35 |
The larger the angle value, the less likely it is to shake the arm when it is in place. |
|
| H00-04 | 1-20 | Open accelerate adjustment | 1 | ms | The smaller the number, the faster the speed |
| H00-05 | 1-20 | Close accelerate adjustment | 8 | ms | The smaller the number, the faster the speed |
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
