5 Million MTBF DC Brushless Intelligent security barrier gate Remote Control

Place of Origin China
Brand Name WONSUN
Certification CE
Model Number DZ-132
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details carton box
Payment Terms T/T, Western Union
Supply Ability 2000/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Heavy Duty, Swing Out, Remote Control Warranty 1 Years For Motor
Speed 1.5s To 6sec Input Interface Photo Cell, Loop Detector, Parking System,wire Control
Rated Voltage: DC24V MCBF 5million Time
Certificate CE Material 2.0mm Cold Roll Plate Or Galvanized Plate
Arm Type Straight, Folding, Fencing
High Light

Remote Control parking entrance barrier

,

5 million time MCBF security barrier gate

,

CE parking entrance barrier

Leave a Message
Product Description

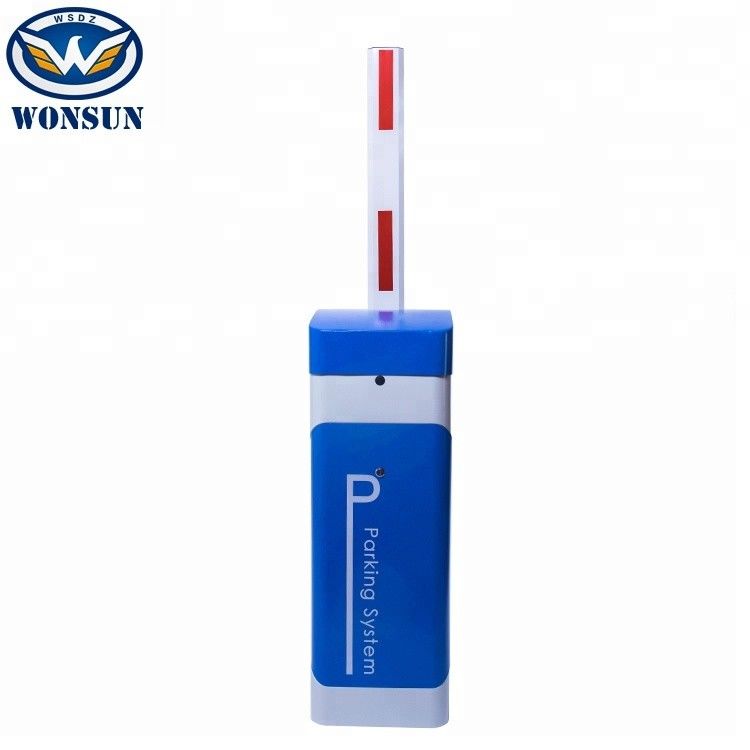

5 Million MTBF DC Brushless Intelligent Barrier Automatic parking system with remote control





Quick details:




Model No. DZ-132 dc brushless motor
Framework Material Cold-roll sheet
Beam Aluminum alloy
Dimension 352 * 302 * 1120mm
Net Weight 48KG
Input Interface Photo cell, loop detector, parking system,wire control
Input 12V relay signal or Pulse Wide>100MS
Power Supply DC24V
Motor Consumption 80W
Working Temperature -35°C to +85°C
Relative Humidity ≥90%
MCBF 5million time
Push Button Support
Remote Control Two button remote transmitter, Distance≤100m
Optional Accessories Loop detector; IR photo cell
Beam Length 1M - 6M
Opening/Close Time 1.5sec-6sec





Functions:


1.Arm direction can be quickly interchanged
2. Run speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.
3.Arm automaticlly locking when power off, then open the barrier gate by motor wheel
4.Remote control to operate the barrier gate.
5.Auto-reverse when the boom meets obstruction.
6.Infrared photocells connector is available.
7.Loop detector connector is available.
8.Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9.Connector for traffic light(AC220V,power less than 40W)
10.Offering dry contact signal for car parking system(COM,NC,NO)
11.Auto-delay when closing(adjustable)



Model No.     DZ-132
Framework Material     Cold-roll sheet
Beam     Aluminum alloy
Dimension     352 * 302 * 1120mm
Net Weight     48KG
Input Interface     Photo cell, loop detector, parking system,wire control
Input     12V relay signal or Pulse Wide>100MS
Power Supply     DC24V
Motor Consumption    80W
Working Temperature     -35°C to +85°C
Relative Humidity     ≥90%
MCBF     5million time
Push Button     Support
Remote Control     Two button remote transmitter, Distance≤100m
Optional Accessories     Loop detector; IR photo cell
Beam Length     1M - 6M
Opening/Close Time    1.5sec-6sec





FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
