Stainless Steel DC24V 200W 0.3sec Automatic Barrier Gate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-290

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

0.3sec Automatic Barrier Gate

,

200W Automatic Barrier Gate

,

DC24V Stainless Steel Barrier Gate

Name:
NEW Arrival Stainless Steel Automatic Barrier Gate Servo DC Motor 0.3sec
Working Voltage:
DC24V
Time For Up/Down:
0.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Name:
NEW Arrival Stainless Steel Automatic Barrier Gate Servo DC Motor 0.3sec
Working Voltage:
DC24V
Time For Up/Down:
0.5~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Description
Stainless Steel DC24V 200W 0.3sec Automatic Barrier Gate

New Arrival Stainless Steel Automatic Barrier Gate Servo DC motor 0.3sec





Quick detail:



WONSUN 2nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure. High precision, high consistency, and standardization. And use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat, small penetration, precise limit, etc., using a digital signal processor(DSP) As the control core, it can realize more complex algorithms, realize network and intelligence,(IPM)An internal integrated drive circuit can detect faults and display fault code to quickly solve fault problems. The three-bar linkage design of the machine core makes the rapid rise and fall operation more stable using solar charging applications. It is suitable for unmanned occasions such as railway crossings, fire passages, oil stations, mine tunnels. etc. without electricity, and fully realizes automatic operation control.


Features
  1. This barrier adopts mechatronics design, compact structure, molded production, good consistency, high precision, fast production efficiency, high qualification rate, and short delivery time.
  2. Servo motor planetary transmission, fast speed, high efficiency, energy-saving, and environmental protection, long life.
  3. unique three-link design, more stable operation, easy to switch the length of the three tension spring balance rod,
  4. The lever can be manually lifted without the need for a clutch or a hand crank when the power is off. A self-locking anti-lifting lever device is provided for safe and reliable lifting.
  5. It adopts a chip to drive, powerful functions, fast calculation speed, no contact start, no sparks or high temperature, solar energy and animal batteries can be used. There is no electric power construction site, train crossing, fire channel, mine, and petrol station. Occasion use.
  6. 200W24V servo motor, long-term operation, the motor does not generate heat, minus 50 degrees, and high temperature 85 degrees work normally.
  7. the left and right can be quickly interchanged, the inventory is reduced, the field direction is quickly changed, and the time and cost are saved.
  8. Horizontal motor design, no oil leakage, small size, suitable for assembling various chassis styles to reduce production costs.
  9. The 200W 24 low-voltage servo motor has low power consumption, large torque, adjustable speed from 0.9 seconds to 8 seconds, wide, long, and short poles and fence poles use the same model, which greatly reduces the efficiency of inventory and fast sales.




Functions

1, Open and close speed adjustable 0.5sec to 6sec
2, Arm direction left and right can change easily.
3, When power is off, manually open and close the arm, and lock itself.
4, Wireless remote
5, Photocell IO port output.
6, Loop detector anti-collision IO output.
7, Open, and close control input.
8, 12V traffic light output.
9, Traffic light signal output.
10, Open and close limit signal output.
11, Counting(fleet) input RS485 communication input
12, 24V battery input port.
13, Delay close arm function(1-300 sec, adjustable)
14, Open and close arm speed deceleration function
15, One-key setting arm type with corresponding speed
16, Arm auto-reverse function(force adjustable)
17, Anti-collision alarm function(additional sensors and alarms are required)


Technical data

Working Temperature

-50℃~+85℃
Power Supply  24/100/240VAC, 50/60Hz
Open/close Speed  0.9sec to 6sec (adjustable)
Rated Power  200W
Driving Method  Servo motor
Humidity  <90%
Remote Control Distance  <100m(open, sunny weather)
Protection Grade  IP55
Motor No-load Speed  300r/min
Max Boom Length  1-6m

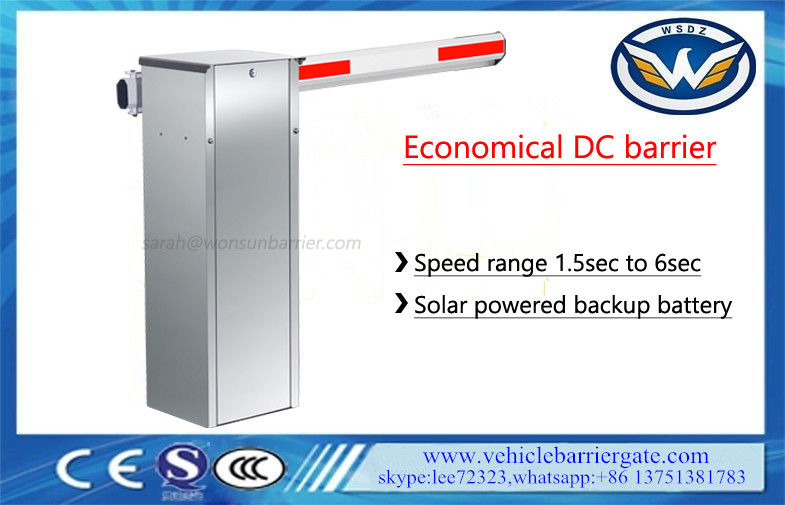

Stainless Steel DC24V 200W 0.3sec Automatic Barrier Gate 0





FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes, the standard advertising barrier gate has a loop detector and pressure sensor.



2-How about the guarantee and after-sale service?

We have 1-year quality guarantee, We own well-trained and passional sales & after-sale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT, western union, our company already joined the trade assurance, it will highly protect your order security.



5-How do you send the products to me, how long?

As our products are big volume, and heavy-duty, we suggest you ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package. Then outside, there is a wooden crate package.
