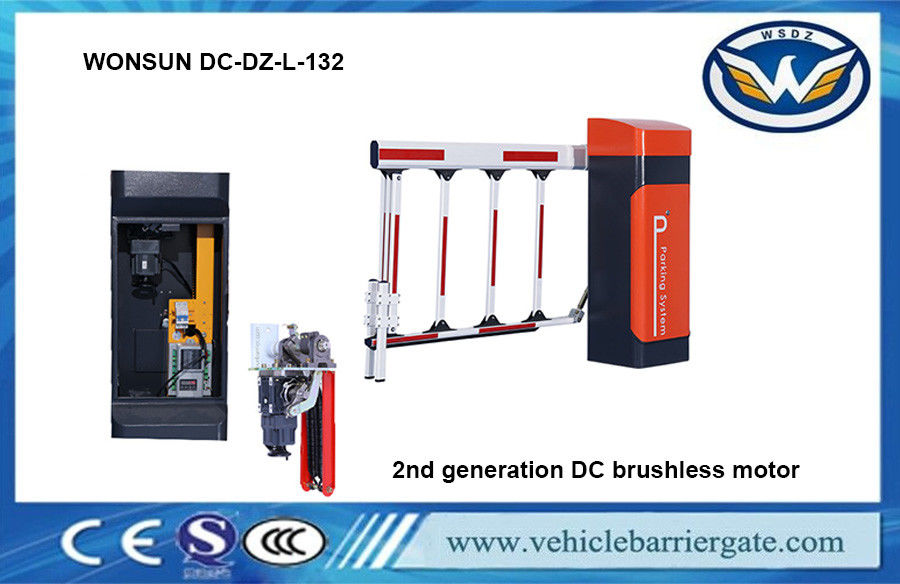

Toll Station 6s 140w Parking Lot Barrier Gate MCBF

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: WSTP-DC-DZ-L-132

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: 230

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

140w Parking Lot Barrier Gate

,

6s Parking Lot Barrier Gate

,

MCBF Toll Station Gate Barrier

Features:
High Speed,Heavy Duty, Manual Release, Swing Out, Remote Control
Name:
Hot Sale Wonsun DC Automatic Barrier Gate,Toll Station Gate Barrier
Material:
2mm Cold Rolled Steel Plate
Voltage:
DC24V,AC220/110V,50/60HZ,
Operation Time:
1.5s-6s
OEM:
Support
Certificate:
CE,ISO
Application:
Parking Lots, Toll System, Airport, Hotel, School,Residential
Features:
High Speed,Heavy Duty, Manual Release, Swing Out, Remote Control
Name:
Hot Sale Wonsun DC Automatic Barrier Gate,Toll Station Gate Barrier
Material:
2mm Cold Rolled Steel Plate
Voltage:
DC24V,AC220/110V,50/60HZ,
Operation Time:
1.5s-6s
OEM:
Support
Certificate:
CE,ISO
Application:
Parking Lots, Toll System, Airport, Hotel, School,Residential
Description
Toll Station 6s 140w Parking Lot Barrier Gate MCBF

Hot Sale Wonsun DC Automatic Barrier Gate,Toll Station Gate Barrier





Our Advantages:



1.1.5second to 6second open/close time adjustable, 2nd generation DC brushless motor & 5 million MCBF;

2. Arm direction can be quickly changed;

​3. 24hrs continous work without generating any heat,perfect choice for big vehicle volume;
4. Simplified design, easy installation and maintenance reduces your labor cost;
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order;

6. OEM Brand, Logo, Label available;

7.1year standard warranty, excellent after-sales service;

8. 24h*7d at your service to give you best support;





Name WSTP-DC-DZ-L-132
Close/Open time 1.5s-6s adjustable
Arm Type Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy

Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy

​Round arms retractable arms,crank arms,folding arms optional

Material

Galvanized plate or Cold roll plate, 2mm thickness sheet

3 years without rust, shedding and fading

Size 320*280*935 mm
Spring And Bearing Heat Treatment: more durable, more than 10 million times through operation testing
Rating Power 140w
Rating Voltage DC 24V ,AC 220V/110V±10%, 50/60HZ
Remote Control Distance Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size 1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

G.W 50 KG
Delivery By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested

Payment Sample: full payment

Order: usually 40% advance deposite, balance before shipment

Advantages 1. Professional Manfacturer for 10 years

2. Mould Production, High Accuracy

3. Heat Treatment, more durable than normal

4. Better Service from Professional Work Team

Application

This Automatic Barrier Gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle, for parking lots with high traffic flow such as parking lot, toll gate, shopping center, exhibition center, hospitals,airport ,school,etc





Toll Station 6s 140w Parking Lot Barrier Gate MCBF 0





Package:

Packed in bubble wrap firstly, and then reinforced with carton for outer packing.



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole



Toll Station 6s 140w Parking Lot Barrier Gate MCBF 1



FAQ:



Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY,Generally 2-5 days for stock. 5-7 days for larger order

Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc.
Q: How is your payment terms?
A: T/T or Western Union etc.

Q: Do you provide free samples ?

A: No,we don't provide free samples. The MOQ is 1pcs.



Toll Station 6s 140w Parking Lot Barrier Gate MCBF 2
