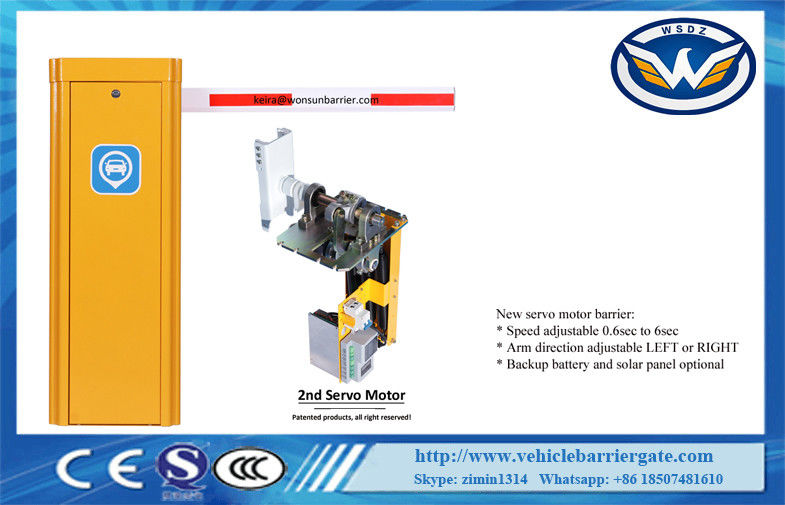

RRID Parking Lot 400W Automatic Barrier Gate 3000r/min

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-Y860 pro

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

400W Automatic Barrier Gate

,

Automatic Barrier Gate 3000r/min

,

RRID Parking Lot Barrier Gate

Running Speed:
0.5s-8s
Rated Voltage:
DC24V
Rs485:
YES
Drive Motor:
Servo Motor
Brand Name::
-50℃~+85℃
Product Name:
Servo Motor RRID Parking Lot Automatic Barrier Gate Anti-Crash OEM Manufacturer Security Parking Barriers
Running Speed:
0.5s-8s
Rated Voltage:
DC24V
Rs485:
YES
Drive Motor:
Servo Motor
Brand Name::
-50℃~+85℃
Product Name:
Servo Motor RRID Parking Lot Automatic Barrier Gate Anti-Crash OEM Manufacturer Security Parking Barriers
Description
RRID Parking Lot 400W Automatic Barrier Gate 3000r/min

Servo Motor RRID Parking Lot Automatic Barrier Gate Anti-Crash OEM Manufacturer Security Parking Barriers





Safety Precautions



To ensure your safe operation, please strictly in accordance with the provisions of this manual.

  • To avoid personal injury, it is strictly forbidden to open the door or cover when barrier working.
  • The barrier housing must be connected to the ground to prevent inductive electric shock.
  • It is strictly forbidden to stand, walk or place objects under the boom/ arm when barrier working.
  • The boom/arm and the spring have been matched to the balance state before goods leave out our factory. To avoid the danger of the balance being lost, the length and weight of the boom/arm can not be increased or decreased at random. If you need to change it, please ask the professional for advice.

Functions and Features

1. Open and close speed adjustable
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell I0 port output
6. Loop detector anti-collision I0 output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close limit signal output
11.Counting (fleet) input RS485 communication input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. Arm auto reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms are required)




 Technical Parameter List



working temperature -50℃~+85℃ -50℃~+85℃
power supply 24VDC, 100/240VAC, 50/60Hz 24VDC, 100/240VAC, 50/60/Hz
Open/close speed 0.9sec to 8sec (adjustable) 0.6sec to 8sec (adjustable)
Rated power 200W 400W
Driving method Servo motor servo motor
Humidity ≤90% ≤90%
Remote control distance ≤100m (open place, sunny day) ≤100m ( open place, sunny day)
Protection grade IP55 IP55
Motor No-load speed 3000r/min 3000r/min
Max boom length 3M-6M 2.5M-6M






Servo rod long rod type speed control table



RRID Parking Lot 400W Automatic Barrier Gate 3000r/min 0Menu

Parameter



Unit

Boom type/length

Open arm Close arm
H00-00 H00-04 H00-14 H00-15 H00-17 H00-01 H00-05 H00-14 H00-15 H00-17
6s 6mstraight arm 20 30 10 15 11 20 45 10 15 11
5s 5m straight arm 30 30 15 10 10 30 40 15 10 10
3s 4.5m straight arm 40 30 15 9 9 40 35 15 9 9
1.8s 3m straight arm 60 30 20 9 8 60 30 20 9 8
0.9s 3m straight arm 100 30 30 9 7 90 30 30 9 7
0.6s 2.5m straight arm 120 30 30 8 7 120 45 30 9 7
6s 4.5m 2 fence arm 20 30 10 10 11 20 45 10 15 11
6s 4m 3 fence arm 20 35 10 10 11 20 45 10 15 11

(the parameter is based on the company’s arm)





FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping

forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
