Servo motor 1m Arm 0.9s 300r/min Vehicle Barrier Gate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-890

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

300r/Min Vehicle Barrier Gate

,

1m Arm Vehicle Barrier Gate

,

0.9s Parking Lot Barrier Gates

Name:
WONSUN Vehicle Barrier Gate Gate Arms Barrier Gates NEW Servo
Working Voltage:
DC24V
Time For Up/Down:
0.9~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Name:
WONSUN Vehicle Barrier Gate Gate Arms Barrier Gates NEW Servo
Working Voltage:
DC24V
Time For Up/Down:
0.9~6s
Length Of Arm:
1m-6m
Color:
Blue, Red,White
Place Of Origin:
Shenzhen,China
Description
Servo motor 1m Arm 0.9s 300r/min Vehicle Barrier Gate

WONSUN Vehicle Barrier Gate Gate Arms Barrier Gates NEW Servo





Quick Details:



WONSUN 2nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure.High precision, high consistency, and standardization. And use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat,small penetration, precise limit, etc., using a digital signal processor(DSP) As the control core, it can realize more complex algorithms, realize network and intelligence,(IPM) An internal integrated drive circuit can detect faults and display fault codes t quickly solve fault problems. The three-bar linkage design of the machine core makes the rapid rise and fall operation more stable usingsolar charging applications. It is suitable for unmanned occasions such as railway crossings, fire passages, oil stations,mine tunnels. etc. without electricity, and fully realizes automatic operation control.





Technical Data



Working Temperature -50℃~+85℃
Power Supply 24/100/240VAC, 50/60Hz
Open/close Speed 0.9sec to 6sec (adjustable)
Rated Power 200W
Driving Method Servo motor
Humidity <90%
Remote Control Distance <100m(open, sunny weather)
Protection Grade IP55
Motor No-load Speed 300r/min
Max Boom Length 1-6m






Functions

1, Open and close speed adjustable
2, Arm direction left and right can change easily.
3, When power is off, manually open and close the arm, and lock itself.
4, Wireless remote
5, Photocell IO port output.
6, Loop detector anti-collision IO output.
7, Open, and close control input.
8, 12V traffic light output.
9, Traffic light signal output.
10, Open and close limit signal output.
11, Counting(fleet) input RS485 communication input
12, 24V battery input port.
13, Delay close arm function(1-300 sec, adjustable)
14, Open and close arm speed deceleration function
15, One-key setting arm type with corresponding speed
16, Arm auto-reverse function(force adjustable)
17, Anti-collision alarm function(additional sensors and alarms are required)






Type Length and Operating Speed Parameters of Bar



Arm type Arm Length (L) Operation time(S) Height between arm and ground (M)
Straight arm 6M≥L>5M 5S H=0.83M
5M≥L≥4.5M 4S
4.5M>L≥3M 3S
90 degree folding arm L≤5M 5S
180 degree folding arm L≤5M 5S
Two fence arm 5M≥L≥4M 6S H=0.9M
4M>L≥3M 3S
Three fence arm 5M≥L≥4M 6S H=1.5M





Learning Remote control



The remote control using special IC learning code remote controller, 418MHz
wireless frequency, strong anti-interference, long remote control distance, that can up
to 100meters in good weather, use easily and durable. The receiver of learning code
remote control can store 16 different remote control codes, and support unlimited
number of same code remote control. The external receiver learned the remote control
within 5 seconds when power on,press the open/close key at the same time to
complete the learning, and reset to continue learn when not complete. If repeat the
learning, open the external receiver shell, there is a white button on circuit board, hold
down 15 seconds to delete the remote control code, continue to learn or press the
white button to learn.

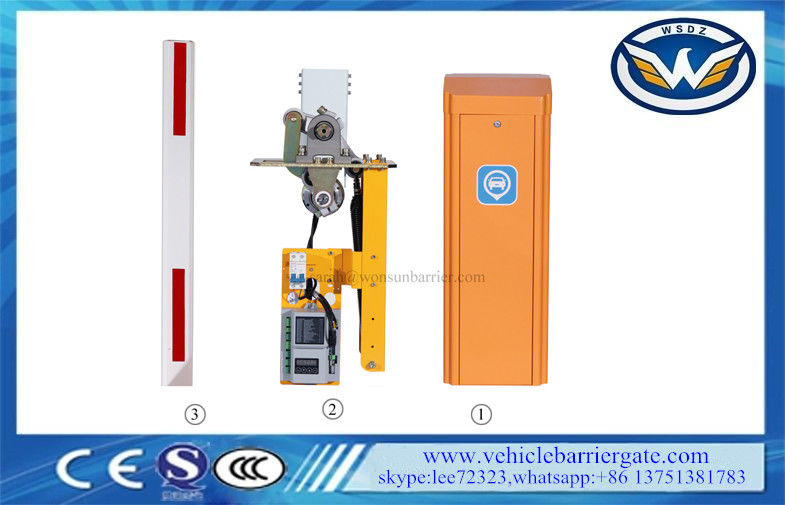

Servo motor 1m Arm 0.9s 300r/min Vehicle Barrier Gate 0

Servo motor 1m Arm 0.9s 300r/min Vehicle Barrier Gate 1







FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
