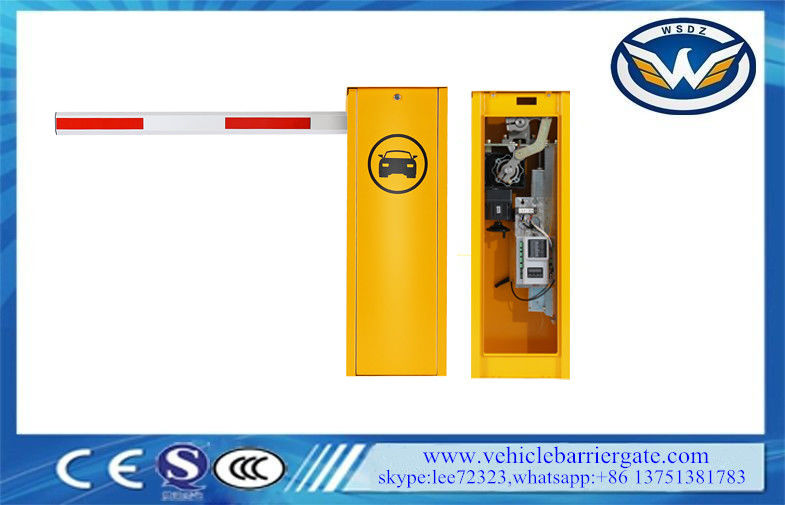

DC Brushless Motor 1850rpm 140W Automatic Barrier Gate IP44

DC Brushless Motor 1850rpm 140W Automatic Barrier Gate IP44
DC Brushless Motor 1850rpm 140W Automatic Barrier Gate IP44

Large Image :  DC Brushless Motor 1850rpm 140W Automatic Barrier Gate IP44

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-220
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

DC Brushless Motor 1850rpm 140W Automatic Barrier Gate IP44

Description
Name: Automatic Barrier Gate DC Brushless Motor Adjustable Speed 1.5s To 6s Working Voltage: DC24V
Time For Up/Down: 1.5~6s Length Of Arm: 1m-6m
Color: Blue, Red,White Place Of Origin: Shenzhen,China
High Light:

140W Automatic Barrier Gate

,

1850rpm Automatic Barrier Gate

,

IP44 Automatic Vehicle Barrier

Automatic Barrier Gate DC Brushless Motor Adjustable Speed 1.5s to 6s





Why choose DC?



1.Mechanical and electrical integration: quickly assembly, easy maintenance
2.DC brushless motor design: Low consumption, high efficiency, no overheat, wide speed adjustment.
3.Molding production: high precision, fast efficiency, and guaranteed quality.
4.Worm-gear secondary variable speed transmission: motor wheel design, gate opening by manually when power off, no blacking, no oil leakage, large torque. low noise, can normally operate at the temperature of minus 45 degrees, etc.





Technical parameters


1 Working temperature(motor): -35℃~+85℃
2 Rated voltage: DC24V
3 Running speed:1.5s-8s
4 Rated current: 8.58A
5 Rated power: 140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power: 56.8N.m
9 Relative humidity: ≤90%
10 Remote control distance: ≤100M( in the open place)
11 IP Degree:IP44
42 Max length of arm: 6M


Advanced Features:
  • Hall limit: Automatically detects the limit when power on without debugging, detecting the motor speed at all times, and running at a constant speed.
  • Curved triple connecting rod structure, easy to adjust.
  • Arm direction quickly interchanged: interchanged according to different directions on the construction site, reduce inventory, and capital pressure.
  • Special DC brushless controller: use integrated chip drive, fast processing speed, large memory, powerful function;24v low voltage power supply adapts to global voltage.


Features

1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)







The parameter for selecting the balance tension spring



Arm Type The Length of arm Selection Spring


Type



Spec.(diameter*Length)
Straight Arm/Folding Arm 6M≥L>5M Extension Spring (ø5.5x280)+(ø4.5x280)
  5M≥L≥4.5M   (ø5.5x280)
  4.5M>L≥3M   (ø4.5x280)
Fence Arm 5M≥L≥4M   (ø6.5x280)+(ø6.5x280)
  4M>L≥3M   (ø5.5x280)+(ø4.5x280)





Learning Remote control



The remote control using special IC learning code remote controller, 418MHz
wireless frequency, strong anti-interference, long remote control distance, that can up
to 100meters in good weather, use easily and durable. The receiver of learning code
remote control can store 16 different remote control codes, and support unlimited
number of same code remote control. The external receiver learned the remote control
within 5 seconds when power on,press the open/close key at the same time to
complete the learning, and reset to continue learn when not complete. If repeat the
learning, open the external receiver shell, there is a white button on circuit board, hold
down 15 seconds to delete the remote control code, continue to learn or press the
white button to learn.





DC Brushless Motor 1850rpm 140W Automatic Barrier Gate IP44 0





FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.
