DC Brushless Motor Automatic Barrier Gate 6m Max Arm Length CE Approved

China DC Brushless Motor Automatic Barrier Gate 6m Max Arm Length CE Approved supplier

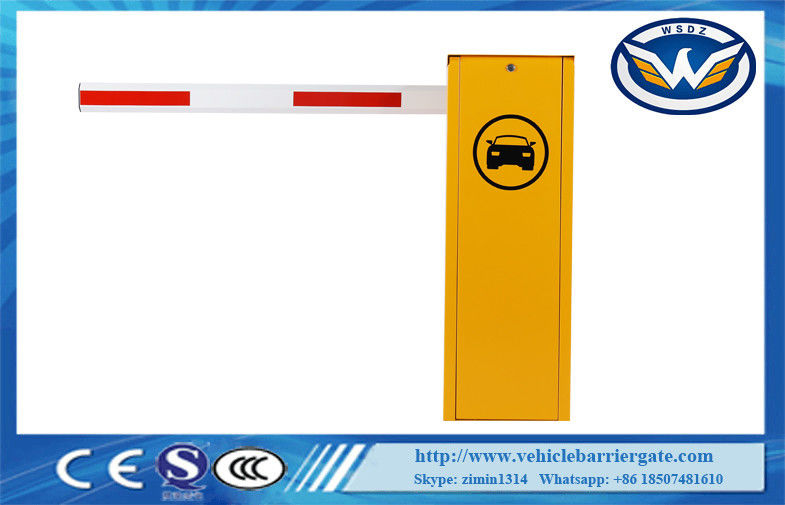

Large Image :  DC Brushless Motor Automatic Barrier Gate 6m Max Arm Length CE Approved

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-220

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Rated Voltage: DC24V Advantages: Arm Swing Out, Arm Auto Reverse, Speed Adjustable, Hall Limit, Backup Battery Supported
Max Arm Length: 6m Running Speed: 1.5s-8s
Housing Thickness: 1.5mm Product Name: 5 Million Lifetime 24V DC Motor Automatic Barrier Gate DC Brushless Motor With Backup Battery IP44

5 Million Lifetime 24V DC Motor Automatic Barrier Gate DC Brushless Motor With Backup Battery IP44


Features



1 The running speed can be adjusted from 1.5s to 8s

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)





Technical parameters

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M





Installation, commissioning and use



7.1 Equipment installation

7.1.1 Please select the correct type of barrier gate according to the specifications of

the pace,and then fix the barrier cabinet with expansion bolts(refer to Figure 3).

After determined the position,the barrier gate foundation should be done according to the site conditions,and

also make the cast-in-place basement for the non-concrete ground.



7.4 Adjust the Position of Barrier Arm

To adjust the position of the arm (for example, after exerting excessive force), please take the steps as below:

  • open the barrier gate door and remove the cover
  • loosen the two fasten screws of the DZ-1 on the boom shaft with the M12's Allen wrench, so that the boom can be re-positioned by hand.
  • adjust the position of the boom (horizontal position, as shown in picture 1).
  • Use the hexagonal wrench to tighten the two fastening screws (72 Nm)

The parameter for selecting the balance tension spring

Arm Type The Length of arm Selection Spring

Type



Spec.(diameter*Length)
Straight Arm/Folding Arm 6M≥L>5M Extension Spring (ø5.5x280)+(ø4.5x280)
5M≥L≥4.5M (ø5.5x280)
4.5M>L≥3M (ø4.5x280)
Fence Arm 5M≥L≥4M (ø6.5x280)+(ø6.5x280)
4M>L≥3M (ø5.5x280)+(ø4.5x280)


(the parameter is based on the company’s arm)


DC Brushless Motor Automatic Barrier Gate 6m Max Arm Length CE Approved



Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest, please contact me freely.
