Economical DC Motor Automatic Vehicle Barrier 140W Rated Power IP44 Degree

China Economical DC Motor Automatic Vehicle Barrier 140W Rated Power IP44 Degree supplier

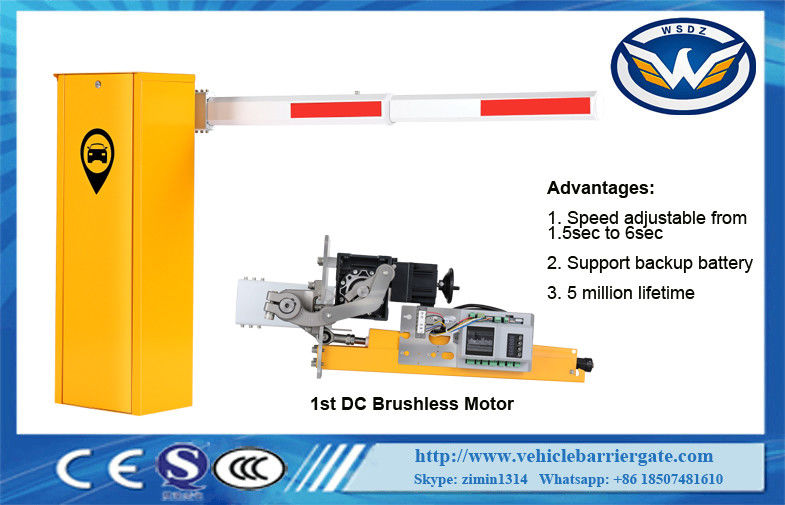

Large Image :  Economical DC Motor Automatic Vehicle Barrier 140W Rated Power IP44 Degree

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-220

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Running Speed: 1.5s-8s Rated Voltage: DC24V
Advantages: Speed Adjustable, Hall Limit, Backup Battery Supported Rated Power: 140W
Max Arm Length: 6m Product Name: Economical DC Motor Automatic Barrier Gate With 24V DC Motor Brushless Hall Limit

Economical DC Motor Automatic Barrier Gate With 24V DC Motor Brushless Hall Limit


Technical parameters

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Remote control distance:≤100M(in the open place)
9 IP Degree:IP44
10 Max length of arm:6M


Features



1 The running speed can be adjusted from 1.5s to 8s

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)

11 Offering dry contact signal for car parking system(COM,NC,NO)

12 Auto-delay when closing(adjustable)




Arm length speed comparison table


Menu code Number Menu code name Defaults unit Remarks
H00-00 25-95 Open speed adjustment 40   Corresponding PWM duty cycle 25%-95%, step size is 1
H00-01 25-95 Close speed adjustment 40   Corresponding PWM duty cycle 25%-95%, step size is 1
H00-02 5-40 Open in place decelerate angle 35   The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-03 5-40 Close in place decelerate angle 35   The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-04 1-20 Open accelerate adjustment 10 ms The smaller the number, the faster the speed
H00-05 1-20 Close accelerate adjustment 10 ms The smaller the number, the faster the speed
H00-06 1-30 Open in place angle 2 degree step size is 1
H00-07 1-30 Open in place angle 1 degree step size is 1
H00-08 7-13 Auto reverse force adjustment 10 A step size is 1
H00-09 0-90 Delay closing adjustment 0 Sec step size is 100;0 is not closing automatically,,Other value will be closing automatically;This parameter is for when there is no loop detector signals and non-automatic operation occasions
H00-10 10-50 Self-check speed adjustment 30   Corresponding PWM duty cycle 10%-50%, step size is 1
H00-11 0-2 Self-check mode 0   0:no operate automatically;1:operate automatically,remove after power off;2:operate automatically,Power failure memory
H00-12 0-5 Self-lock force adjustment(Invalid) 3
H00-13 1-20 Motor deceleration time when paused 5   The larger the setting, the longer the pause time will take
H00-14 0-1 The default direction of operation after self-test 0   0:Closing,1:opening
H00-15 1-10 Number of pole pairs(Invalid) 4   Only used to correctly display motor speed values
H00-16 1-32 RS485communication address 1   Up to 32 slaves can be connected
H00-17 0-2 RS485communication rate 0   0:9600,1:19200,2:38400;Change the parameter and will be valid after power on again.
H00-18 0-1 If self-test after power is on 1   0:no self-test after power on,1:self-test after power on
H00-19 0-3 Manual self-test adjustment 2   0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid
H00-20 0-15 Monitoring parameter setting index 7   7,operation times(ms):0~9000
8,Cumulative operation times:0`99999999
9,automatically operation times :0~99999999
10,Collision times:0~99999999
11,Closing in place times:0~99999999
12,Power-on time (minutes):0~99999999
13,power-on times:0~99999999
14,Input port status:Binary display
15,Error code:0~7
H00-21 0-3 reset 0   1:rest adjustment
H00-22 0-1 LED output mode 0   0:Do not flash alternately during operation;1:Allow flashing
