|Name:||Parking Vehicle Barrier Gate DC 24V Barrier MX 50 Backup Batteries||Working Voltage:||DC24V|
|Time For Up/Down:||1.2-6s||Length Of Arm:||1m-6m|
|Color:||Blue, Red,White||Place Of Origin:||Shenzhen,China|
car parking management system,
security barriers and gates

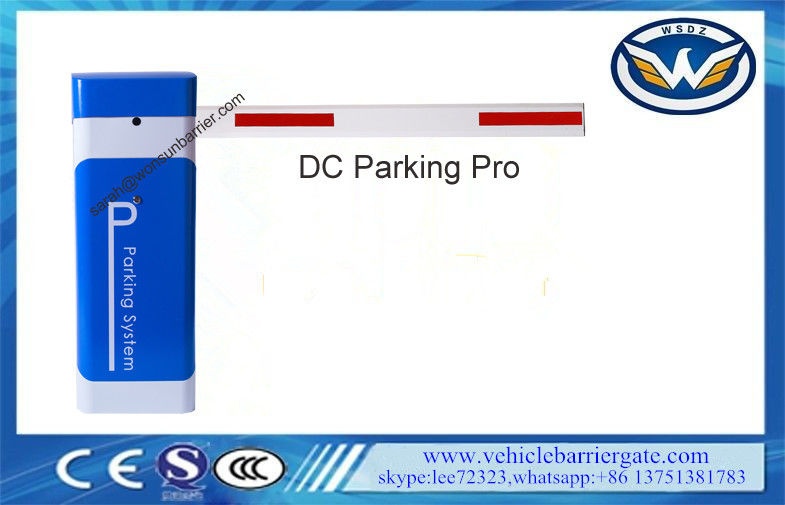

Parking Vehicle Barrier Gate DC 24V Barrier MX 50 Backup Batteries
|1.The operation speed can be adjusted(1.2sec to 6sec)|
|2.Arm direction can be quickly changed.|
3.Barrier gate up&down signal relay switch output
|4.R&G traffic light relay switch signal output.|
5.External loop detector signal anti-smashing interface.
|6.Infrared sensor signal anti-smashing interface.|
|7.Count mode interface.|
8.Arm swing out function, when the vehicle hit the barrier gate, the arm can be swing out to avoid further damage.
|9.High-sensitivity arm auto reverse function(intensity can be adjusted)|
|10.Parking system terface.|
1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
Type Length and Operating Speed Parameters of Sluice Bar
|Arm type||Arm Length (L)||Operation time(S)||Height between arm and ground (M)|
|90 degree folding arm||L≤5M||5S|
|180 degree folding arm||L≤5M||5S|
|Two fence arm||5M≥L≥4M||6S||H=0.9M|
|Three fence arm||5M≥L≥4M||6S||H=1.5M|
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
