Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: ISO,SG,SGS
Model Number: WSTP-116
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Speed: |
1.8s,3s,6s |
Color: |
Red, Black, Orange, Yellow,blue |
Arm Type: |
Straight Arm, Fence Arm And Folding Arm |
Arm Material: |
Aluminium Alloy |
Rating Voltage: |
AC 220/110V±10%, 50/60Hz |
Usage: |
Parking Lot, Toll Station, Bus Station, Community |
Working Temperature: |
-40 C - +80 C |
Communication: |
RS232/485 |
Product Name: |
CE Approved Highway Toll Gate Barrier Parking Barrier Gate For Underground Parking Lot |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Speed: |
1.8s,3s,6s |
Color: |
Red, Black, Orange, Yellow,blue |
Arm Type: |
Straight Arm, Fence Arm And Folding Arm |
Arm Material: |
Aluminium Alloy |
Rating Voltage: |
AC 220/110V±10%, 50/60Hz |
Usage: |
Parking Lot, Toll Station, Bus Station, Community |
Working Temperature: |
-40 C - +80 C |
Communication: |
RS232/485 |
Product Name: |
CE Approved Highway Toll Gate Barrier Parking Barrier Gate For Underground Parking Lot |
Thanks your visiting ,pls read this details first :
1.we are parking barrier gate,sliding gate motor manufacturer.
2.With more than 200 workers & 20 technicians,we are always could support and solve your
peoblem in time.We have many professional engineers with rich experience, qualified products, perfect service system,and successful coopating history with many famous companies.
3.We are Top Ten Brand in China .
4.We provide 12 month warranty for all product and accessories.And customized made barriersize/color.
5.We can provide samples to all clients,And make specifical design accordingly to client's requirement.
6. we are 9 years alibaba members.
Product Dislplay
CE Certificate
Parking Barrier Specifications:
| Dimension | 330*232*972mm |
| Power Supply | AC110±10% / AC220±10% |
| Frequency | 50HZ / 60HZ |
| Power Consumption | 70Watts, 24V |
| Working Temperature | -40°to 85° |
| Related Humidity | ≤90% |
| Remote Control Distance | >30m |
| Arm Speed | 1.8s, 3s, 6s |
Parking Barrier Order Information:
| Description/Speed | 1.8s | 3s | 6s |
| Max Straight Arm | 3m | 4.5m | 6m |
| Arm Swing Out | Yes | Yes | Yes |
| Octagon Arm | Yes | Yes | Yes |
| Tetragon Arm | Yes | Yes | Yes |
| Red Rubber Arm | Yes | Yes |
Yes |

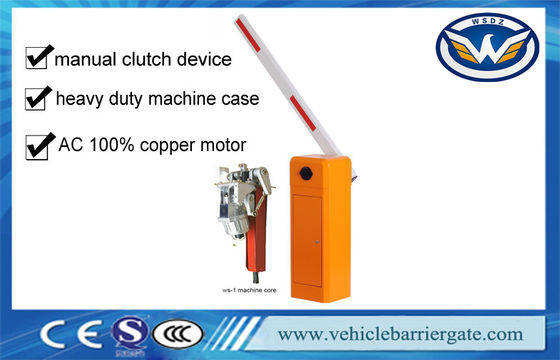

Main Functions
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Packing List
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
| Sea | As for shipment by Sea, we can provide FOB, C&F, CIF, DDP and DDU, which can satisfy all your requirements by Sea |
|---|---|
| Air | As for shipment by Air, if you really need the product for installation, and for airplane, there is length limitation, can not over 3m, so we suggest u not shipping with arm |
| Express | For Express, there is less customer choose it for shipment, because for its price, it is high, but not quicker than Airplane, and also there is limitation of length, but if you want to shipment by Express, we also can provide you this service. |
