Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: negotiate
Packaging Details: carton box
Payment Terms: T/T, Western Union
Supply Ability: 2000/month
Boom Length: |
Max 6 Meters |
Speed: |
0.9s, 2s, 4s |
Color: |
Black&Red, Blue&White, Grey&white |
OEM/ODM:: |
Supported |
Motor Type: |
AC Motor |
Product Name: |
RS485 Bi-Direction Security Safety Fast Speed Automatic Barrier Gate |
Boom Length: |
Max 6 Meters |
Speed: |
0.9s, 2s, 4s |
Color: |
Black&Red, Blue&White, Grey&white |
OEM/ODM:: |
Supported |
Motor Type: |
AC Motor |
Product Name: |
RS485 Bi-Direction Security Safety Fast Speed Automatic Barrier Gate |

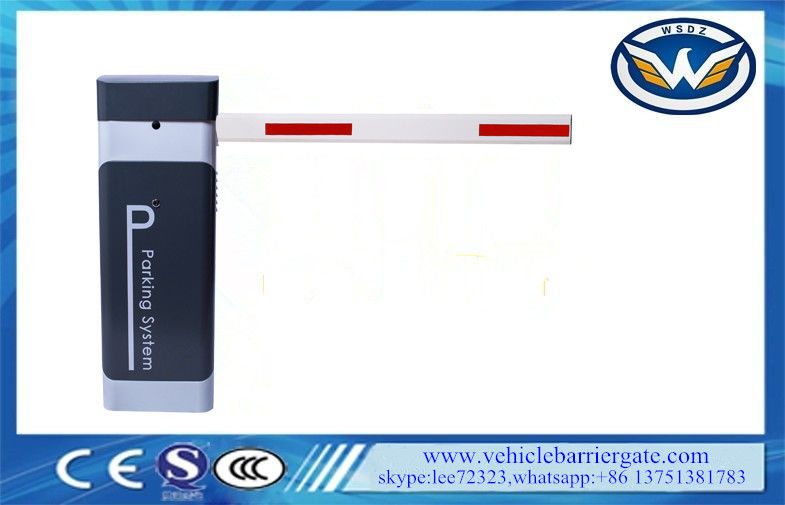

RS485 Bi-Direction Security Safety Fast Speed Automatic Barrier Gate
Barrier arm lengths can be up to 6m, dependent upon your requirements.Asa manufacturer,we are able to offer best barriers to suit client specification, such as matching corporate colors.
Quality control is a top priority, so we are vigorously test our boom barriers to ensure long service left in the field.
The design is the result of years of experience,combining the latest technology with proven, tried and tested methods.The result is a superior product, giving long service left and peace of mind.
Applications:
Automatic boom barrier adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably. The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.
Technical Data:
| Model No. | DZ-132 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 352 * 302 * 1120mm |
| Net Weight | 45KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | AC220V/110V, 50/60Hz |
| Motor Consumption | 80W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 3 million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |
| Beam Length | 1M - 6M |
| Opening/Close Time | 0.9sec-6sec |
Each barrier will include:
| 1 pcs Barrier |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers, 1 pc push button |
| 1 pcs manual book |
1.Q: How long will your barrier working?
A:barrier life span more than 10 years.
2.Q: What should we do if there have problems during using?
A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.
3.Q: First time import, how can i believe that you would send product?
A: We are verified company by Everychina, to make transaction success .
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our shipping port;
3. Our shipping agent will contact you when barrier arrival ;
4. You can pick up barrier by bill of loading .
