Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: WSTP-115B
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $290
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Features: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Name: |
Automatic Barrier Gate With Remote Control Car Parking Barrier Gate With Oem Service |
Machine Core: |
First Generation |
Arm Type: |
Straight , 90/180 Folding,Fencing Optional |
Material: |
Galvanized Plate Or Cold Roll Plate, 2mm Thickness Sheet |
Boom Length: |
Max 6 Meters |
Voltage: |
220V ± 10%, 110V ± 10% |
Running Time: |
1.8s, 3s, 6s . Customized |
Application: |
Parking Lots, Toll System, Airport, Hotel, Residential |
Features: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Name: |
Automatic Barrier Gate With Remote Control Car Parking Barrier Gate With Oem Service |
Machine Core: |
First Generation |
Arm Type: |
Straight , 90/180 Folding,Fencing Optional |
Material: |
Galvanized Plate Or Cold Roll Plate, 2mm Thickness Sheet |
Boom Length: |
Max 6 Meters |
Voltage: |
220V ± 10%, 110V ± 10% |
Running Time: |
1.8s, 3s, 6s . Customized |
Application: |
Parking Lots, Toll System, Airport, Hotel, Residential |

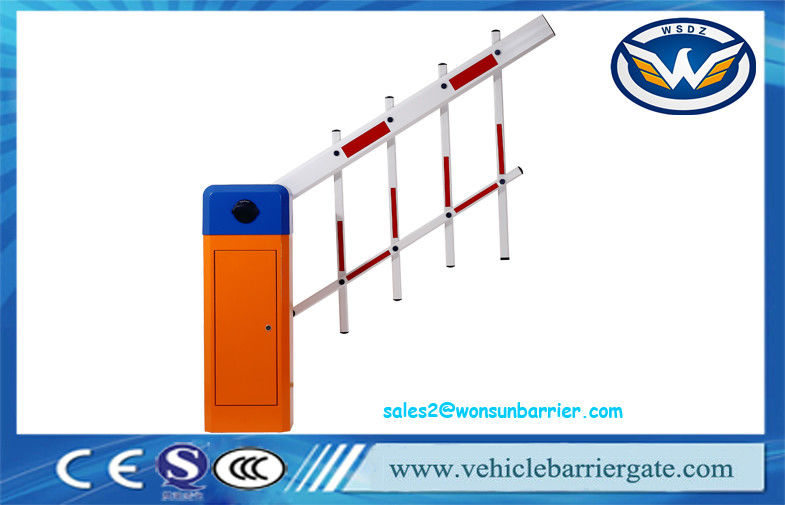

Two Fencing Parking Barrier Automatic Boom Barrier Entrance Security Retractable Barrier for Access Control System
Functions & Features:
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
| Name | WSTP-115/115B |
| Operation time | 0.6s, 1s, 1.8s, 3s, 6s. Customized |
| Arm Type | Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy
Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy |
| Material |
Galvanized plate or Cold roll plate, 2mm thickness sheet 3 years without rust, shedding and fading |
| Size | 320*280*935 mm |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Rating Power | 120W |
| Rating Voltage | AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case
inside with air bubble film for protection |
| G.W | 50 KG |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
| Payment | Sample: full payment
Order: usually 40% advance deposite, balance before shipment |
| Advantages | 1. Professional Manfacturer for more 8 years
2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
| Application |
Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It can also be customized to beused together with any auto-pay ticketing parking or access control system |
Package:
Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
FAQ
Communication with customers
1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and distorted.If yes, change a new one, or spin bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
