Product Details:
|
| Operation Time: | 0.3,0.6,0.9,2,4sec | Warranty: | Liftetime Warranty For Motor, 2 Years Warranty For The Rest Parts Except Arm And Remote |
|---|---|---|---|
| Protection System(IP): | IP65 | Power Consumption: | 150W/100W |
| Working Environment Temperature: | -40 ℃ ~ +85 ℃ | Product Name: | 0.6S High Speed Toll Gate Barrier Vehicle Automatic Barrier Gate |
| High Light: | electric barrier gate,auto barrier gate |
||

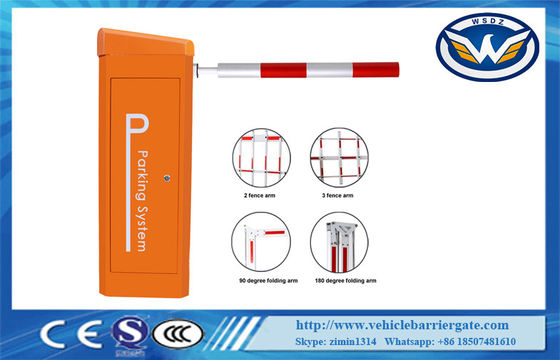

0.6S High Speed Toll Gate Barrier Vehicle Automatic Barrier Gate
Technical Parameter List
| DZ-138 barrier gate | V06T | V09T |
| Max Boom Length and Diameter | 2500mm, Ф75mm | 3000mm, Ф75mm |
| Open/Close Time | 0.6sec | 0.9sec,2.5sec,4.5sec |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Power Consumption | max.150W | 100w |
| Machine Case | Varnished 2.0mm steel plate | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm | 342*312*959mm |
| Net Weight | 43kg | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Driving Method | Servo motor | Servo motor |
| Protection System(IP) | 65 | 65 |
| Insulation Class | F | F |
| Relative Humidity | ≤90% | ≤90% |
| Motor Speed | 3000r/min | 3000r/min |
| Remote Control Distance | ≤100m (open, sunny weather) | ≤100m (open, sunny weather) |
| Output Torque | 1.2N.M*140=160N.M | 0.86N.M*140=120N.M |
| Running Noise＜ | 45dB | 45dB |
| Surface Treatment | Outdoor metal powder electrostatic spraying | Outdoor metal powder electrostatic spraying |
| DZ Controller | ||
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension | mm(L-W-H) | 158*126*55 |
Operation Time and Boom Length Configuration Parameter
| Boom Type(meter) | Operation Time(seconds) | Boom Height(meter) |
| Fast speed boom≤2.5 | 0.6 | 0.83 |
| Fast speed boom≤3 | 0.9 | 0.83 |
| Common straight boom≤4.5 | 2.5 | 0.83 |
| Common straight boom≤6 | 4.5 | 0.83 |
| 80*45mm 90°folding boom≤3 | 1 | 0.83 |
| 80*45mm 90°folding boom≤3.5 | 2.5 | 0.83 |
| 80*45mm 90°folding boom≤5 | 5 | 0.83 |
| 80*45mm 180°folding boom≤3 | 1 | 0.83 |
| 80*45mm 180°folding boom≤4 | 2.5 | 0.83 |
| 80*45mm 180°folding boom≤5 | 4.5 | 0.83 |
| 100*45mm 2 fence boom≤3.5 | 2.5 | 0.83m, small vertical boom is 0.8m, landing boom is 0.9m |
| 100*45mm 2 fence boom≤5 | 6 | 0.83m, small vertical boom is 0.8m, landing boom is 0.9m |
| 100*45mm 3 fence boom≤3 | 3 | 0.83m, small vertical boom is 1.5m, landing boom is 1.6m |
| 100*45mm 3 fence boom≤4 | 6 | 0.83m, small vertical boom is 1.5m, landing boom is 1.6m |
Notice: the “Boom Height ” means height from the boom holding point to the ground.
Vehicle Barrier Gate Advantages:
Functions and Features
1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special
requirement, manual operation is required when power off, operating arm open and close manually also can
be realized by setting up control board DIP switch, which ensure that the system can be used at any time.
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Closing speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple
push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid
damage to the vehicle, and barrier gate machine.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality
