PMSM 24V Motor Automated Boom Barrier Gate For Toll Barrier Gate System

PMSM 24V Motor Automated Boom Barrier Gate For Toll Barrier Gate System
PMSM 24V Motor Automated Boom Barrier Gate For Toll Barrier Gate System

Large Image :  PMSM 24V Motor Automated Boom Barrier Gate For Toll Barrier Gate System

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE/ISO/SGS
Model Number: DZ-138
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

PMSM 24V Motor Automated Boom Barrier Gate For Toll Barrier Gate System

Description
Product Name: PMSM 24V Motor Automated Boom Barrier Gate For Toll Barrier Gate System Motor Rated Power: 50W,max 100W
Running Speed: 0.3s/0.6s/0.9s/2s/4s Rating Voltage: AC90~264V,DC12V
Meterial: 2mm Cold-roll Steel Sheet Housing Size: 342*312*959mm
Remote Control Distance: ≤100m Keyword: Automatic Barrier Gate
High Light:

electric barrier gate

,

car park barrier gate

Slolar Powered Automatic Barrier Booms Gate Vehicle Barrier Gate With Fence Arm







Product Details:

PMSM 24V Motor Automated Boom Barrier Gate For Toll Barrier Gate System 0

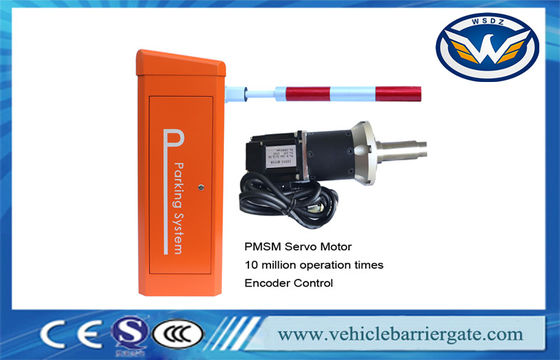

Servo Motor Details:



The barrier gate motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), adjust to the global voltage, high-speed operation and rapid response, it will not overheat after 24 hours, frequent operation, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automated and intelligent, and the barrier arm open/close is fast and smooth, easy to use and safe.
PMSM 24V Motor Automated Boom Barrier Gate For Toll Barrier Gate System 1





Technical Specification



1 Product Name Slolar Powered Automatic Barrier Booms Gate Vehicle Barrier Gate With Fence Arm
2 Rated Volatge AC90V~AC264V,DC24V,50/60HZ
3 Speed Time 0.3s,0.6s,0.9s,2s,4s,6s
4 Motor Power 50W,max 100W
5 Boom Length 2meter to 6meter(max)
6 Working Temperature -40℃~85℃
7 Housing Size 342*312*959*2mm(L*W*H*TH)
8 Lifetime >10 million times or 10 years
9 MTTR <0.5hour
10 MTBF >5 million times
11 Protection Grade IP68
12 Remote Controll Distance ≤100 meter
13 Motor Speed 3000 r/min
14 Relative Humidity ≤90%
15 Running Noise <50dB
16 Net Weight 42.6KG
17 Application Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Commercial Premises, Apartment Block Access





Barrier Gate Controller

DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55
PMSM 24V Motor Automated Boom Barrier Gate For Toll Barrier Gate System 2

















































































































Advanced Functions:



  1. Advanced servo control system, high speed and precise.
  2. Low-power servo motor, truly maintenance-free, high durability and energy saving.
  3. Zero speed (0 rpm) constant torque output, no need worry about external force to lever the boom.
  4. ​No position sensor, each stop with the same accuracy. Pair using is fully synchronized.
  5. ​No anti-shock rubber, no impact, no bounce, free adjustment.
  6. ​No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).
  7. ​No key-way design, no longer to worry about the gap between the key-way and the key, which is a hidden danger.
  8. ​No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.
