Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-138
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: USD300~400per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
IP54 Automatic Barrier Gate 24V DC Backup Battery Built-in RS 485 |
Motor Rated Power: |
50W,Max 100W |
Voltage: |
AC90V~AC264V,DC24V |
Remote Control Distance: |
<100m |
MTBF: |
>5000,000 Times |
Warranty: |
2 Years |
Name: |
IP54 Automatic Barrier Gate 24V DC Backup Battery Built-in RS 485 |
Motor Rated Power: |
50W,Max 100W |
Voltage: |
AC90V~AC264V,DC24V |
Remote Control Distance: |
<100m |
MTBF: |
>5000,000 Times |
Warranty: |
2 Years |

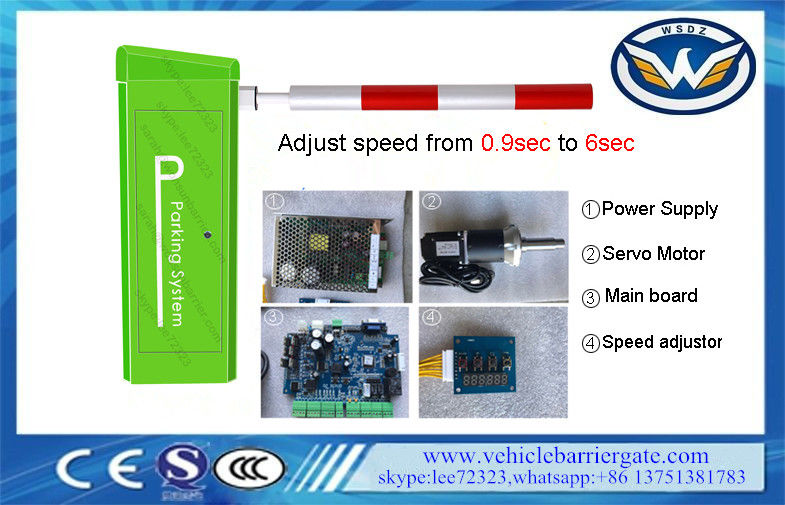

IP54 Automatic Barrier Gate 24V DC Backup Battery Built-in RS 485
Functions & Features
1. The gate automatically open when the power is off, no clutch design, no need human intervention. When the power is on, the gate automatically reset, and the gate returns to being closed, truly unattended, fire safety standards. If there is special need, manual operation is required when the power if off, the operating arm can open and close manually. Can also set up the control board DIP switch, which will ensure the system can be used at any time
2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easily broken, safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed are optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.
5. Speed can be adjusted.
6. Barrier gate up &down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. R&G Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle and the barrier gate.
14. Delay closed selection function.
15. High-sensitivity arm auto reverse function (intensity can be adjusted).
16. Parking system interface.
17.RS485 or RS232 network communication control up &down interface (no need to install communication module)
18. Anti-collision alarm signal interface.
19. Adjustable speed port (from 0.9s to 10 s)
20. High-strength precision cast steel, industry moving parts beyond the industry quality
Controller Data
| Voltage(±10%) | 100-240 volt | 100-240 volt |
| Frequency(Hz) | 50-60 | 50-60 |
| Max Power Consumption(watt) | 8 | 8 |
| Fuse | F5AH | F5AH |
| Control Voltage | 24V DC/max.3000mA | 24V DC/max.3000mA |
| Input-end Number | 8 | 8 |
| Open Collector Output Number | 2 | 2 |
| Zero Level Reversal Relay Number | 3 | 3 |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Protection System(IP) | 20 | 20 |
| Weight(gram) | 450gram | 450gram |
| Dimension | mm(L-W-H) | 158*126*55 |
Parameter of barrier gate
| DZ-138 barrier gate | V06T | V09T |
| Max Boom Length and Diameter | 2500mm, Ф75mm | 3000mm, Ф75mm |
| Open/Close Time | 0.6sec | 0.9sec,2.5sec,4.5sec |
| Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Power Consumption | max.150W | 100w |
| Machine Case | Varnished 2.0mm steel plate | Varnished 2.0mm steel plate |
| Machine Case Size(W*D*H) | 342*312*959mm | 342*312*959mm |
| Net Weight | 43kg | 42.6kg |
| Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Driving Method | Servo motor | Servo motor |
| Protection System(IP) | 54 | 54 |
Packing list:
| Title | Specification | Qty | Unit | Note |
| Barrier gate boom | 1 | Piece | ||
| Machine case press board | 2 | piece | For fixing case | |
| Expansion bolt | M16X150 | 4 | set | For fixing case |
| Supporting pole | 1 | piece | Optional part | |
| Expansion bolt | M8 | 4 | unit | For fixing boom |
| Boom fixed screws | M12*70 | 2 | unit | |
| Case Key | 2 | unit | ||
| Balance spring | 1 | unit | For spare usage | |
| Remote controller | 2 | unit | ||
| Machine control | 1 | unit | Optional | |
| Instruction | 1 | piece |
After-sale service
1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of complying with the operating instruction, without the unauthorized maintenance of the parts and the machine have no obvious mechanical damage, we will provide a quality assurance for the barrier gate product from the date of use for a period of two years or from the date of shipment up to three years including all mechanical and electronic components other than special consumables.
2.Lifetime charged servicing is offered.
3.Technology servicing is supplied.
*The following situations are charged for servicing (or replacement):
1.Broken by wrong installation;
2.Broken by improper voltage;
3.The surfaces of the system destroyed by wrong installation or use.
4.Broken by natural disaster.
5.Overdue.
6.Servicing items out of the promises.
