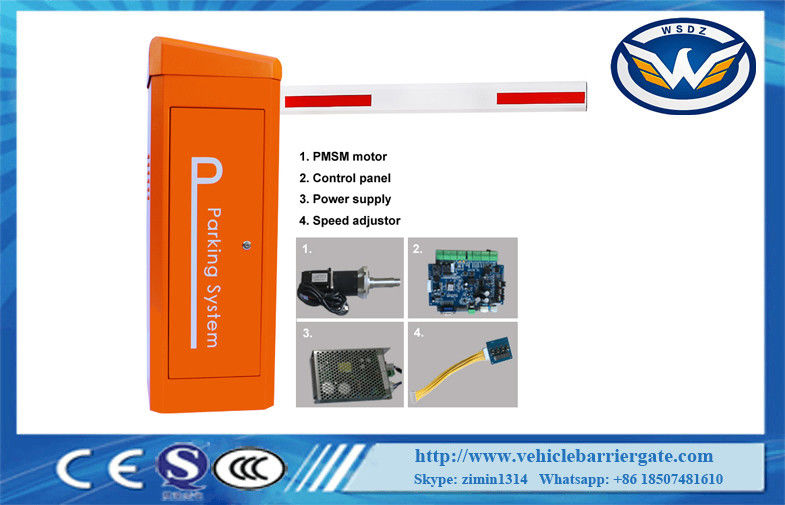

Remote Control Adjustable IP65 24V Vehicle Barrier Gate With PMSM Motor

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

security barriers and gates

,

PMSM Motor Vehicle Barrier Gate

Operation Time:
0.3,0.6,0.9,2,4sec
Working Environment Temperature:
-40 ℃ ~ 85 ℃
Rated Voltage::
AC100V ~ AC264V, DC24V
Material:
2.00mm Cold Roll Plate Or Galvanized Plate
Lifetime::
More Than 10 Million Or 10 Years
Product Name:
Run Speed Adjustable IP65 24V DC Motor PMSM Motor Vehicle Barrier Gate
Operation Time:
0.3,0.6,0.9,2,4sec
Working Environment Temperature:
-40 ℃ ~ 85 ℃
Rated Voltage::
AC100V ~ AC264V, DC24V
Material:
2.00mm Cold Roll Plate Or Galvanized Plate
Lifetime::
More Than 10 Million Or 10 Years
Product Name:
Run Speed Adjustable IP65 24V DC Motor PMSM Motor Vehicle Barrier Gate
Description
Remote Control Adjustable IP65 24V Vehicle Barrier Gate With PMSM Motor

Run Speed Adjustable IP65 24V DC Motor PMSM Motor Vehicle Barrier Gate


Technical data:



arm length: 2000mm-6000mm
opening and closing time: ≤ 0.6s, 0.9s, 2s, 4s
Rated voltage: AC100V ~ AC264V, DC24V
Frequency: 50Hz ~ 60Hz
Motor rated power: 50W, the maximum power of 100W
Working environment temperature: -40 ℃ ~ 75 ℃
Power: standby ≤ 8W, run ≤ 100W
Dimensions (W * D * H): 342 * 312 * 959mm
Lifetime: more than 10 million or 10 years
MTTR: <0.5 hours
MTBF: > 5 million times
Protection degree: IP65
Relative humidity: ≤ 90%
Motor no-load speed: 3000 r / min
Remote control distance: ≤ 100 meters
Longest ARM length: 6 meters
Output torque: 0.86N.M * 140 = 120N.M.
running noise: < 50dB
Barrier N.W 42.6kg
Machine core N.W 22.1kg
Surface treatment Outdoor metal powder, electrostatic spraying




Vehicle Barrier Gate Functions& Features:



1: Arm will automatically open when power off, no clutch design

When power on, barrier will automatically reset, restore to close state. If you have special need that manual intervention, it can

be set up easily, you can gently rotate poles to manual Open / close boom without open the housing by using

adjust the control board

2: a variety of input and output modes can be selected, often open and close can be selected.

3: rod angle can be adjusted from 55~90 degrees, 10 degree resolution.

4: Speed can be adjusted, 0.9s to 6s

5:all kinds of state signal output.

6: barrier gate running state OK signal output.

7: alarm signal output.

8: traffic lights signal relay output.

9: external Vehicle detection signal, infrared sensor signal.

10: AC90V~AC264V50/60Hz, the global universal voltage standard. Also available

24V battery power supply.(No mains place to pick up solar energy,wind energy to recharge battery)

11: the running noise is less than 60dB.

12: Power consumption: 50W, maximum power 100W.

13:It is also a simple matter to change the handing on-site from right-Hand to left-Hand.

14: automatically detect whether the balance spring fatigue or damage, if the spring

fatigue tips to adjust, if you can not adjust the spring, replace the spring is very easy,

no need to use tools, hand can be replaced.

15: remote control open / close and car park system control open / close, separate

input, respectively, the number of corresponding statistics.

16: Inbuilt  RS485 connected to PC of the parking system.





Operation Time and Boom Length Configuration Parameter

Remote Control Adjustable IP65 24V Vehicle Barrier Gate With PMSM Motor 0
