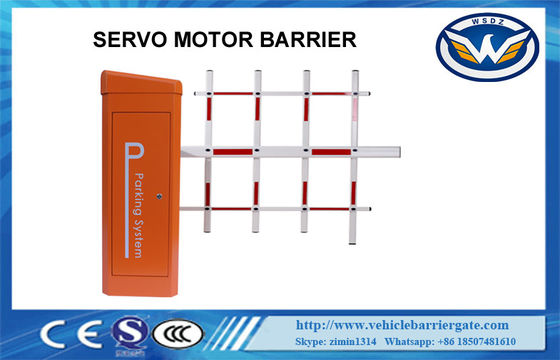

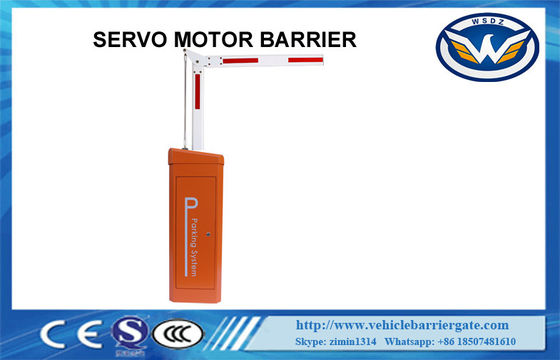

High Speed Toll Automatic Barrier Gate Servo 24V DC Motor long Lifetime

High Speed Toll Automatic Barrier Gate Servo 24V DC Motor long Lifetime

Data sheet:



Function Description:

1.When Power off, gate automatically open, no clutch design, no need human intervention. When power
on, gate automatically reset,
restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual
operation is required when
power off . Operating arm open and close by hand also can be realized by setting up control board DIP
switch, which ensure that the system can be used at any time.

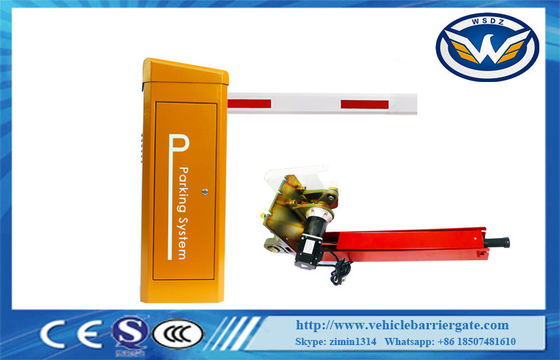

2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,
safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator
through the triple push button,
software or remote control to issue a gate arm up, the gate will give priority to the implementation of the
opening action.
