DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE/SGS

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD225

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

automatic car park barrier

,

parking lot barriers

Product Name:
DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers
Color:
Orange,Golden,Gray-black,Customized
Material:
2.0mm Cold Roll Steel Sheet
Opeartion Time:
0.6S,0.9S,4S,adjustable
Arm Type:
Stright Arm,fence Arm,folding Arm
Rating Voltage:
AC90V~AC264V,DC24V,solar Power,wind Power
Gross Weight:
55KGS
Protection Grade:
IP54
Size:
352*312*959mm
Keywords:
DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers
Product Name:
DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers
Color:
Orange,Golden,Gray-black,Customized
Material:
2.0mm Cold Roll Steel Sheet
Opeartion Time:
0.6S,0.9S,4S,adjustable
Arm Type:
Stright Arm,fence Arm,folding Arm
Rating Voltage:
AC90V~AC264V,DC24V,solar Power,wind Power
Gross Weight:
55KGS
Protection Grade:
IP54
Size:
352*312*959mm
Keywords:
DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers
Description
DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers
DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers

Product Details

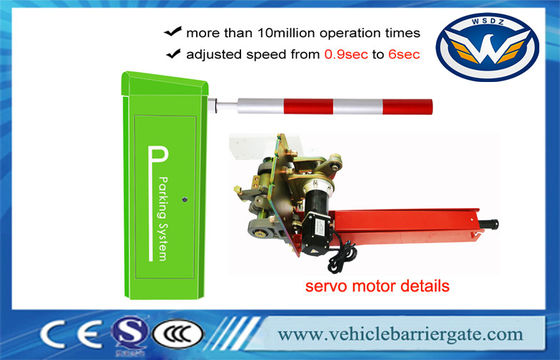

DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers 0


Technical Specifications


Name
DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers 1DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers 1DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers 1DC 24V Servo Barrier Gate Encoder Controlled Car Parking Barriers
Model DZ-138
Size 352*312*959mm
Rating Voltage AC90V~AC264V,DC24V,solar power,wind power
Color yellow,orange,blue,red,black,customized
Motor Power 100W
Speed Option 0.6S,0.9S,4S,adjustable
Material 2.0mm galvanized plate or cold roll plate with epoxy paint
Weight 55 KG
Operation Testing More than 10 million times
Arm Option

Straight arm, 1-6 m for option, 45*80mm or 45*100mm

Folding arm, 1-4.5 m for option, 90 degree or 180 degree

Fence arm, 1-5m for option, two fence or three fence

Working Temperature -45°C — +85°C
Remote Control Distance 100meters
Application Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center







Functions&Features



1. Manual release device to operate the barrier when power failure

2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility

4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module is compatible

8. Traffic light interface

9. Infrared Photocells (optional)

10. Support the external and internal Vehicle Loop Detector (optional)







Packing&Shiping



use strong carton case with air bubble filled inside to protect products and save your cost.

shipped in 3-7days after payment





Packing List



Items quantity items quantity
Paint-coated case 1 motor 1
Transmission 1 limit switch 1
Barrier arm 1 capacitor 1
Spring 1 circuit board 1
Remote control device 2 console control device 1
Installation kit 1
