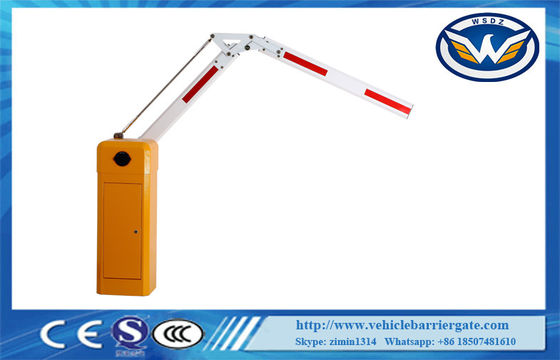

Auto Car parking gate barrier System , 60HZ / 50HZ Boom Barrier Gate RS485

Name: Auto Car parking gate barrier System , 60HZ / 50HZ Boom Barrier Gate RS485
Brand: Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd
SKU: WSTP-115
Price: 355.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-115

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram, Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      automatic car park barrier, car parking barriers


Product Name:	Auto Gate Barrier Car Parking System RS485 Car Park Barriers	Arm Type:	Straight Articulated, Fence
Arm Material::	Aluminum Alloy	Frequency::	60HZ/50HZ
Motor Power::	120W	Working Temperature::	-40°to 75°

Product Name:	Auto Gate Barrier Car Parking System RS485 Car Park Barriers
Arm Type:	Straight Articulated, Fence
Arm Material::	Aluminum Alloy
Frequency::	60HZ/50HZ
Motor Power::	120W
Working Temperature::	-40°to 75°

Description

Auto Car parking gate barrier System , 60HZ / 50HZ Boom Barrier Gate RS485

Auto Car parking gate barrier System , 60HZ / 50HZ Boom Barrier Gate RS485

Why WONSUN RS485 Car Park Barriers?

1. One year warranty.
2. Lifetime charged service.
3. OEM/ODM: Customized service accroding to your requirements.
4. Technical support and nice after-sales service.
5. Provide one-stop solution.
6. provides timely email, phone and onsite support.

Technical details:

Model	WSTP-115B
Working Temperature	-40℃~+75℃
Voltage	220V±10%, 110V±10%, 50/60HZ
Rated power	80W
Relative humidity	≤90%
Remote control distance	≥30m
Net weight	50kgs
Speed	1S,1.8S, 3S, 6S

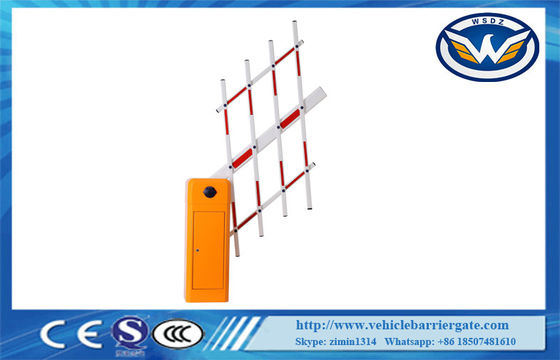

Max boom length	6 meters(straight boom) 4.5 meters(2 fence boom) 4 meters(3 fence boom)

Functions&Features:

AC MOTOR-The Drive Unit

1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free
2 Machine core can automatically warming when the outside temperature is below 0
3 Die-casting aluminum alloy machine core and advanced double-stage driving motor, solve the problem of block up
4 Motor cooling: Forced ventilation with fan

Compressed Balance Spring

Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidents caused by tension spring

Auto Car parking gate barrier System , 60HZ / 50HZ Boom Barrier Gate RS485 1

Liberate Cushion

Absorb vibration during the beam rises and falls, which keeps barrier run smoothly and reduce the impact on mechanism core

Photoelectronic Limit Switch

Multiple protection mechanism: photoelectric limit, motor sensor memory limit, loop detector, air pressure wave switch, infrared photocell ensure the barrier gate operate accurately and safely

Auto Car parking gate barrier System , 60HZ / 50HZ Boom Barrier Gate RS485 3

Arm Auto Reverse

Built in smart collision detection technology allows arm to auto reverse when hit on obstacles during closing. Prevent futher damage on vehicle

Swing Out Mechanism
Arm swing out when hit directly by vehicle (only 1second model ) to avoid further damage on the vehicle

Auto Car parking gate barrier System , 60HZ / 50HZ Boom Barrier Gate RS485 5

Clutch Device

Clutch key can be unlocked to the clutch when power off, conveniently raise the arm without removing the top cover or body housing

Remote Control

Remote control antenna works with remote control push button and remote control units, easily control arm to rise and fall

Auto Car parking gate barrier System , 60HZ / 50HZ Boom Barrier Gate RS485 7

Contact information:

If any question, please contact Keira freely!

Email: keira@wonsunbarroer.com

Skype: zimin1314

Whatsapp: +86 18507481610
