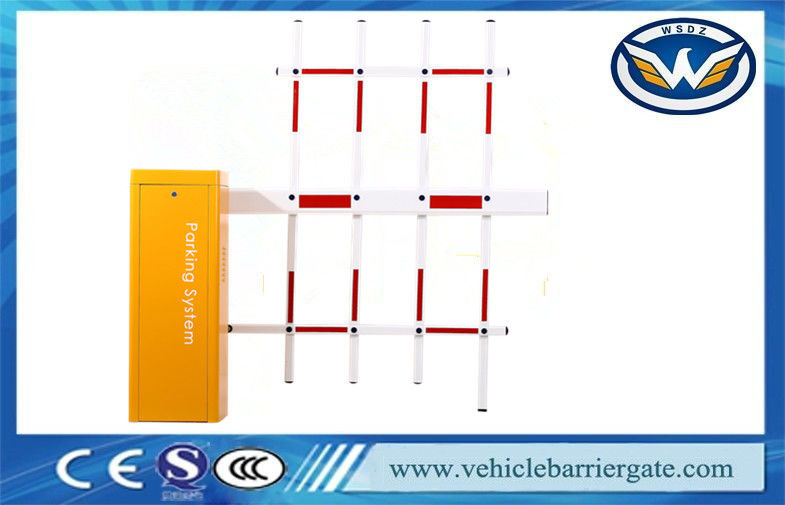

OEM Push Button vehicle Parking Barrier Gate 3 Fence Folding Arm

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-115

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD+260~300 per unit

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

Push Button Parking Barrier Gate

,

Folding Arm Parking Barrier Gate

,

vehicle Parking Barrier Gate

Name:
OEM Push Button Parking Barrier Gate 3 Fence Folding Arm With Remote Control
Operation Time:
1.8s.3s.6s
Voltage:
220V±10%, 110V±10%, 50/60HZ
Packaging Details:
Carton, Wooden Box
Material Of Housing::
Cold Rolled Steel
COM Interface:
RS485
Boom:
Straight
Operation:
Remote Control/Push Butoon
Name:
OEM Push Button Parking Barrier Gate 3 Fence Folding Arm With Remote Control
Operation Time:
1.8s.3s.6s
Voltage:
220V±10%, 110V±10%, 50/60HZ
Packaging Details:
Carton, Wooden Box
Material Of Housing::
Cold Rolled Steel
COM Interface:
RS485
Boom:
Straight
Operation:
Remote Control/Push Butoon
Description
OEM Push Button vehicle Parking Barrier Gate 3 Fence Folding Arm

OEM Push Button vehicle Parking Barrier Gate 3 Fence Folding Arm





Parking Barrier Gate
Parking Barrier Gate Torque motor, steady, low noise, free maintenance
100% duty cycle, heavy-duty
Automatic fault-detect

Parking Barrier Gate 5 million MTBF

Intelligent Automatic Parking Barrier Gate provides a secure and convenient solution for stopping unauthorized vehicles or giving access to authorized vehicles at highways, shopping centers, exhibition centers, hospitals, airports, etc.





Parking Barrier Gate Introduction:



The Parking Barrier Gate barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switches (wire control), and traffic lights.

Parking Barrier Gate motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation.

Motor cooling fan to avoid the over-heating possibility

Automatic reversing when the barrier boom meets the obstruction

RS485 Communication Module is compatible

Manual release device to operate the barrier when power failure





Function:



1) By security. The Parking Barrier Gate will automatically go back when meets obstacles during closing.
2)AC motor is more powerful and no maintenance.
3)All the operation processes are soft without any noise and shaking.

4)Arm Swing out function: The Parking Barrier Gate Arm will swing out when hit directly by the vehicle to avoid further damage to the vehicle.

5)Auto reverse function: Built-in smart collision detection technology allows the arm to auto-reverse when hit with an obstacle during the closing to prevent further scratches or dents on the vehicle. The optional photo beam allows the arm to auto-reverse earlier before hitting the vehicle. Optional rubber lining to protect the vehicle from further damage.

6)Long remote distance: Increase the remote control distance within 100m by building in the receiver at the control board work with learning code remote control which does not need to use a welding gun to program the code, just need to push the button once, then matched.

7)Manual Release: In case of power off, unlock the clutch device and raise the boom manual. By the time the power is supplied, lock the clutch device to make it work normally again.
8)Auto Closing: the Parking Barrier Gate boom can be automatically closed after you set the time on the control board, for example.10s, then after 5s, the boom will automatically close after 5s without using the remote control.


Parking Barrier Gate Arm & Length

Parking Barrier Gate Arm type Max length
Parking Barrier Gate Round arm 4m
Parking Barrier Gate Straight arm 8m
Parking Barrier Gate Telescopic arm 6m
Parking Barrier Gate 2 fence arm 4.5m
Parking Barrier Gate 3 fence arm 4m
Parking Barrier Gate 90-degree folding arm 5m
Parking Barrier Gate 180-degree folding arm 4.5m





OEM Push Button vehicle Parking Barrier Gate 3 Fence Folding Arm 0



What is included in this price?



1 pcs Parking Barrier Gate

1 pcs Parking Barrier Gate arm boom (from 1m to 6m can customized)

1 pcs Parking Barrier Gate control panel(built inside)

2 pcs Parking Barrier Gate remote controllers

1 pcs Parking Barrier Gate manual book





Our Service :



1. Our Factory has 8 years of OEM/ODM experience in the line of barrier gates.
2. Prompt delivery time. Usually, we keep stock of standard models which ensure prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. A trial order is acceptable. Clients can buy samples and test them before bulk ordering.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo, or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
