Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-130
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Automatic Parking Barriers DZ-130 |
Working Temperature: |
-40℃~+75℃ |
Color: |
Yellow, Red, Or Customized |
Arm Option: |
Straight,folding,fencing,flexible |
Model: |
DZ-130 |
Housing Material: |
1.5mm Cold Roller Steel Plate |
Protect Level: |
IP54 |
Remote Control Distance: |
Less Than 30m |
Speeds: |
0.6s,0.8s,1s,1.8s,3s,6s |
OEM Service: |
Support |
Name: |
Automatic Parking Barriers DZ-130 |
Working Temperature: |
-40℃~+75℃ |
Color: |
Yellow, Red, Or Customized |
Arm Option: |
Straight,folding,fencing,flexible |
Model: |
DZ-130 |
Housing Material: |
1.5mm Cold Roller Steel Plate |
Protect Level: |
IP54 |
Remote Control Distance: |
Less Than 30m |
Speeds: |
0.6s,0.8s,1s,1.8s,3s,6s |
OEM Service: |
Support |
IP54 Remote Control Vehicle Barrier Gate / Automatic Parking Barriers OEM Service
Our Advantages:
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.

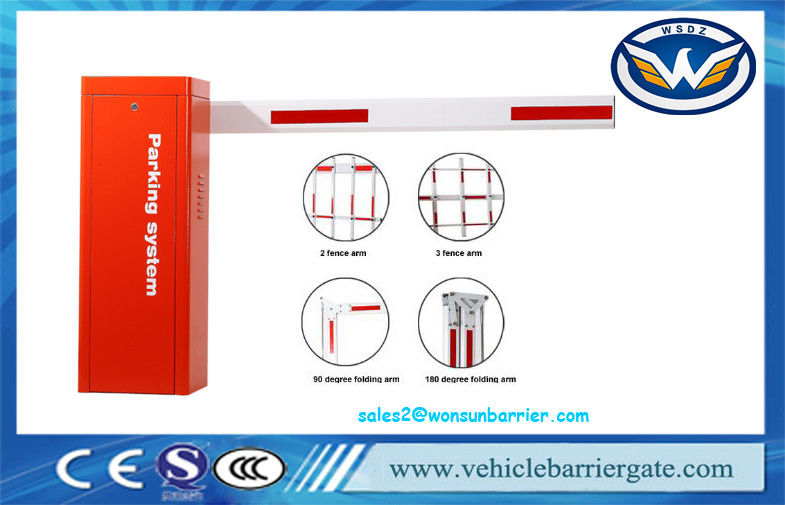

DZ-130 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 1.5mm cold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle. Here introduce more details as below:
Specifiction
| Model | DZ-130 |
| Working Temperature | -40℃~+75℃ |
| Voltage | 220V±10%, 110V±10%, 50/60HZ |
| Rated power | 80W |
| Relative humidity | ≤90% |
| Remote control distance | ≥30m |
| Net weight | 50kgs |
| Speed | 1.8S,3S, 6S |
| Max boom length | 6 meters |
| Motor Rotational speed | 1400rmp |
| Protection Degree | IP44 |
Features:
1. This barrier gate is widely used for the facilities of parking lots, traffic or toll system, we don’t suggest for high way and other heavy duty application.
2. Arms can be chosen from 2 meters to 6 meters.
3. Manual handle can be used to open the arm in case power off.
4. All the process is soft without any noise and shaking.
5. This barrier gate has many input terminals for photocell, Airwave switch, loop detector, LED light bar, toll gate system and output terminals for flashing light.
PACKING&SHIPPING
We use strong carton case with air bubble filled inside to protect products and save your cost.
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY,Generally 2-5 days for stock. 5-7 days for larger order
Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc.
Q: How is your payment terms?
A: T/T or Western Union etc.
Q: Do you provide free samples ?
A: No,we don't provide free samples. The MOQ is 1pc.
