Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-131
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Brand Name:: |
WONSUN |
Model Number:: |
DZ-131 |
OEM/ODM:: |
Supported |
Color:: |
Red, Orange,blue, Customized |
Arm Type:: |
Straight, Folding, Fencing |
Housing Size:: |
320 * 280 * 935 Mm |
Speed:: |
0.6s,1s, 1.8s,3s,6s |
Boom Length:: |
Max 6 Meters |
Waterproof Rate:: |
IP44 |
Brand Name:: |
WONSUN |
Model Number:: |
DZ-131 |
OEM/ODM:: |
Supported |
Color:: |
Red, Orange,blue, Customized |
Arm Type:: |
Straight, Folding, Fencing |
Housing Size:: |
320 * 280 * 935 Mm |
Speed:: |
0.6s,1s, 1.8s,3s,6s |
Boom Length:: |
Max 6 Meters |
Waterproof Rate:: |
IP44 |

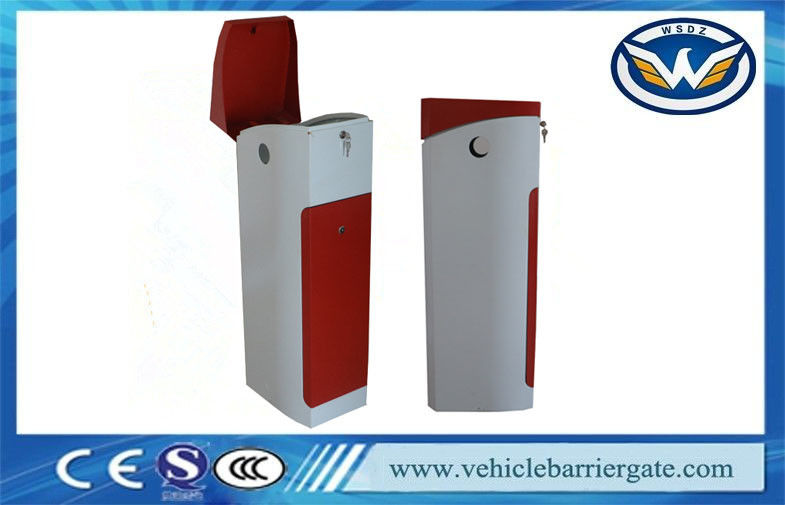

Wonsun Motor integration harga barrier gate parkir for parking system
Boom barrier gate is very important for an automatic car parking management system and other traffic project; this equipment widely uses for block the road, manage the access of the gate for all vehicles such as car, truck, bus even motorbike. Everyday, you can easy find barrier gate at everywhere, airport, highway, commercial building, shopping mall, factory, hospital, and so on.
In addition, all parking system integration and/or installation company can more easily understand the important value of barrier gate for parking lots project. So how to choose a good quality and high cost-effective barrier gate is an important lesson for their manager and engineers.
| Model | DZ-131 |
| Size | 320 * 280 * 935 mm |
| Power supply | 220V ± 10% AC, 50 / 60Hz |
| speed | 0.6s / 1s/1.8s / 3s/ 6s. optional |
| Boom length | Max 6 meters |
| Net weight | 50Kg |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Application | Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Aparment Block |
| Advantages |
1.Professional manufacture with 8 years 2.OEM/ODM service 3.Short lead time 4.The overall design, independent mould 5.Quality gurantee, more durable 6.Better service from professional team |
Our advantages:
100% pure copper motor :more durable ,safety and stable when barrier gate is working .Inside with anti -frozen oil ,which can make barrier runs normally in low temperature.
Motor cooling fan : it will operate automatically,when barrier works in high temperature or motor works in heavy duty .
AC motor : its strong and powerful ,can easily lift up even with additional signage installed no the barrier arm,AC motor is maintenance free ,as there is no carbon in the AC motor ,built in intelligent fan cool the motor during heavy usage.
Photo electrical limit switch : photo electrical limit switch uses smart motor counter to auto detect open/close position for higher accuracy and better stability. No more mechanical wear and tear which causes the arm to tilts up or down.
Arm auto reverse : built in smart collision detection technology allows arm to auto reverse when hit with an obstacle during closing to prevent further scratches & dents on the vehicle .Optional photo beam allows arm to auto reverse earlier before hitting the vehicle . Optional photo beam allows arm to auto reverse earlier before hitting the vehicle.Optional rubber lining to protect the vehicle from further damages.
Clutch device : wonsun clutch device can be conveniently unlocked to manually open or close the arm without removing the whole top cover or body housing . Resulting in hassle free operation and all components inside the barrier body are safe from danger and vandals.
Sturdy housing : housing is made with 2.0 mm cold rolled steel sheet for extra durability to support longer arm. Housing body is coated with epoxy paint for waterproof protection
Service item:
1.One year's free servicing is supplied(not including the arm);
2.Lifetime charged servicing is offered;
3.Technology servicing is supplied;
The following situations are charged for servicing(or changing);
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the system destroyed by wrong installation or use
4. Broken by natural disaster
5. Overdue
6. Servicing items out of our promises
