Motorized Vehicle Access DZ -130 car park barriers with straight arm

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZ-130

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

car parking management system

,

IP44 car park barriers

Brand Name::
WONSUN
Model Number::
DZ-130
OEM/ODM::
Supported
Housing Size::
325*280*936mm
Material::
2mm Cold Roll Plate
Color::
Red, Yellow, Blue, Customized
Arm Type::
Straight, Folding, Fencing
Boom Length::
Max 6 Meters
Speed::
1.8S 3S 6S
Waterproof Rate::
IP44
Brand Name::
WONSUN
Model Number::
DZ-130
OEM/ODM::
Supported
Housing Size::
325*280*936mm
Material::
2mm Cold Roll Plate
Color::
Red, Yellow, Blue, Customized
Arm Type::
Straight, Folding, Fencing
Boom Length::
Max 6 Meters
Speed::
1.8S 3S 6S
Waterproof Rate::
IP44
Description

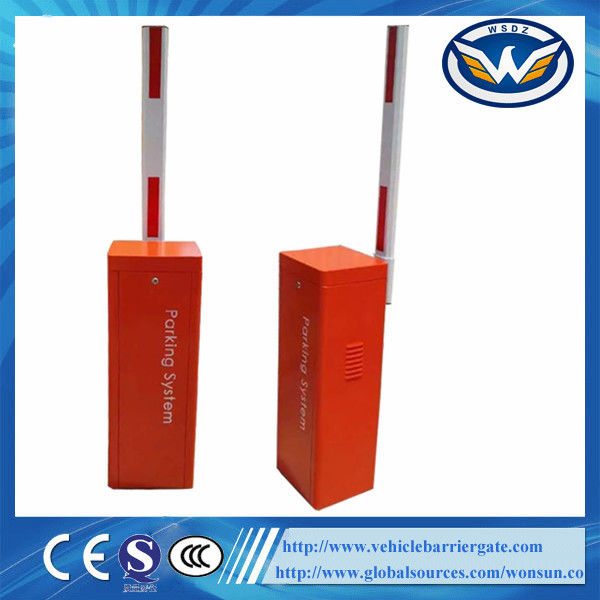

Motorized Vehicle Access DZ -130 car park barriers with straight arm

WONSUN Vehicle Access DZ-130 barrier gate car parking system with straight arm



Motorized Vehicle Access DZ -130 car park barriers with straight arm 0



Product parameters:



Model: DZ-130
Voltage: AC 220V/110V±10%, 50/60HZ
Size: 1000*352*302mm
Operation time: 3s,6s. Customized
Rated Power: 100W/120W
Working Temperature: -40℃~+75℃
Remote Control Distance: ≥30M
Spring And Bearing: Heat Treatment: more durable, more than 5 million times through operation testing
Material:

Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading
Packing Size:

1020*375*467mm , with seven layers carton case

inside with air bubble film for protection
Delivery:

By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap,

suggested



Highlights:



Motorized Vehicle Access DZ -130 car park barriers with straight arm 1



Motorized Vehicle Access DZ -130 car park barriers with straight arm 2



 Common malfunctions and solutions:



1. Motor works but there is no reacion on the arm;
a. Please check whether the clutch device is locked or not.


2.The boom could not rise up or fall down to the end;
a. When change a long boom to a short one, please readjust it ,
b. The sensor dose not plug well, please check it.
c. The "Speed adjust switch" is wrong adjust, please readjust it.


3. There is no reaction when pressing the remote controller buttons,
a. Please check whether the power is supplied to the barrier gate or not,
b. Please check whether the fuse is burnt out or not
c.Please check whether the code both in the remote controller and the controller board are accordant or not



HOW TO USE?



• Please select the right type of the barrier gates according to the specifications of the place.Fix the barrier gate case board with expansion bolts.


• Fix the boom to the boom tray with the boom press board, then cover the boom capuche with the screws.


• After that ,fix the cover of the boom to the splint and fasten them with four screws of 4*16, and slip the cover tap with the cover by two 3*10 screws.


• Unlock the clutch device with the clutch key clockwise .Move the boom to the horizontal and vertical manually to make sure there is no obstruction.Then turn on the power .
