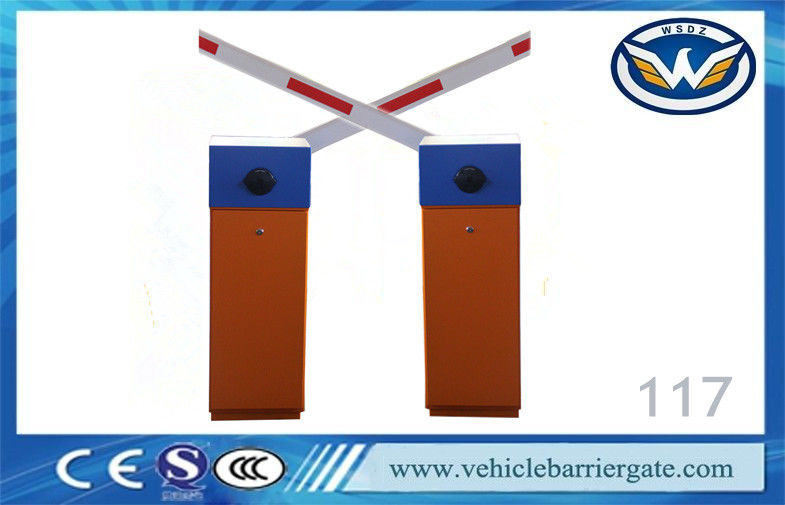

AC220/110V traffic entrance automatic barrier gate for car Parking system

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-117

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

car parking management system

,

security barriers and gates

,

AC220V automatic barrier gate

Name:
Vehicle Remote Control Barrier Gate For Car Parking System
Machine Core:
First Generation
Arm Type:
Staight , 90.180.fence,Flexible
Speed:
0.6s ,1s, 1.8s, 3s, 6s. Customized
Material:
Galvanized Plate Or Cold Roll Plate, 2mm Thickness Sheet
Voltage:
AC220/110V,50/60HZ
Net Weight:
60 Kg
Protection Grade:
Ip54
Keywords:
Vehicle Remote Control Barrier Gate For Car Parking System
Remote Control:
80-120M
Name:
Vehicle Remote Control Barrier Gate For Car Parking System
Machine Core:
First Generation
Arm Type:
Staight , 90.180.fence,Flexible
Speed:
0.6s ,1s, 1.8s, 3s, 6s. Customized
Material:
Galvanized Plate Or Cold Roll Plate, 2mm Thickness Sheet
Voltage:
AC220/110V,50/60HZ
Net Weight:
60 Kg
Protection Grade:
Ip54
Keywords:
Vehicle Remote Control Barrier Gate For Car Parking System
Remote Control:
80-120M
Description
AC220/110V traffic entrance automatic barrier gate for car Parking system


  vehicle Remote Control Barrier Gate for car Parking system




Model WSTP-117
Size 330*300*950 mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Working Temperature -40℃~+85℃
Humidity ≤90%
Max length 6m
Boom type Straight boom ,90°folding boom ,180° folding boom ,two fence boom ,three fence boom,flexible
Material Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading
Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance Usually 80-120 meters, if there is less obstacles, even 150 meters or more
Packing Size

1100*430*455 mm

with seven layers carton case,inside with air bubble film for protection

Machine core First generation
Delivery By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested
How it works: Turbine worm rotation
Working long 10 years
OEM/ODM service acceptable


Functions & Features


1) Manual release
2) Machine core with compression spring,effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor,prescision and good at thermal riadiating
4) Motor cooling fan,sloving the probelm of heat-protection
5) Double safety limit switches(photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anto-bumping function(optional)
9) Suppot the external and internal VEHICLE LOOP DETECTOR(optional)
10) Traffic light interface
11) Wire control(switch signal)/ Remotte control(418MHZ)
12) RS485 communication module(optional)


OPTIONAL ACCESSORIES


Full spare parts are manufactured by ourselves that can make your barrier gate up deliver and running in shortest tire possible.



Control panel , limit switch ,loop detector ,boom holder



Application





Its suitable for indoor as well as outdoor parking area . It can also be customized to be used together with any auto-pay ticketing parking or access control system,such as :airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies, Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Highway, Hotel, Community,Bus Station,Commercial Premises, Apartment Block ,etc



Poles and speeds



description Max boom length Action time (s) boom height ( m)
Slow speed ,straight L ≤ 6 m 6 0.83
Medium speed ,straight L ≤ 4.5 m 3 0.83
Quick speed,straight L ≤ 3 m 1-2 0.83
Fastest speed ,straight L ≤ 2.5 m 0.6-0.8 0.83
90° Folding boom L ≤ 5 m 0.6-6 0.83
180° Folding boom L ≤ 5 m 0.6-6 0.83
fence boom (2/3) L ≤ 4.5 m 6 0.9/1.5

   ps: the Boom Height means height from the boom holding point to the ground.



Good factory supply orange and blue automatic gate opener reviews for car parkingGood factory supply orange and blue automatic gate opener reviews for car parking

Our Services





HOW TO USE ?

· Please select the right type of the barrier gates according to the specifications of the place.Fix the barrier gate case board with expansion bolts.

· Fix the boom to the boom tray with the boom press board, then cover the boom capuche with the screws.

· After that ,fix the cover of the boom to the splint and fasten them with four screws of 4*16, and slip the cover tap with the cover by two 3*10 screws.

· Unlock the clutch device with the clutch key clockwise .Move the boom to the horizontal and vertical manually to make sure there is no obstruction.Then turn on the power .



HOW WE SERVE ?

-Any inquiries will be replied within 12hours.

-Detailed installation manual and wiring diagram to make everything be easy

-OEM/ODM available:

OEM/ODM,any of your customized products (Brand, Logo, Label available)we can help you to design and put into production

Boom can be LED arm, when the boom open, the light will turn Green, when the boom close, the light will turn Red.(or Steady- blink-steady).

Housing design and color can be customized.

All neutral packing, we can print your logo at the carton.

There is no any Chinese stickers or company information at the product. but we can put yours on if you want.

Good factory supply orange and blue automatic gate opener reviews for car parking-Faster delivery :

As for usual order,it is 3-5 days after received your payment with 50 sets order quantity.

For OED order,it is 7-15 days after received your payment with 30 sets order quantity.

-Payment:

You can pay for the order via : T/T,Western union ,Paypal ,Money gram ,L/C,Credit card ,Cash .

-Shipping:

We have strong cooperation with DHL ,TNT ,UPS ,FEDEX .EMS ,China Air Post. You can also choose your own shipping forwarder.

-After-sale service :

All products will have been strictly quality checked in house before packing .

All products will be well packed before shipping .

Any suggestions,welcome contact at any time .

- More Full HD pics of barrier gates ,welcome contact us







The explaining authority of this product instruction and service article belongs to the production factory.
