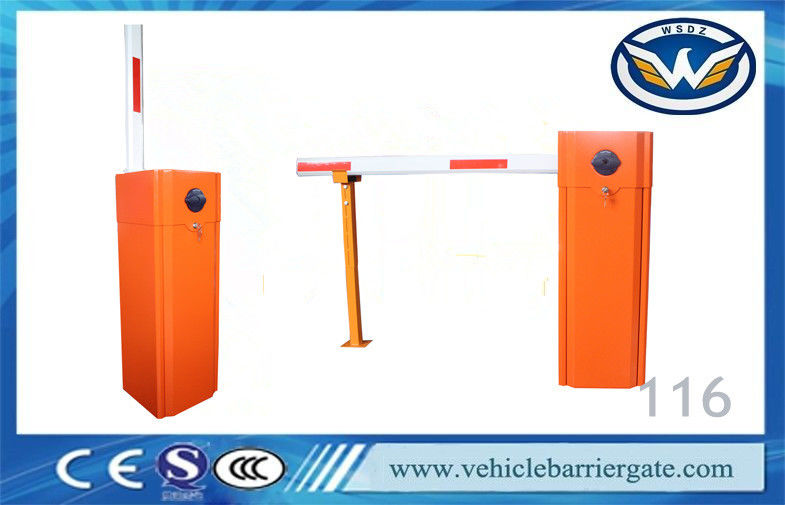

Orange And Blue Automatic Vehicle Barrier Gate Opener Remote Control 50/60hz

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE/ISO/SGS

Model Number: WSTP-116

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

car parking management system

,

security barriers and gates

,

Orange Blue Vehicle Barrier Gate

Name:
Factory Price Orange And Blue Automatic Gate Opener With Remote Control
Material:
2mm Cold Rolled Steel Plate
Voltage:
AC220/110V,50/60HZ
Oem Service:
Acceptable
Operation Time:
0.6,1.8s,3s,6s
Net Weight:
60KG
Protection Grade:
IP54
Keywords:
Parking Barrier Gates
Color:
Orange, Blue, Customized
One More Remote:
Optional
Name:
Factory Price Orange And Blue Automatic Gate Opener With Remote Control
Material:
2mm Cold Rolled Steel Plate
Voltage:
AC220/110V,50/60HZ
Oem Service:
Acceptable
Operation Time:
0.6,1.8s,3s,6s
Net Weight:
60KG
Protection Grade:
IP54
Keywords:
Parking Barrier Gates
Color:
Orange, Blue, Customized
One More Remote:
Optional
Description
Orange And Blue Automatic Vehicle Barrier Gate Opener Remote Control 50/60hz

Orange And Blue Automatic Vehicle Barrier Gate Opener Remote Control 50/60hz





HIGHTLIGHTS



High strength 2.0mm cold rolled plate box
Low noise and vibration, high reliability, long life, smooth speed.
Can be equipped with straight rod, folding, fence a variety of gear lever to meet different market needs.
Choose high-quality antifreeze grease, to deal with minus 40 degrees extreme low temperature environment.
Pure copper gear, precision hard tooth surface, small gap, good bite; high hardness, high toughness, durable wear.
Spoke lever with a special type of aluminum, can be affixed with two-color reflective film, can be clearly visible at night.
Manual, automatic selection, equipped with remote control and manual control buttons, remote control, user-friendly operation.
Reserved for a variety of interfaces, external infrared, vehicle detectors and other accessories to meet the security needs.Relaxed to install the location, easy to use with the parking lot

Application :

Its suitable for indoor as well as outdoor parking area . It can also be customized to be used together with any auto-pay ticketing parking or access control system:airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies, Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Highway, Hotel, Community,Bus Station,Commercial Premises, Apartment Block ,etc



Product Description



Model WSTP-116
Size 329*301*954 mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Working Temperature -40℃~+85℃
Humidity ≤90%
Max length 6m
Boom type Straight boom ,90°folding boom ,180° folding boom ,two fence boom ,three fence boom,flexible
Material Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading
Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance Usually 80-120 meters, if there is less obstacles, even 150 meters or more
Packing Size

1100*430*455 mm

with seven layers carton case,inside with air bubble film for protection

Machine core First generation
Delivery By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested
How it works: Turbine worm rotation
Working long around 10 years
OEM/ODM service acceptable

Orange And Blue Automatic Vehicle Barrier Gate Opener Remote Control 50/60hz 0



OPTIONAL ACCESSORIES

Full spare parts are manufactured by ourselves that can make your barrier gate up deliver and running in shortest tire possible.



Control panel , limit switch ,loop detector ,boom holder



HOW TO USE ?

· Please select the right type of the barrier gates according to the specifications of the place.Fix the barrier gate case board with expansion bolts.

· Fix the boom to the boom tray with the boom press board, then cover the boom capuche with the screws.

· After that ,fix the cover of the boom to the splint and fasten them with four screws of 4*16, and slip the cover tap with the cover by two 3*10 screws.

· Unlock the clutch device with the clutch key clockwise .Move the boom to the horizontal and vertical manually to make sure there is no obstruction.Then turn on the power .




HOW WE SERVE ?

-Any inquiries will be replied within 12hours.

-Detailed installation manual and wiring diagram to make everything be easy

-OEM/ODM available:

OEM/ODM,any of your customized products (Brand, Logo, Label available)we can help you to design and put into production

Boom can be LED arm, when the boom open, the light will turn Green, when the boom close, the light will turn Red.(or Steady- blink-steady).

Housing design and color can be customized.

All neutral packing, we can print your logo at the carton.

There is no any Chinese stickers or company information at the product. but we can put yours on if you want.

our recommendation! Parking Entrance And Exit Vehilce Barrier Gate-Faster delivery :

As for usual order,it is 3-5 days after received your payment with 50 sets order quantity.

For OED order,it is 7-15 days after received your payment with 30 sets order quantity.

-Payment:

You can pay for the order via : T/T,Western union ,Paypal ,Money gram ,L/C,Credit card ,Cash .

-Shipping:

We have strong cooperation with DHL ,TNT ,UPS ,FEDEX .EMS ,China Air Post. You can also choose your own shipping forwarder.

-After-sale service :

All products will have been strictly quality checked in house before packing .

All products will be well packed before shipping .

Any suggestions,welcome contact at any time .

- More Full HD pics of barrier gates ,welcome contact us
