|Power Supply::||AC 220±10%, 110±10% 50/60HZ||Working Temperature::||-40°to 75°|
|Material:||2mm Cold Roll Plate Or Galvanized Plate||Color::||Yellow, Orange Customized Optional|
|Name:||High Speed Driveway Gates Automatic Boom Barrier For Access Control System||Motor Power::||120W|
boom barrier gate,
electric boom barrier

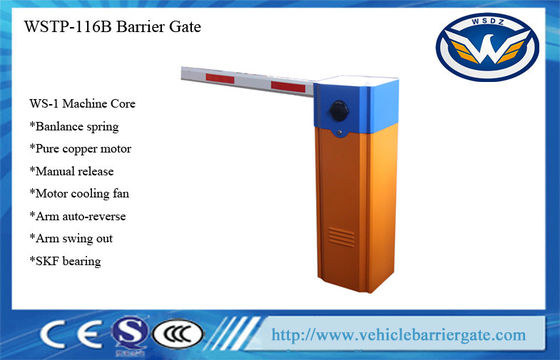

High Speed Driveway Gates Automatic Boom Barrier For Access Control System
Wonsun barrier is esigned using innovative technology and manufactured with precision
machinery toguaarantee satisfaction in quality and reliability for years to come.
Wonsun barrier has been lab tested for more than 5 millions opening / closing and still without any
degrade in performance. No limit switch design minimizes mechanical wear and enchances barrier life time.
WSTP-116B series also offer a complete range of arm ( folding, fence and swing out)
WS-1 Mchine Core Technical Data:
1. Working temperature:-40℃~+75℃
3. Power supply: AC 220V/110V±10%, 50/60HZ
4. Rated power: 120W/100W
5. Motor rotational speed: 1400rpm
6. Protection degree: IP54
7. Remote distance: Around 100m
8. Max boom length: 6m
Size: 335*335*935 mm
Material: Galvanized plate or Cold roll plate, 2.0mm thickness sheet, 3 years without rust, shedding and fading
Spring And Bearing: Heat Treatment: more durable, more than 5 million times through operation testing
Packing Size: 1030*380*450mm , with seven layers carton case
inside with air bubble film for protection
Functions & Features:
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle, Auto-closing
7. Support the INFRARER PHTOCELL for anti-bumping function (optional)
8. Support the external and internal VEHICLE LOOP DETECTOR (optional)
9. Traffic light interface
10. Wire control (switch signal)/ Remote control (418MHZ)
11. RS485 communication module (optional)
Communication with customer:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
That is how we produce this good barrier:
1. 15 types of technical devices for testing,131 levels of precise equipment for maching
2. 400 pcs of accessories are carefully selected,189 processes of assembly
3. 5 steps of quality controls are not absent
Contact Person: Keira
Tel: +86 185 0748 1610
