Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-125
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Alloy Aluminum Telescopic 6m Arm Automatic Boom Barrier With Loop Detector |
Operation Time: |
1.8S,3S, 6S |
Voltage: |
AC 220v/110v |
Protection Degree: |
IP44 |
Rating Power: |
80W |
Name: |
Alloy Aluminum Telescopic 6m Arm Automatic Boom Barrier With Loop Detector |
Operation Time: |
1.8S,3S, 6S |
Voltage: |
AC 220v/110v |
Protection Degree: |
IP44 |
Rating Power: |
80W |

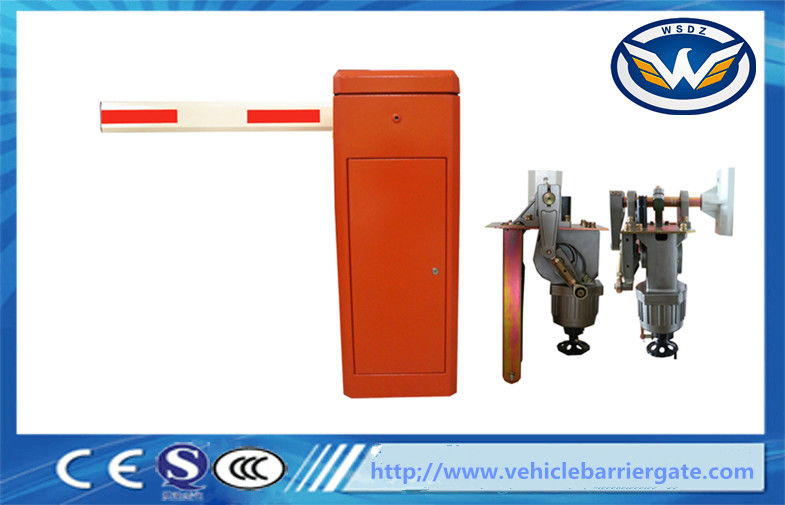

Alloy Aluminum Telescopic 6m Arm Automatic Boom Barrier With Loop Detector
About Arm:
Arm type: Straight, Telescopic 90 or 180-degree Folding or Fence type
Opening/Closing time (Optional): 1-8s (1s, 1.8s, 3s or 6s.8s)
Length of arm (Optional): 1-8m (3m, 4m, 4.5m 6m,8s)
About Housing: 2mm cold rolled steel sheet.size:360*290*1020.can print your logo or any words.
Parameters:
| Item | Alloy Aluminum Telescopic 6m Arm Automatic Boom Barrier With Loop Detector |
| Model | WSTP-125 |
| Brand | WONSUN |
| Size | Barrier Arm Width & Heigth: 10*45 mm & 80*45 mm |
| Net Weight | 70kg |
| Material | Metal Steel |
| Usage | Parking lots/toll gate/high way/goods yard/railway crossing |
| MOQ | 1 Set |
| ODM/OEM | Accepted |
| Shipping Ways | By sea, by air, or by Express (DHL,UPS FEDEX,TNT, etc.) |
| Payment Terms | T/T, Western Union, Money Gram, Paypal or L/C |
| Package | Carton, or according to your requirements |
| Certification | CE, RoHS, IS |
Features:
| Basic Features: |
|
1)By-security. the barrier gate will automatically go back when meet obstacles during closing. 2)AC motor is more powerful and no maintenance. 3)Barrier Boom/arm can be chosen from 2.5 meters to 8 meters, and barrier gate. 4)Closing time is also arranged from 0.6 second to 8 seconds. 5)The barrier gate can be both right-installed and left-installed. 6)All the operation process is soft without any noise and shaking. 7)Infrared photocell interface, loop detector interface and IC system. 8)interface are reserved for the other functions. 9)Green light and red light are used inside for indication the position of the boom |
| Advanced Features: |
|
1)clutch key can be used to open the clutch when power off. 2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather. 3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life. |
Our Service:
1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
