Highway Parking Barrier Gate , LED Flashing Signal Light car park gates

China Highway Parking Barrier Gate , LED Flashing Signal Light car park gates supplier

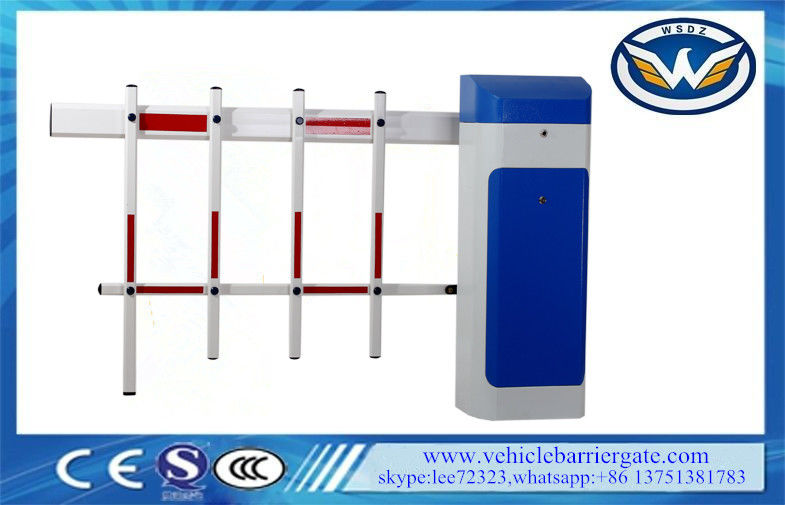

Large Image :  Highway Parking Barrier Gate , LED Flashing Signal Light car park gates

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-135

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: Highway LED Flashing Signal Light Parking Barrier Gate For Toll Station Mode Of Communication: Base RS-485, Rear TCP/IP
Voltage: 220V±10%, 110V±10%, 50/60HZ Protection Degree: IP44
 Rating Power: 80W Net Weight: 50KG


Highway Parking Barrier Gate , LED Flashing Signal Light car park gates


WSTP-135 is our high-end model with LED light, which y.when the arm  down, the color of the light will be red, when the arm up, the color of the light will be green. The design have been becoming well-received by customers from all around the world.and received lots of good feedback, We accept OEM services, we can change the colors according to your requirements, and print the logo at the housing.Welcome you bring your brilliant idea to us.








Open/close time 0.6s/0.8s/1s/1.8s/3s / 6s/8s
Barrier gate life-span >5,000,000 times
Suit application indoor and outdoor parking system
Open/close method by remote control, push key, manual handle
Max length Max. 8m straight arm with rubber bar
Max. 4.5 m folding arm with rubber bar
Max. 4m fence arm with rubber bar
Push Butoon Inclusive of arm and "push button" which opens/closes barrier
Standard quotation include barrier gate body, straight bar, push key control panel, two remote controllers, exclusive of LED light bar, loop detector, boom bracket and anti-collision mechanism (wave pressure sensor, PIR sensor): need to buy separately.
Optional housing color yellow/iron gray (default), red/iron gray, other color for optional
Optional boom arm direction leftward or rightward (fixed after order)
Ground weight 50kg
Warranty 1 year



Functions and Features:


1)The humanized clutch device:in case of power off, unlock the clucth device and raise the boom manually.By the time the power is supplied,lock the clutch device to make it working normally again.

2)Special spring device: Both the compression spring and tension spring can be used in the machione.Using the compression spring can avoid accidents cuased by the tension spring.

3)Three control buttons:for boom raising,falling and pausing.

4)Boom backtrack function: the boom will rise if it hits something when falling.

5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.

6)Both external and internal loop detectors are supported.

7)"OPEN","CLOSE"and"STOP" controlling interfaces

8)RS-485 communication serial interface(Optional)

9)Traffic ligh signal connection device:red light for stop;green light for pass.

10)Remote control and wire control for selection.



Highway Parking Barrier Gate , LED Flashing Signal Light car park gates



Packing list:


1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book



What we provide?


1)24*7 working time, your requirements will be reply within 2 Hrs with English and professional answers.

2)OEM service, customized colors and print logo.

3)Longest waranty time, for machine core, lifetime warranty, for housing, 1 year warranty.

4)Technology servicing is supplied.

5)VIP customers have VIP prices and VIP service.
