|Features:||Heavy Duty, Manual Release, Swing Out, Remote Control||OEM:||Support|
|Name::||Practical Use Straight Arm Traffic Barrier Gate For Vehicle Access Control||Power Supply::||AC 220±10%, 110±10% 50/60HZ|
|Material:||2mm Cold Roll Plate Or Galvanized Plate||Open / Close Time:||0.6S,1S, 1.8s, 3s, 6s|
access control barriers and gates,
parking barrier gates

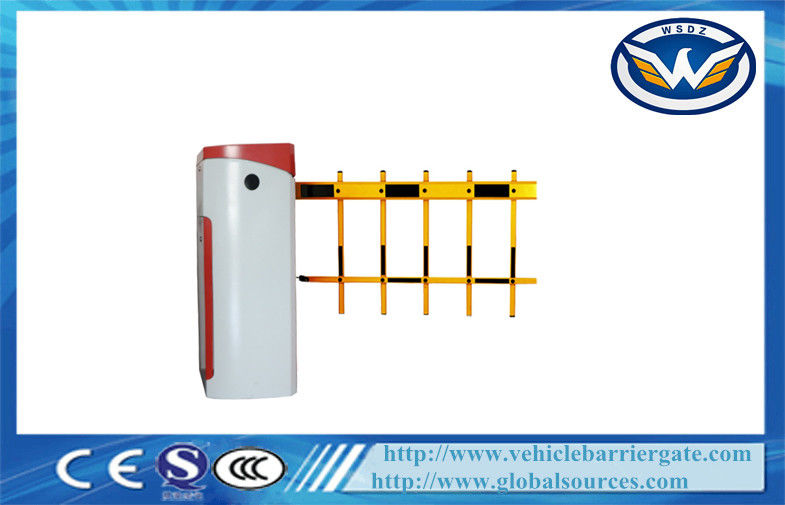

Practical Use Fence Arm parking lot barrier gates For Vehicle Access Control
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Name: Traffic Barrier Gate
Speed:1s,1.8s.3s 6 seconds
Size: 320*280*932 mm
Arm type: Straight arm, folding arm, fence arm, optional
Arm length: Max 6 meter with aluminum alloy
Rating voltage: AC 220/110V±10%, 50/60HZ
|1||Power||220V±10%, 110V±10%, 50/60HZ|
|2||Running Time||0.6s, 1S, 1.8s, 3 S and 6 S|
|3||Motor||AC motor, 80W,|
|5||Relative Humidity||≤95%, No Condensation|
|8||Communication Connection||RS485 Communication|
|9||Boom Type||straight, articulated, fence|
|11||Application||Parking Lots, Toll Gates, Goods Yards, Railway Crossings, Commercial Premises, Aparment Block Access|
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Parking & Shipping:
|Machine core||Good in working||1||Main part|
|Barrier arm||Straight, folding or fence arm||1||Optional|
|Boom press board||1||Fixing the boom|
|Self-tapoing screw||ST4*16||Fixing the boom|
|Self-tapoing screw||st3*10||4||Fixing the boom|
|Supporting pole||1||Fupporting the boom|
|Expanion bolt||M16*150||4||Fixing the case|
|Hexagonal Inner Screw||M8*35||4||fixing the case|
|Clutch key||1||clutch device|
|Case Key||2||for case and cover locking|
|Balance spring||According to length of barrier arm||1||for sapre usage|
|Remote emitter||less than 30m is available||1||For remote control|
|Remote conrol handles||less than 30m is available||2||For remote control|
|Instruction||in English||1||For reference|
|Cover head||1||3 years without fading|
|Expanion nut||M8||4||Fixing the supporting pole
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome
call me! We will provide our best professional service for you
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
* We will give you bill of loading after gate barrier depart our shipping port;
* Our shipping agent will contact you when gate barrier arrival
