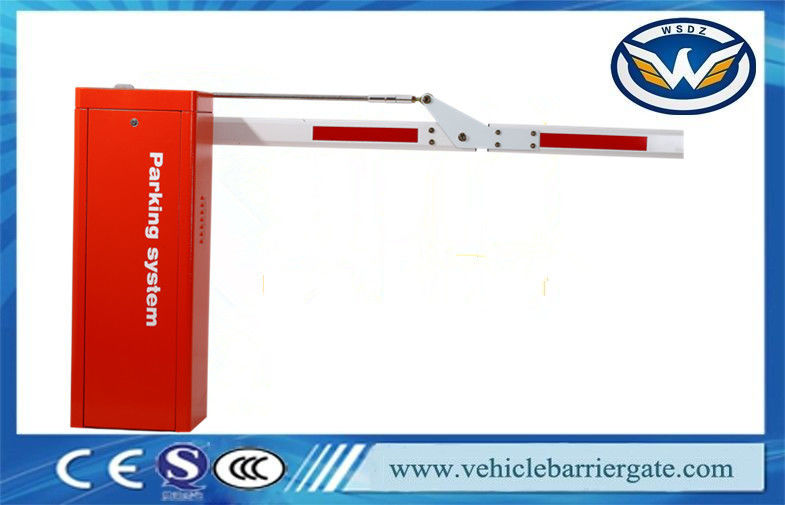

90 Degree Folding car park security barriers , CE Confirmed Park Boom Gate

Place of Origin China
Brand Name WONSUN
Certification CE, ISO, SGS
Model Number DZTP-131
Minimum Order Quantity 1PC
Price negotiation
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time 3-7 working days after received your payment
Payment Terms T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability 1000 Sets/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 90 Degree Folding Toll Barrier Gate CE Confirmed Park Boom Gate Motor Rotational Speed 1400rmp
Remote Control Distance Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More Relative Humidity < 90 %
Arm Speed 0.6s.1s.1.8s.3s.6s.8s Arm Type Straight Arm, Folding Arm,Fence Arm
High Light

traffic barrier gate

,

auto barrier gate system

Leave a Message
Product Description



90 Degree Folding car park security barriers , CE Confirmed Park Boom Gate



Packaging information



Standard color body is gray, top cover is dark gray in color. A complete system consists of:

1 pcs Standard AC 230 Motor

1 pcs Control panel and MCB switch 1

set Aluminum Arm

2 pcs U bracket for base mounting

4 pcs Raw bolt screw

The following is the approximate weight information of major components to help estimate shipping cost.



Items Weight
Mechanical unit and control panel 65 kg
Gooseneck 9 kg
6 meter arm 7 kg
4 meter arm 5 kg
3 meter arm 3 kg





Key Features:



Anti crash device.
Security at the entry as well as exit points.
The limit switches for slowdown during both opening and closing can be adjusted both mechanically and electronically.
Reliable electro-mechanical drive
Robust power transmission.
Damping into open and closed position
Adjustable clutch.
Pole of strong light alloy.
Complete unit ready for connection.
Pole stand of steel.
Long term corrosion protection.



Technical Data


Description Parameter
Mechanical temperature -40° to 75 C
Electrical temperature -10° to 75 C
Power supply input 220V ± 10% AC, 50/60Hz
Power consumption 80 watt - 1.25A @ 240V
Relative humidity < 90 %
Arm speed 0.6.1 , 1.8, 3 , 6 second
Internal lubrication Grease
Max starting torque Max torque : 1 second : 1.4±0.2 N.M | 3 / 6 second : 2.1 ± 0.1 N.M
AC rotation speed AC rotation speed :1 second : 900 ± 50 RPM |3/6 second : 460 ± 40 RPM




Features


1. steady function, sensitive reaction, low noise
2.The case shell is made of thickened steel which is shaped by 13 process flow. Without fading ,waterproofing, not rusty, durable..
3.high sensitive limit switch, pole can be instant turn on and off .accurate location.
4.control system adopts hi-tech digital chip technology.
5. the anti-collision function. Protecting the passenger
6. the inductive function ,with the digital vehicle detector
7.the movements adopts the most steady running mode –non-constant speed mode. Or the variable speed excogitation. (Slow – quick – slow ) .This function makes the operation steady and prolongs the working life.
8.By-security. the barrier gate will automatically go back when meet obstacles during closing.
9.AC motor is more powerful and no maintenance.
10.Green light and red light are used inside for indication the position of the boom



Packing list


1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book

Our Sevice.


1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
