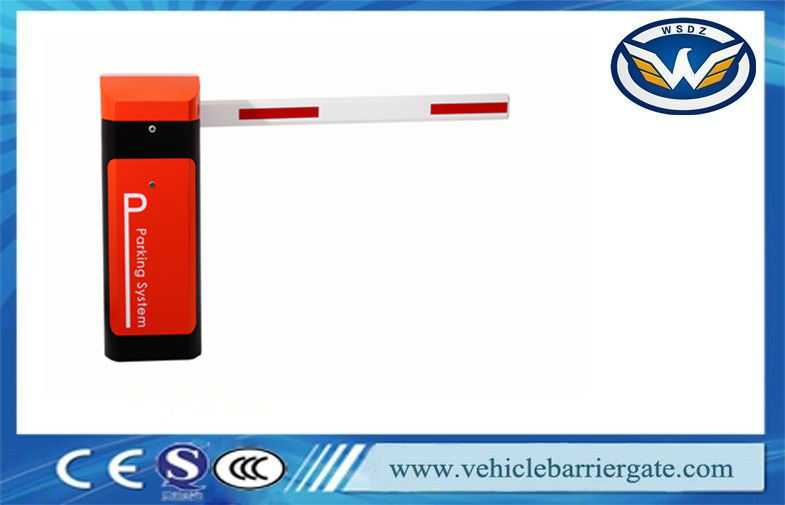

AC Pure Copper Motor Automatic Boom Barrier With Adjustable clutch

AC Pure Copper Motor Automatic Boom Barrier With Adjustable clutch
AC Pure Copper Motor Automatic Boom Barrier With Adjustable clutch

Large Image :  AC Pure Copper Motor Automatic Boom Barrier With Adjustable clutch

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-131
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

AC Pure Copper Motor Automatic Boom Barrier With Adjustable clutch

Description
Name: AC Pure Copper Motor Automatic Boom Barrier With Adjustable Clutch. Housing Material: 2mm Cold Roller Steel Plate
Remote Control Distance: Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More Relative Humidity: < 90 %
Power Consumption: 80w Place Of Original: Shenzhen,China
High Light:

security boom gate

,

electric boom barrier

AC Pure Copper Motor Automatic Boom Barrier With Adjustable clutch.





Functions & Features

A. Steady function, sensitive reaction, low noise

B. Surface is shaped by 13 process flow, and use import paint. Excellent rust-proof, waterproof ablity.

C. High sensitive limit switch, barrier boom can be instant turn on and off, accurate location.

D. Control system adopts hi-tech digital chip technology.

E. The anti-collision function, protecting the passenger

F. The inductive function ,with the digital vehicle detector

G. Three open speed,1s,18s, 3s and 6s. The barrier is provided with remote controllor, manual button, and digital vehicle detector





Key Features:



• Anti crash device.

• Security at the entry as well as exit points.

• The limit switches for slowdown during both opening and closing can be adjusted both mechanically and

electronically.

• Reliable electro-mechanical drive.

• Robust power transmission.

• Damping into open and closed position.

• Adjustable clutch.

• Pole of strong light alloy.

• Complete unit ready for connection.

• Pole stand of steel.

• Long term corrosion protection.





Technical Data


Mechanical unit Consist of the drive motor, speed reduction gear box and casing. Control panel is mounted into mechanical unit casing as a complete system that drives the arm movement. Casing is made with electroplated mild steel and finished with epoxy powder paint. The top cover and door on casing is cam locked (requires key) to avoid tampering with the internal system. The following is the parameter for complete system:

Description Parameter
Mechanical temperature -40° to 75 C
Electrical temperature -10° to 75 C
Power supply input 220V ± 10% AC, 50/60Hz
Power consumption 80 watt - 1.25A @ 240V
Relative humidity < 90 %
Arm speed 0.6.1 , 1.8, 3 , 6 second
Internal lubrication Grease
Max starting torque Max torque : 1 second : 1.4±0.2 N.M | 3 / 6 second : 2.1 ± 0.1 N.M
AC rotation speed AC rotation speed :1 second : 900 ± 50 RPM |3/6 second : 460 ± 40 RPM





Features



Intelligent. Advanced smart motor control system is combined with unique lever design to achieve swift arm movement that reduces bouncing at end position.
motor uses lowest possible rotation speed (RPM) with our force rotation ratio technology to achieve high speed opening. This reduces mechanical wear and effectively eliminates any maintenance servicing on the motor.
Improved air ventilation. New fan design located at top instead of sideways. This allowed cool air enter from bottom and exit from top to achieve more efficient cooling this enabling to support higher flow of traffic.
Safe. Arm will auto-reverse when hitting an obstacle during closing. Photo beam can be added to autoreverse the arm ahead of time before hitting approaching vehicle or human. Arm will swing out during direct collision from front avoid arm frequently broken . Traffic light (red & green) can be added to indicate permission to pass through and further enhance safety usage. Built-in MCB to protect against any electric hazard.
Heavy Duty. eliminates the use of mechanical limit switch thus reducing mechanical wear and tear. Innovative counter weight spring design avoids possibility of motor over-stressed and break due to high volume continuous open/close cycle. All these allow to work harder and work longer for you.
Fast speed. 0.8 sec fast opening / closing speed allow more car to pass through faster thus effectively reducing congestion during peak hours.
User Friendly. In the event of power failure, arm can be easily lifted up by insert a key from outside to unlock the clutch. There is no need to open up entire casing to avoid any vandalism attempt of internal parts.
Easy maintenance. Epoxy powder paint will keep the unit looking clean and new for years. Damaged barrier arm can be replaced easily. AC based motor is stronger and maintenance free (no need to change carbon).





Built in spring mechanism to counter balance arm’s weight allow for effortless motor drive and longer mechanical life span.



Control panel Consist of advance intelligent microprocessor based board and transformer housed in a weather resistant plastic casing. It controls the operation of the barrier system.



Function:



A)Support 4 types of speed – 1 ,1.8, 3 , and 6 second

B)Support separate push button for opening , closing and stop

C)Support motor encoder sensor

D)Support traffic light (red – green) output AC230

E)Optical slot sensor to control up and down limit





Casing is made from weather proof ABS plastic.

Casing dimension: 211mm x 95mm x 118mm

 .



Communication with customers

1) Q: Connected power and press open/close button but parking barrier gate no action?


A Reason Solution
1 Fuse blown Check fuse and power in controller
2 Battery of remote control powered off Change a new one
3 External protection circuit break or at protecting status Open the barrier door and click OPEN/CLOSE button on control box
4 Same frequency interference Check photocell and loop detector


2) Q:Connected power and press open/close button, parking barrier gate will move but even when it is at right position, the motor still running and not stop?

A Reason Solution
1 Limit switch Adjust the horizontal/vertical limit switch to correct position
2 Main controller failure Change a new one


3) Q: Motor running but parking barrier gate arm no action?

A Reason Solution
1 Barrier arm at 45° position where is hard to move Unlock clutch and manually rotate arm to horizontal or vertical position then try again
2 Tension of balancing spring not suitable Adjust spring exactly
3 Low working voltage

Check the voltage and power
