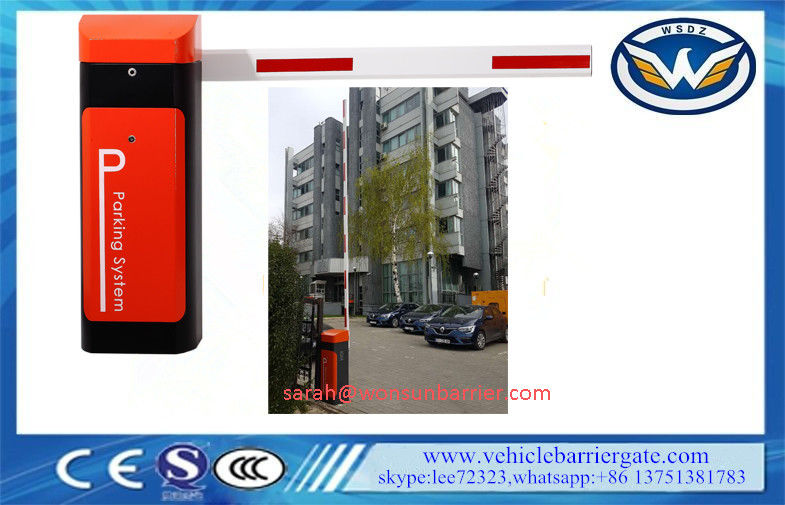

Telescopic Arm Auto Reverse car park barriers , parking barrier gate 8m Dual Spring

Telescopic Arm Auto Reverse car park barriers , parking barrier gate 8m Dual Spring
Telescopic Arm Auto Reverse car park barriers , parking barrier gate 8m Dual Spring

Large Image :  Telescopic Arm Auto Reverse car park barriers , parking barrier gate 8m Dual Spring

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-131
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

Telescopic Arm Auto Reverse car park barriers , parking barrier gate 8m Dual Spring

Description
Features: Heavy Duty, Manual Release, Swing Out, Remote Control Name: Vehicle Barrier Gate System Telescopic Arm Auto Reverse 8m Dual Spring
Housing Material: 2mm Cold Roller Steel Plate Housing Dimension: 320 * 280 * 935 Mm
Car Parking: Vehicle Control Barriers Gate Power Consumption: 80w
High Light:

vehicle access control barriers

,

car parking management system

Telescopic Arm Auto Reverse car park barriers , parking barrier gate 8m Dual Spring








Model



DZTP-131(WONSUN 1st generation machine core)

Mechanical temperature



-40°C to 75°C

Electrical temperature



-10°C to 75°C

Power supply input



220V ± 10% AC, 50 / 60Hz

Power consumption



80 watt

Relative humidity



<90%

Relative Humidity



<90% coagulation free

Arm speed



0.6,1,1.8, 3, 6,8 second

Boom length



Max 6 meters

Net weight:



50Kg





Features



Intelligent. Advanced smart motor control system is combined with unique lever design to achieve swift arm movement that reduces bouncing at end position.

DSP Dual Spring mechanism to achieve two times smoother arm motion. Combination of different tension force reduced vibration as the arm stop. Well balanced arm weight reduces the possibility of broken spring thus reducing down time.

DSD Dual Sensor Detection to achieve double safety. Innovative design monitors current spike and motor rotation simultaneously to auto-reverse arm if blocked by obstacle. This is an important safety feature to prevent further damage in the event when arm hit car or pedestrian.

motor uses lowest possible rotation speed (RPM) with our force rotation ratio technology to achieve high speed opening. This reduces mechanical wear and effectively eliminates any maintenance servicing on the motor.

Improved air ventilation. New fan design located at top instead of sideways. This allowed cool air enter from bottom and exit from top to achieve more efficient cooling this enabling to support higher flow of traffic.

Safe. Arm will auto-reverse when hitting an obstacle during closing. Photo beam can be added to autoreverse the arm ahead of time before hitting approaching vehicle or human. Arm will swing out during direct collision from front avoid arm frequently broken . Traffic light (red & green) can be added to indicate permission to pass through and further enhance safety usage. Built-in MCB to protect against any electric hazard.

Heavy Duty. eliminates the use of mechanical limit switch thus reducing mechanical wear and tear. Innovative counter weight spring design avoids possibility of motor over-stressed and break due to high volume continuous open/close cycle. All these allow to work harder and work longer for you.

Fast speed. 0.8 sec fast opening / closing speed allow more car to pass through faster thus effectively reducing congestion during peak hours.

User Friendly. In the event of power failure, arm can be easily lifted up by insert a key from outside to unlock the clutch. There is no need to open up entire casing to avoid any vandalism attempt of internal parts.

Easy maintenance. Epoxy powder paint will keep the unit looking clean and new for years. Damaged barrier arm can be replaced easily. AC based motor is stronger and maintenance free (no need to change carbon).



Built in spring mechanism to counter balance arm’s weight allow for effortless motor drive and longer mechanical life span.



Control panel Consist of advance intelligent microprocessor based board and transformer housed in a weather resistant plastic casing. It controls the operation of the barrier system.



Function:



A)Support 4 types of speed – 1 ,1.8, 3 , and 6 second

B)Support separate push button for opening , closing and stop

C)Support motor encoder sensor

D)Support traffic light (red – green) output AC230

E)Optical slot sensor to control up and down limit



Casing is made from weather proof ABS plastic.

Casing dimension: 211mm x 95mm x 118mm

 .

FAQ:



1. When barrier finish closing, why does the arm open itself slowly?

  • the spring is too tight, you need release the spring a little, then test it again.
  • see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
  • reset the balance position and the electrical limit switch.



2. Why does the controller panel operate with "Di Di Di" abnormal noises?

  • As for this, it means the resistance on controller board is broken, if you have professional tools to check,
  • then replace that broken resistance, if not, replace that controller panel.



3. Why does the barrier finish half operation of opening and closing?

  • If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.



4. When barrier closed, why is there a 5 degree angle of inclination?

  • the model is not good, and the gear doesn't fit each other tightly.
  • the barrier didn't adjust well, need to reset.



5. When barrier finish open, but it closes itself without any order control, what's the problem?

  • To check the loop cable first, because the loop cable maybe brokem
  • To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.



6. Why does the arm wave a lot when opening and closing?

  • The spring is very tight
  • The Screw touches the rubber absorption tightly, need to reset again.



7. Rubber linning installation suggestion:

  • It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
  • The place with many vehicles come and go, like shopping center, carpark area.



8. Can you accept OEM/ODM order?

  • Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.



Each barrier gate will include:



1 pcs Gate Barrier

1 pcs arm boom (from 1m to 6m can customised)

1 pcs control panel(built inside)

2 pcs remote controllers

1 pcs manual book





Service for free:


1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

7. Best service barrier gate motor can accepted old to change new motor. The barrier gate is production by our factory.
