|Name:||Traffic Barrier Gate Toll Gate System Remote Control Folding Arm 90 Degree||Time For Up/Down:||0.6s,1s,3s,4s,6s|
|Power Supply:||220V±10%, 110V±10%, 50/60HZ||Waterproof:||IP44|
|Boom Type:||Straight Boom,Fence Boom, Folding Boom||Motor Rotational Speed:||1400rmp|
access control barriers and gates,
parking barrier gates

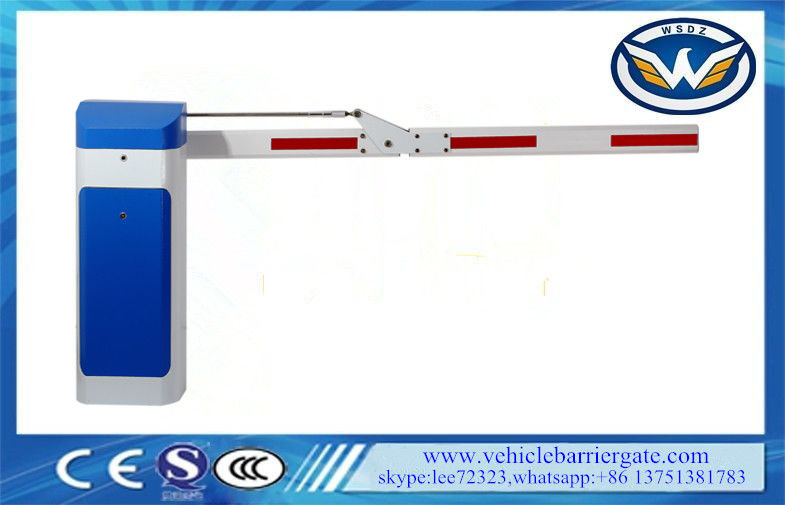

Traffic Barrier Gate Toll Gate System Remote Control Folding Arm 90 Degree
1. Working temperature:-40~+75 degree centigrade.
2. Power: 220V±10%, 110V±10%, 50/60HZ
3. Rated power: 80W
4. Relative humidity: ≤90%
5. Remote control distance: ≥30m
6. Net weight: 56kgs
7. Speed: 1S, 3S, 6S
8. Protection Class: IP54
Our company is the professional manufacture of automatic barrier gates, tripod turnstile
gates, swing barrier gates, flap barrier gates, parking lock, full height turnstile gates, etc.
We sell our products to abroad many years and won the best feedback from our customers.
Now our company has updated our production line, and our production capacity has reached
to10000 sets/month. We can offer quick delivery time and exchange of spare parts as many
company required. Our products can be compatible with many car parking systems, and we
also have LED Light series barrier gates, fast speed barrier gates(0.6s,1s and 1.8s), this is our the
strong point that other manufacture can never compete. We also have the telescopic arm for
our 6m barrier gates for easy transportation.
A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)
B:180°articulated boom(Max 4M)
C:90° articulated boom(Max 4M)
D:2 fences boom(Max 5M)
E:3 fences boom(Max 4M)
Boom with LED lights and light colors changeable.
Light flashing pattern, speed and colors controlled by a remote control.
1. Manual release device to operate the barrier when power off.
2. Motor cooling fan to avoid the over-heating possibility
3. Automatic reversing when the barrier boom meets the obstruction
4. Auto closing realization through menu setting on the control panel
5. Interfaces available for infrared photocells, loop detectors, card readers,
ticket dispensers, manual switch (wire control), traffic light
6. RS485 Communication Module is compatible
Anti-collision protects boom arm (optional)
Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once
boom arm was collided by a vehicle.
Safety--- Anti-hit by pressure resistance bounce
While moving down,arm will immediately go back to vertical position once it is obstructed by an
imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity
Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground
induction coil, the arm will go back to vertical position immediately until loop input was dismissed
and then the arm will go down immediately.
Safety--- Anti-hit by photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked by
human or vehicle, the arm will go back to vertical position immediately. The arm will automatically
close once the infrared transportation recovers.
Safety--- Anti-hit by “Opening Priority”
If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position
once a open command is given, which protect the vehicle not to be hit by arm.
Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop
input was triggered
Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism.
Also barrier boom can be manually locked in any position between horizontal and vertical, the lock
status will remain until unlock manually.
Boom to open up fully or close down in case of power failure
If power is suddenly off while boom closing, boom will automatically close down fully if the angle
between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,
boom will automatically continue to open up fully if the angle between boom and level surface
beyond 45 degrees
Anti-condensation in cold climate
The barrier remains low power consumption even without closing and opening input, which will
keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep
working in frozen environment
Transparent plastic covers on Control Board
A transparent plastic covers on the Control Board to makes Control Board water proof and dust
proof, also protects operator.
For the things that most customer want to know:
1. MOQ: for our usual order, there is no MOQ; But for customized order, like customize color,
printing LOGO, corrosion protection base, the MOQ is 30 sets.
2. Delivery Time: as for usual order, 3-7 days when we received your advance deposite or full payment(including Saturday), For customized order, it is 10-15 days after receiving your payment(including Saturday)
3. Production Potential: 80 sets of barrier gate finished in one day for usual order, for
customized order, according to your detailed requirements
4. Quality Control: 3 control lines and 6 QC for Checking, first is motor testing line which can
promise you good and durable motor;second is machine core testing line which can promise
you stable function;final is barrier gate testing line which can promise you perfect working with
its required boom with our experienced technicist's debugging
5. Service and Support: as for presales service, we will provide all the information you need
and questions you asked; for aftersales, we will offer long term technical support, and we're
sure that any of your feedback will receive our careful attentions and prompt reply.
6. Warranty: 12 months Since the barrier gate you recieve
7. Delivery Way: we can send the goods to you by Sea, Airplane and Express, but you need
tell us which kind of way do you prefer and relative information. for example, if you want to
delivery by sea, please kindly send us the shipping requirements, like FOB or CIF, and your
8. Payment: for sample order: full payment; for usual order, 30-40% advance deposite,
balance before shipment for large quantity.
As for here, if you have any pending orders or inquiry, please kindly feel free to contact us,
we're sure that any of your feedback will receive our careful attentions and prompt reply.
|Service for free:||Service for charging:|
|1. One year free service is supplied(not including the arm)||1. Broken by wrong installation|
|2. Lifetime charged service is supplied||2. Broken by improper voltage|
|3. Technical service is supplied||3. The surfaces of the barrier destroyed by wrong installation and usage|
|4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.||4. Overdue service items are out of our promise.|
|5. Technical support and aftersales service, it is a long term relatioship between us.|
|6. Price can be negotiable when you have big order quantity.|
