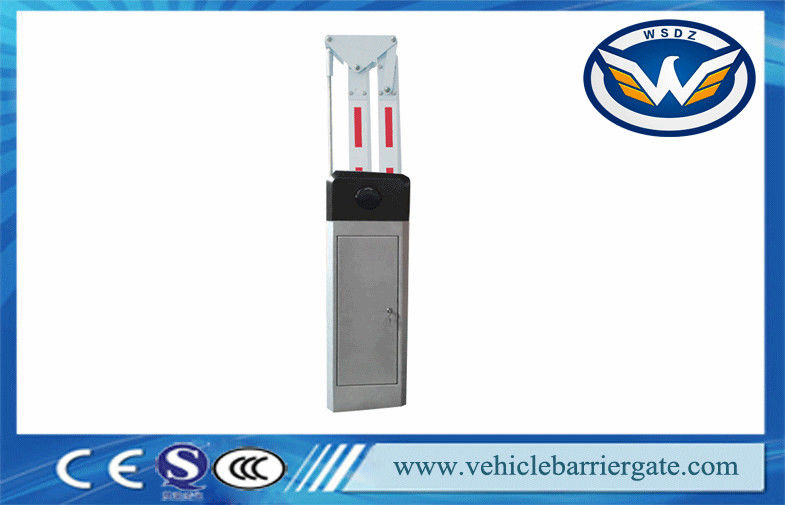

180 Degree Folding Boom Barriers Manual Release Car Park Boom Gates Equipment

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-124

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

boom barrier gate

,

electric boom barrier

Name:
180 Degree Folding Boom Manual Release Automatic Boom Barrier Parking Equipment
Time For Up/Down:
0.6s,1s,3s,4s,6s
Power Supply:
220V±10%, 110V±10%, 50/60HZ
OEM:
Available
Boom Type:
Straight Boom,Fence Boom, Folding Boom
Motor Rotational Speed:
1400rmp
Name:
180 Degree Folding Boom Manual Release Automatic Boom Barrier Parking Equipment
Time For Up/Down:
0.6s,1s,3s,4s,6s
Power Supply:
220V±10%, 110V±10%, 50/60HZ
OEM:
Available
Boom Type:
Straight Boom,Fence Boom, Folding Boom
Motor Rotational Speed:
1400rmp
Description
180 Degree Folding Boom Barriers Manual Release Car Park Boom Gates Equipment

180 Degree Folding Boom Manual Release Automatic Boom Barrier Parking Equipment





Features



1. Manual release device to operate the barrier when power off.

2. Motor cooling fan to avoid the over-heating possibility

3. Automatic reversing when the barrier boom meets the obstruction

4. Auto closing realization through menu setting on the control panel

5. Interfaces available for infrared photocells, loop detectors, card readers,

ticket dispensers, manual switch (wire control), traffic light

6. RS485 Communication Module is compatible



Application & Advantages



Wonsun barrier gate can be integrated with any vehicle access control equipment,

like ticket dispensers and other related car parking products.

Places like highways, toll systems, car parking lots, malls,

and other public areas needed vehicle access control.

1.durable and sturdy

2.trouble free operation

3.minimum maintenance



Description Parameter


Mechanical temperature -40° to 75 C
Electrical temperature -10° to 75 C
Power supply input 220V ± 10% AC, 50/60Hz
Power consumption 80 watt
Relative humidity < 90 %
Arm speed 0.6,1.8s 1s, 3s, 6s.



180 Degree Folding Boom Barriers Manual Release Car Park Boom Gates Equipment 0

Optional Boom





A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)

B:180°articulated boom(Max 4M)

C:90° articulated boom(Max 4M)

D:2 fences boom(Max 5M)

E:3 fences boom(Max 4M)



Boom with LED lights and light colors changeable.

Light flashing pattern, speed and colors controlled by a remote control.





Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once

boom arm was collided by a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an

imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity

is adjustable.

Safety--- Anti-hit by Loop Detector (Optional)

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground

induction coil, the arm will go back to vertical position immediately until loop input was dismissed

and then the arm will go down immediately.

Safety--- Anti-hit by photocell (Optional)

While arm moving down, If infrared transportation between transmitter and receiver is blocked by

human or vehicle, the arm will go back to vertical position immediately. The arm will automatically

close once the infrared transportation recovers.

Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position

once a open command is given, which protect the vehicle not to be hit by arm.

Automatically Close by loop detector (Optional)

If loop detector is installed, after vehicle passed the barrier will automatically close once the loop

input was triggered

Manually control in case of no power

Once power is off, just open the cabinet and manually control the barrier by a gear mechanism.

Also barrier boom can be manually locked in any position between horizontal and vertical, the lock

status will remain until unlock manually.

Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle

between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,

boom will automatically continue to open up fully if the angle between boom and level surface

beyond 45 degrees

Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will

keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep

working in frozen environment

Transparent plastic covers on Control Board

A transparent plastic covers on the Control Board to makes Control Board water proof and dust

proof, also protects operator.





For the things that most customer want to know:



1. MOQ: for our usual order, there is no MOQ; But for customized order, like customize color,

printing LOGO, corrosion protection base, the MOQ is 30 sets.

2. Delivery Time: as for usual order, 3-7 days when we received your advance deposite or full payment(including Saturday), For customized order, it is 10-15 days after receiving your payment(including Saturday)

3. Production Potential: 80 sets of barrier gate finished in one day for usual order, for

customized order, according to your detailed requirements

4. Quality Control: 3 control lines and 6 QC for Checking, first is motor testing line which can

promise you good and durable motor;second is machine core testing line which can promise

you stable function;final is barrier gate testing line which can promise you perfect working with

its required boom with our experienced technicist's debugging

5. Service and Support: as for presales service, we will provide all the information you need

and questions you asked; for aftersales, we will offer long term technical support, and we're

sure that any of your feedback will receive our careful attentions and prompt reply.

6. Warranty: 12 months Since the barrier gate you recieve

7. Delivery Way: we can send the goods to you by Sea, Airplane and Express, but you need

tell us which kind of way do you prefer and relative information. for example, if you want to

delivery by sea, please kindly send us the shipping requirements, like FOB or CIF, and your

nearby port.

8. Payment: for sample order: full payment; for usual order, 30-40% advance deposite,

balance before shipment for large quantity.

As for here, if you have any pending orders or inquiry, please kindly feel free to contact us,

we're sure that any of your feedback will receive our careful attentions and prompt reply.





Service for free: Service for charging:
1. One year free service is supplied(not including the arm) 1. Broken by wrong installation
2. Lifetime charged service is supplied 2. Broken by improper voltage
3. Technical service is supplied 3. The surfaces of the barrier destroyed by wrong installation and usage
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements. 4. Overdue service items are out of our promise.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
