Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-120
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Color:: |
Yellow, Orange, Blue, Customized Optional |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Opening & Closing Time:: |
0.6 / 1/1.8 / 3 / 6 Sec. Optional |
Motor Power:: |
120W |
Name:: |
CE Certificate Remote Control Toll Gate Barrier For Parking Lot System |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Color:: |
Yellow, Orange, Blue, Customized Optional |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Opening & Closing Time:: |
0.6 / 1/1.8 / 3 / 6 Sec. Optional |
Motor Power:: |
120W |
Name:: |
CE Certificate Remote Control Toll Gate Barrier For Parking Lot System |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |

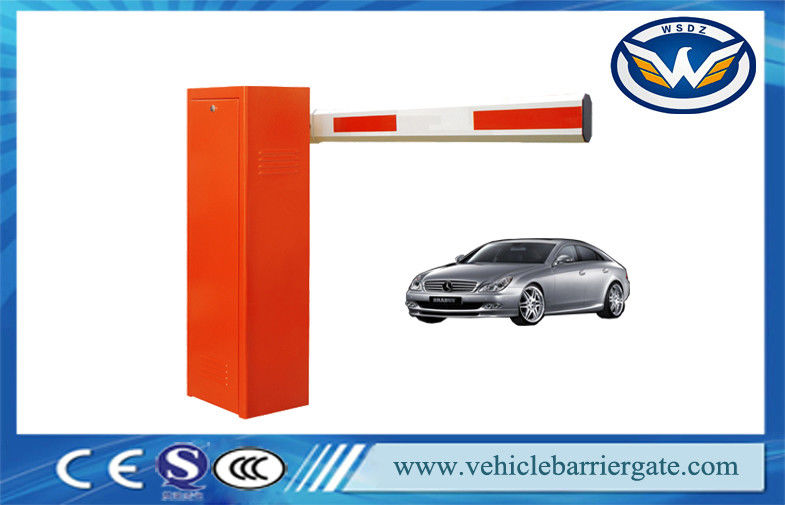

CE Certificate Remote Control Toll Gate Barrier For Parking Lot System
Quick details:
Model: WSTP-120
1. Straight boom arm length 1-6 m, Speed time is 6S/4s
2. Straight boom arm length 1-3.5m. Speed time is 1.8s
3. Straight boom arm length 1-3 m, Speed time is 1s
4. Straight boom arm length 1-2.5m, Speed time is 0.6s/0.8s
Why choose us?
1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
Specifications:
| Model | WSTP-120 |
| Size | 360*290*935 mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+75℃ |
| Material |
Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
|
Remote Control Distance
|
Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1025*375*470mm , with seven layers carton case
inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
Functions & Features:
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
Gate Arm Type:
1. Straight arm lengt size : 100*45mm. 80*45mm
2.Retractable arm size: 86*45mm
Our Toll Gate Barrier Packing List:
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or
call me! We will provide our best professional service for you.
Applications:
Barrier Gate with rubber boom uses the third generation motor. It is stable and has long service life performance,
running one million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.
