|Name:||RFID Parking System Traffic Barrier Gate With Vehicle Loop Detector||Relative Humidity:||≤95% Coagulation Free|
|Voltage:||220V±10%, 110V±10%, 50/60HZ||Package:||Shenzhen,China|
|Net Weight:||65KGS||Payment:||30% T/T As Deposit In Advance And 70%T/T Before Loading|
access control barriers and gates,
parking barrier gates

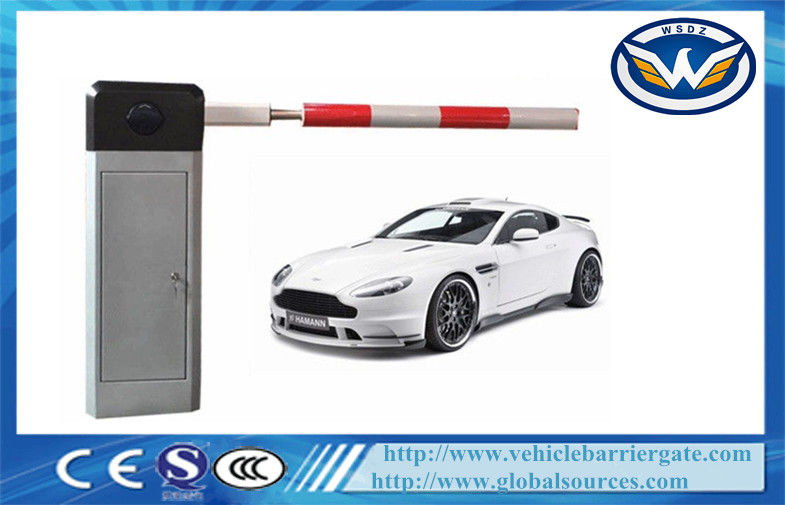

RFID Parking System Traffic Barrier Gate With Vehicle Loop Detector
|Motor Rotational Speed||1400rpm|
|Remote Control Distance||≤50m|
|Max Boom Length||1-8M|
1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.
2. Special balancing structure design makes the barrier arm has the feature of slow-starting,
3. It is running without arm-shaking.
4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.
5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast
6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent
use, it can control the warming of the motor, makes the motor not burned easily.
|A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)|
|B:180°articulated boom(Max 4M)||C:90° articulated boom(Max 4M)|
|D:2 fences boom(Max 5M)||E:3 fences boom(Max 4M)|
Boom with LED lights and light colors changeable.
Light flashing pattern, speed and colors controlled by a remote control.
|Remote control device||2||console control device||1|
Anti-collision protects boom arm (optional)
Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once
arm was collided by a vehicle.
Safety--- Anti-hit by pressure resistance bounce
While moving down,arm will immediately go back to vertical position once it is obstructed by an
imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is
Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground
induction coil, the arm will go back to vertical position immediately until loop input was dismissed
and then the arm will go down immediately.
Safety--- Anti-hit by photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked by
human or vehicle, the arm will go back to vertical position immediately. The arm will automatically
close once the infrared transportation recovers.
Safety--- Anti-hit by “Opening Priority”
If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position
once a open command is given, which protect the vehicle not to be hit by arm.
Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop
input was triggered
Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism.
Also barrier boom can be manually locked in any position between horizontal and vertical, the
lock status will remain until unlock manually.
Boom to open up fully or close down in case of power failure
If power is suddenly off while boom closing, boom will automatically close down fully if the angle
between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,
boom will automatically continue to open up fully if the angle between boom and level surface
beyond 45 degrees.
Anti-condensation in cold climate
The barrier remains low power consumption even without closing and opening input, which will
keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep
working in frozen environment
Transparent plastic covers on Control Board
A transparent plastic covers on the Control Board to makes Control Board water proof and dust
proof, also protects operator.
For the things that most customer want to know:
1. MOQ: for our usual order, there is no MOQ; But for customized order, like customize color, printing LOGO, corrosion protection base, the MOQ is 30 sets.
2. Delivery Time: as for usual order, 3-7 days when we received your advance deposite or full payment(including Saturday), For customized order, it is 10-15 days after receiving your payment(including Saturday)
3. Production Potential: 80 sets of barrier gate finished in one day for usual order, for customized order, according to your detailed requirements
4. Quality Control: 3 control lines and 6 QC for Checking, first is motor testing line which can promise you good and durable motor;second is machine core testing line which can promise you stable function;final is barrier gate testing line which can promise you perfect working with its required boom with our experienced technicist's debugging
5. Service and Support: as for presales service, we will provide all the information you need and questions you asked; for aftersales, we will offer long term technical support, and we're sure that any of your feedback will receive our careful attentions and prompt reply.
6. Warranty: 12 months Since the barrier gate you recieve
7. Delivery Way: we can send the goods to you by Sea, Airplane and Express, but you need tell us which kind of way do you prefer and relative information. for example, if you want to delivery by sea, please kindly send us the shipping requirements, like FOB or CIF, and your nearby port.
8. Payment: for sample order: full payment; for usual order, 30-40% advance deposite, balance before shipment for large quantity.
As for here, if you have any pending orders or inquiry, please kindly feel free to contact us, we're sure that any of your feedback will receive our careful attentions and prompt reply.
1. OEM/ODM order are accepted, we have 7 years OEM/ODM experience
2. Price can be negotiable with order quantity.
3. 2 professional technicists can give you best support.
4. Mould production of accessories, can provide you any replace of barrier gate.
5. Professional sales team can provide you professional answers and quick response of your
6. Sample order is OK for testing its function and working performance.
7. Warmly welcome for visiting our factory and having a face to face negotiation.
|Service for free:||Service for charging:|
|1. One year free service is supplied(not including the arm)||1. Broken by wrong installation|
|2. Lifetime charged service is supplied||2. Broken by improper voltage|
|3. Technical service is supplied||3. The surfaces of the barrier destroyed by wrong installation and usage|
|4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.||4. Overdue service items are out of our promise.|
|5. Technical support and aftersales service, it is a long term relatioship between us.|
|6. Price can be negotiable when you have big order quantity.|
