Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-133-A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Remote Control Car Parking Barriers More Than 5 Milions Operation Times |
Housing Size: |
320*250*944mm |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Package: |
Shenzhen,China |
Net Weight: |
65KGS |
Color: |
Grey And Black |
Name: |
Remote Control Car Parking Barriers More Than 5 Milions Operation Times |
Housing Size: |
320*250*944mm |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Package: |
Shenzhen,China |
Net Weight: |
65KGS |
Color: |
Grey And Black |

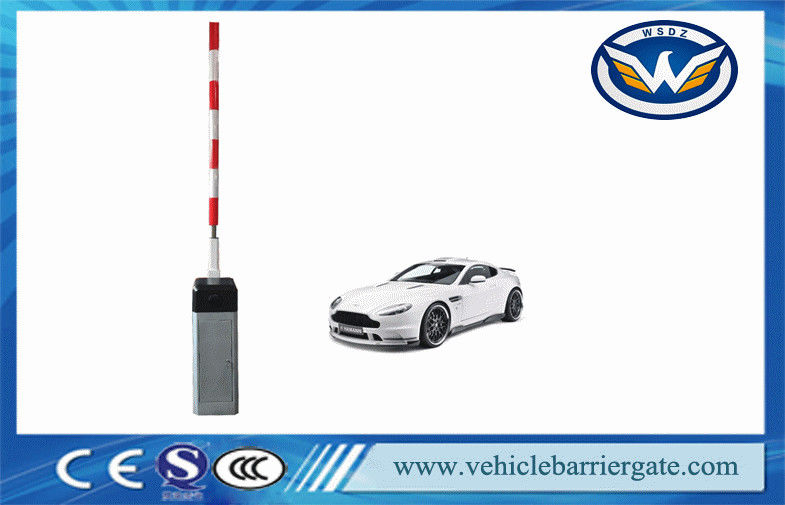

Remote Control Car Parking Barriers More Than 5 Million Operation Times
That is how they produce this good car park barrier.
15 types of technical devices for testing,
131 levels of precise equipment for machining
400pcs of accessories are carefully selected,
189 assem 5 steps of quality controls are not absent.
| Car park barriers Technical Data | |
| Working Temperature | -35℃-75℃ |
| Car park barriers Humidity | ≤90% |
| Car park barriers Power Supply |
220v±10%50/60Hz 110v±10%50/60Hz |
| Car park barriers Rated Power | 120W/100W |
| Motor Rotational Speed | 1400rpm |
| Protection Degree | IP44 |
| Remote Control Distance | ≤50m |
| Max Boom Length | |
Car park barriers Functions & Features
1) Advanced manual clutch; Auto-reset when powered on.
2) Compression and extension springs are suitable for the motor, The compression
springs can avoid accidents caused by broken springs due to great force.
3) Remote controller control boom rising, falling, and pausing.
4) Reversing on obstacles.
5) Infrared Photocell(Optional)
6) Support the external and internal VEHICLE LOOP DETECTOR(optional)
7) Interface for opening, closing, and pausing.
8) RS485 Communication module.
9) Traffic light interface.
10) Wire control(switch signal)/Remote Control220MHz.
| Car park barriers Optional Boom | |
| A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom, elliptic boom) | |
| B:180°articulated boom(Max 4M) | C:90° articulated boom(Max 4M) |
| D:2 fences boom(Max 5M) | E:3 fences boom(Max 4M) |
|
Boom with LED lights and light colors changeable. Light flashing patterns, speed, and colors are controlled by a remote control. |
|
Car park barriers Packing List
| Items | quantity | items | quantity |
| Paint-coated case | 1 | motor | 1 |
| Transmission | 1 | limit switch | 1 |
| Barrier arm | 1 | capacitor | 1 |
| Spring | 1 | circuit board | 1 |
| Remote control device | 2 | console control device | 1 |
| Installation kit | 1 |
Car park barriers
Anti-collision protects boom arm (optional)
Once the anti-collision mechanism is installed, it will protect the boom arm not to being damaged once
boom
the arm collided with a vehicle.
Safety--- Anti-hit by pressure resistance bounce
While moving down, the arm will immediately go back to its vertical position once it is obstructed by an
imposed force, which protects the vehicle or person not to being hit by a boom arm. The sensitivity is
adjustable.
Safety--- Anti-hit by Loop Detector (Optional)
The Car park barriers boom is moved down If a coming vehicle is detected to be existing on the ground
induction coil, the Car park barrier arm will go back to a vertical position immediately until the loop input is dismissed
and then the arm will go down immediately.
Safety--- Anti-hit by photocell (Optional)
While the Car park barriers arm moves down, If infrared transportation between the transmitter and receiver is blocked by
a human or vehicle, the arm will go back to a vertical position immediately. The arm will automatically
close once the infrared transportation recovers.
Safety--- Anti-hit by “Opening Priority”
If a vehicle is coming while the arm moving down, the arm will immediately go back to a vertical position
once an open command is given, which protects the vehicle not to being hit by an arm.
Automatically Close by loop detector (Optional)
If a loop detector is installed, after the vehicle passes the barrier will automatically close once the loop
input was triggered
Automatically open by loop detector (Optional)
If a loop detector is installed, when the barrier boom is in a horizontal position, the barrier boom will go up immediately once the loop input is triggered
Manually control in case of no power.
Once the power is off, just open the cabinet and manually control the barrier with a gear mechanism.
Also, barrier boom can be manually locked in any position between horizontal and vertical, the
lock status will remain until unlocked manually.
Boom to open up fully or close down in case of power failure
If power is suddenly off while the boom is closing, the boom will automatically close down fully if the angle
between boom and vertical plane beyond 45 degrees. If a power failure occurs during boom opening,
boom will automatically continue to open up fully if the angle between the boom and the level surface
beyond 45 degrees.
Anti-condensation in cold climate
The Car park barriers maintain low power consumption even without closing and opening input, which will
keep the motor at normal temperature. The lubricant will not be frozen so the barrier will keep
working in a frozen environment.
Transparent plastic covers on the Control Board.
A transparent plastic covers the Control Board to make Control Board waterproof and dust
proof also protects the operator.
Specific information WSTP-115BL_pdf.pdf
FAQ
| 1. Are you a manufacturer or trade company? |
| We're a professional manufacturer who has had our factory in Shenzhen Pingshan since 2007. |
| 2. What is your MOQ? |
| As for usual orders, there is no MOQ; For OEM orders, at least 30 sets. |
| 3. What is your delivery time? |
|
As for the usual order, it is 3-5 days after receiving your payment with 50 sets of order quantity. For OEM orders, it is 7-15 days after receiving your payment with 30 sets of order quantity. |
| 4. Are there any problems with your barrier gate? |
| As for now, don't receive any complaints of quality problems from our customers. |
| 5. What are the terms of payment? |
| 30%-40% advance deposit, 60%-70% balance before shipment for large quantities. |
| 6. What is your Warranty? |
| Our Warranty is 1 year for housing, a lifetime warranty for the machine core, and provides old for new service. |
Best Service
1. OEM/ODM orders are accepted, we have 7 years of OEM/ODM experience
2. Price can be negotiable with order quantity.
3. 2 professional technicists can give you the best support.
4. Mould production of accessories, can provide you with any replacement for the barrier gate.
5. A professional sales team can provide you with professional answers and quick responses to your
questions.
6. Sample order is OK for testing its function and working performance.
7. Warmly welcome for visiting our factory and having a face-to-face negotiation.
| Service for free: | Charging service: |
| 1. One-year free service is supplied(not including the arm) | 1. Broken by wrong installation |
| 2. Lifetime charged service is supplied | 2. Broken by improper voltage |
| 3. Technical service is supplied | 3. The surfaces of the barrier were destroyed by the wrong installation and usage |
| 4. OEM: we can customize the machine case, color, and logo for you, according to your detailed requirements. | 4. Overdue service items are out of our promise. |
| 5. Technical support and aftersales service, is a long-term relationship between us. | |
| 6. Price can be negotiable when you have a big order quantity. |
