|Name:||RFID System Automatic Boom Barrier Infrared Sensor Electric Barrier Gate||Housing Size:||320*250*944mm|
|Voltage:||220V±10%, 110V±10%, 50/60HZ||Place Of Origin:||Shenzhen,China|
boom barrier gate,
electric boom barrier

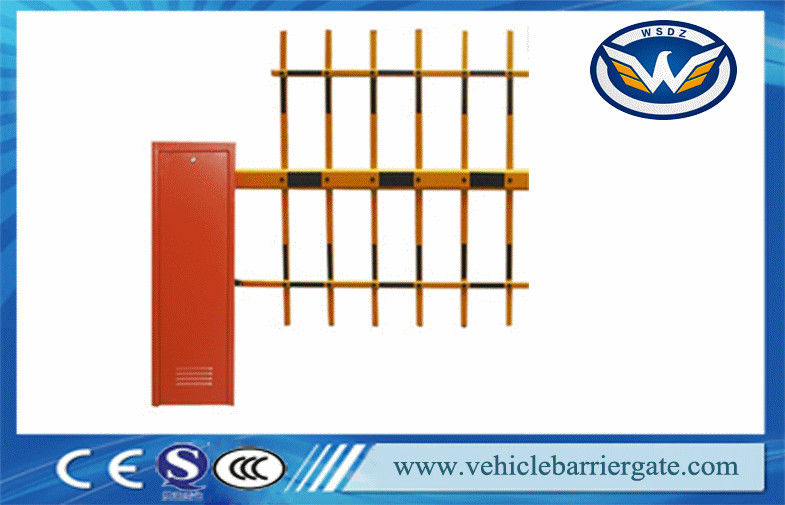

RFID System Automatic Boom Barrier Infrared Sensor Electric Barrier Gate
|Name||RFID System Automatic Boom Barrier Infrared Sensor Electric Barrier Gate|
|Voltage||AC 220V/110V±10%, 50/60HZ|
|Operation time||3s,6s. Customized|
Galvanized plate or Cold roll plate, 2.0mm thickness sheet
3 years without rust, shedding and fading
|Spring And Bearing||Heat Treatment: more durable, more than 5 million times through operation testing|
Remote Control Distance
|Usually more than 30 meters, if there is less obstacles, even 50 meters or more|
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Each barrier gate will include:
|Remote control device||2||console control device||1|
Packaging & Shipping
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the apperance
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your
With WONSUN, your job gets easier.
Our factory are professional in making automatic barrier gate, swing barrier,flap barrier, sliding
barrier, tripod turnstile, full height turnstile and so on.
We keep on creating high quality and advanced technology products.We have the actual strength
and confident to provide excellent products and service for our customers
Communication with customers
1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes, change a new one.
b. Please check whether the balance spring is overused and distorted. If yes, change a new one.
b. Please check whether the balance spring is overused and distorted.If yes, change a new one, or spin
bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control board are accordant or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
