Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-133-A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Electric Boom Barrier Toll Barrier Gate With Aluminum Alloy Straight Arm |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Speed: |
0.6s,1s,1.8s,3s,6s |
Relative Humidity: |
<90% Coagulation Free |
Max Boom Length: |
8m |
Name: |
Electric Boom Barrier Toll Barrier Gate With Aluminum Alloy Straight Arm |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Speed: |
0.6s,1s,1.8s,3s,6s |
Relative Humidity: |
<90% Coagulation Free |
Max Boom Length: |
8m |
Electric Boom Barrier Toll Barrier Gate With Aluminum Alloy Straight Arm
Advanced Features:
1) clutch key can be used to open the clutch when power off.
2) Fan cooling machine reduce the motor temperature by high frequency using, never get
heat-protecting, unique temperature calefaction design for low temperature using, prevent
freezing in cold weather.
3) Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to
prolong the barrier gate working life.
Technical Data
| Material | Cold roll plate,galvanized plate or stainless steel |
| Housing size | 320*280*935 |
| Protection degree | IP54 |
| Power | 120w |
| Voltage | 220V ± 10%, 110V ± 10% |
| Relative humidity | <90% coagulation free |
| Remote control distance | >30m |
| Working temperature | -45°C to 75°C |
| Motor rotational speed | 1400rmp |
| Max boom length | 8m |
| MCBF | ≥5, 000, 000 times |
| Net weight | 60kg |
| Related accessories | Infrared sensor,loop detector,traffic light,UFH reader |
| Applications | Parking Lots, Toll Gates, Goods Yards, Railway Crossings |
| Applications | Commercial Premises, Aparment Block |

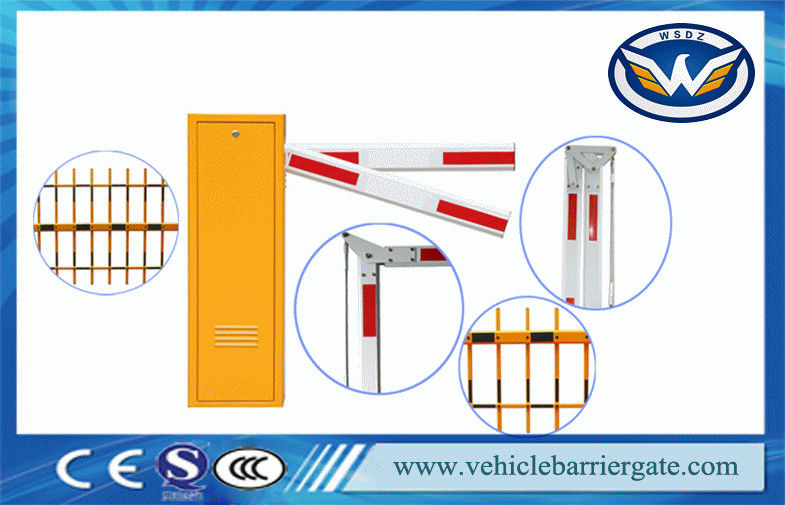

Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WST1151 |
Straight boom |
6m |
6 seconds |
|
WST1152 |
Straight boom |
4.5m |
3 seconds |
|
WST11521 |
90 degree, Articulated boom |
5m |
6 seconds |
|
WST11522 |
90 degree, Articulated boom |
3m |
3 seconds |
|
WST11561 |
180 degree, Articulated boom |
5m |
6 seconds |
|
WST11562 |
180 degree, Articulated boom |
3m |
3 seconds |
| WST11581 | Two fence boom | 4.5m | 3s and 6s |
| WST11582 | Three fence boom | 4.5m | 3s and 6s |
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but even when
it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical &
180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal
|
FAQ:
1-Can you install using loop detector or pressure sensor on it?
Yes, the barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have LIFETIME guarantee for our machine core, Wehave our technical team & after- sale
services who can speak fluent Engligh.
3-How long is the leading time?
For standard item
10-50 sets: 3 working days
50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special item, or need custom design package or logo, need 3-7 working days longer
4-How about the payment terms?
TT,western union,paypal, L/C
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also
choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,according to the different shipping method, they
will be packaged wooden crate
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a
design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
8-Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own techinical team & after- sale services who can speak fluent Engligh.
3. We offer OEM services. Can print your own logo on the products , can customize the retail
box packing and other things.
4. We have very experienced engineers ,can help you better use it.
