Parking Lot Access Control Parking Barrier Gate With CE Approved

Place of Origin China
Brand Name WONSUN
Certification CE, ISO, SGS
Model Number DZTP-133-A
Minimum Order Quantity 1PC
Price negotiation
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time 3-7 working days after received your payment
Payment Terms T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability 1000 Sets/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Remote Control CE Approved Parking Barrier Gate For Access Control System Voltage 220V±10%, 110V±10%, 50/60HZ
Working Temperature -25℃~+85℃ Remote Control Distance ≥30m
Protection Degree IP54
High Light

boom barrier gate

,

electric boom barrier

Leave a Message
Product Description

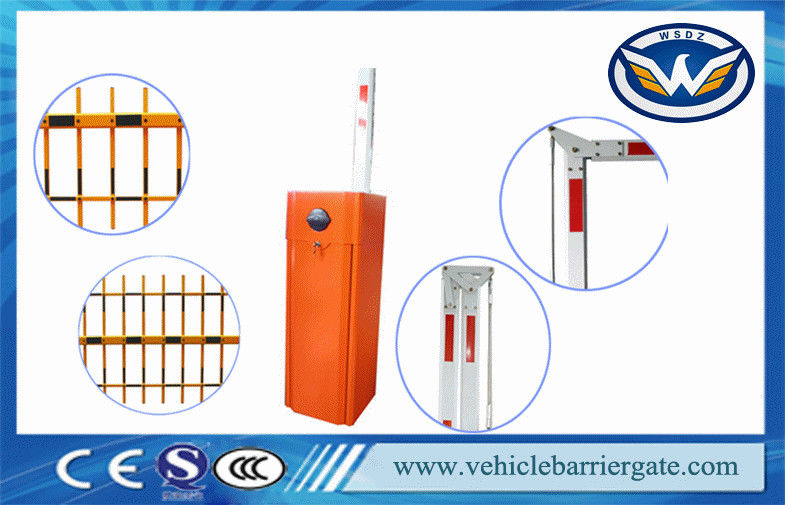

Remote Control CE Approved Parking Barrier Gate For Access Control System





Features



1) The humanized clutch device:in case of power off, unlock the clutch device and raise the boom manufally. By the time the power is supplied, lick the clutch device to make it working normally again.

2) Special spring device:Both the compression spring and tension spring can be used in the machine, Using the compression sprin can avoid accidents caused by the tension spring.

3) Three control buttons:for boom raising, falling and pausing.

4) Boom backtrack function:the boom will rise if hits something when falling.

5) Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.

6) Both external and internal loop detectors are supported.

7) "open","close" and "stop" controlling interfaces.

8) RS-485 communication serial interface(optional)

9) Traffic light signal connection device: red light for stop,green light for pass.

10) Remote control and wire control for selection.




Specifications



Material Cold roll plate,galvanized plate or stainless steel
Housing size 320*280*935
Protection degree IP54
Power 120w
Voltage 220V ± 10%, 110V ± 10%
Relative humidity <90% coagulation free
Remote control distance >30m
Working temperature -45°C to 75°C
Motor rotational speed 1400rmp
Max boom length 8m
MCBF  ≥5, 000, 000 times
Net weight 60kg
Related accessories Infrared sensor,loop detector,traffic light,UFH reader
Applications Parking Lots, Toll Gates, Goods Yards, Railway Crossings
Applications Commercial Premises, Aparment Block





Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal









FAQ:



1-Can you install using loop detector or pressure sensor on it?

 Yes, the barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have LIFETIME guarantee for our machine core, Wehave our technical team & after- sale services who can speak fluent Engligh.



3-How long is the leading time?

For standard item

10-50 sets: 3 working days

50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special item, or need custom design package or logo, need 3-7 working days longer



 4-How about the payment terms?

 TT,western union,paypal, L/C



 5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,according to the different shipping method, they will be packaged wooden crate



7-Can you do OEM service?

 We offer below OEM services:

 1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.

 2)Can print your logo on turnstiles, can customize the retail box packing and other things.



 8-Our services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own techinical team & after- sale services who can speak fluent Engligh.
3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.

4. We have very experienced engineers ,can help you better use it.
