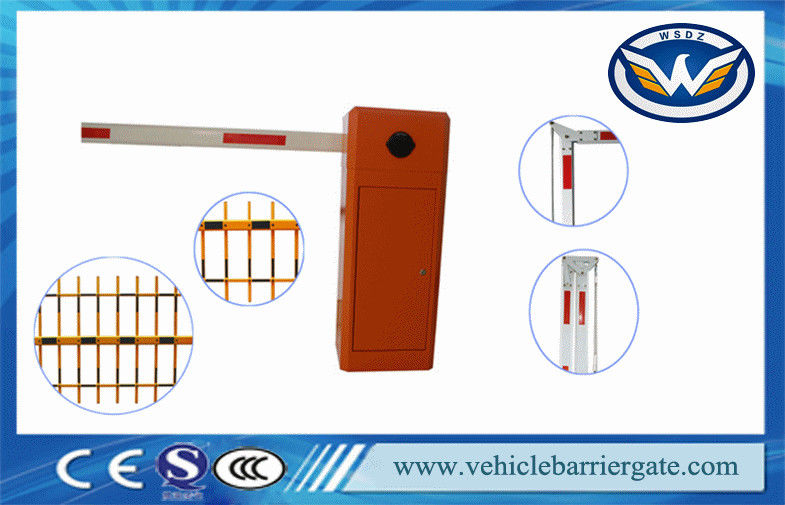

Manual Release Car Park Entrance Barriers Automatic Boom Barrier 1400rmp

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-133-A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

automatic car park barrier

,

parking lot barriers

Name:
Manual Release 220v Gate Barrier Car Park Barriers Parking System Barrier
Voltage:
220V±10%, 110V±10%, 50/60HZ
Working Temperature:
-25℃~+85℃
Remote Control Distance:
≥30m
Protection Degree:
IP54
Name:
Manual Release 220v Gate Barrier Car Park Barriers Parking System Barrier
Voltage:
220V±10%, 110V±10%, 50/60HZ
Working Temperature:
-25℃~+85℃
Remote Control Distance:
≥30m
Protection Degree:
IP54
Description
Manual Release Car Park Entrance Barriers Automatic Boom Barrier 1400rmp

Manual Release 220v Gate Barrier Car Park Barriers Parking System Barrier





Car Park Barriers Features



1) The humanized clutch device: unlocking the clutch device and raising the boom manually in case of power off. By the time the power is supplied, lick the clutch device to make it work normally again.

2) Car Park Barriers Special spring device: Both the compression spring and tension spring can be used in the machine, Using the compression spring can avoid accidents caused by the tension spring.

3) Three control buttons: for boom raising, falling, and pausing.

4) Car Park Barriers Boom backtrack function: the boom will rise if hits something when falling.

5) Infrared photocell design: for avoiding the crash when the boom falls, so as to prevent the vehicles from being pressed.

6) Both external and internal loop detectors are supported.

7) "open", "close" and "stop" controlling interfaces.

8) RS-485 communication serial interface(optional)

9) Traffic light signal connection device: red light for stop, green light for pass.

10) Car Park Barriers Remote control and wire control for selection.





1 pcs Car Park Barriers
1 pcs Car Park Barriers arm boom (from 1m to 6m can customized)
1 pcs Car Park Barriers control panel(built inside)
2 pcs Car Park Barriers, remote controllers
1 pcs Car Park Barriers manual book




Car Park Barriers Specifications



Car Park Barriers Model

WST1211

Car Park Barriers Working Temperature

-40℃~+75℃

Car Park Barriers Voltage

220V±10%, 110V±10%, 50/60HZ

Car Park Barriers Rated power

80W

Car Park Barriers Relative humidity

≤90%

Car Park Barriers Remote control distance

≥30m

Car Park Barriers Net weight

48kgs

Car Park Barriers Speed

1S,1.8S,3S, 6S

Car Park Barriers Max boom length

6 meters

Car Park Barriers Motor Rotational speed

1400rmp

Car Park Barriers Protection Degree

IP44





Communication with customers

1)     Q: Connected power and pressed the open/close button but the
Car Park Barriers no action.



A

Reason

Solution

1

Fuse blown

Check the fuse and power in the controller

2

The battery of the remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click the OPEN/CLOSE button on the control box

4

Same frequency interference

Check photocell and loop detector


2) Q: Connected power and press the open/close button, the
Car Park Barriers will move but even when it is in the right position, the motor still runs and does not stop.



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to the correct position

2

Main controller failure

Change a new one


3)   Q: The motor running but the
Car Park Barriers arm is not in action?



A

Reason

Solution

1

Car Park Barriers arm at 45° position where is hard to move

Unlock the clutch and manually rotate the arm to a horizontal or vertical position then try again

2

The tension of the balancing spring is not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing, the
Car Park Barriers arm cannot reach the right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open the barrier door and unlock the clutch to check when the arm is at 90° vertical position if the master rod covers slave one; when the arm is at 180° horizontal position if the master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal









FAQ:



1- Can you install using loop detector or pressure sensor on it?

 Yes, the barrier gate has a loop detector and pressure sensor.



2- How about the guarantee and after-sale service?

We have a LIFETIME guarantee for our machine core, We have our technical team & after-sale services who can speak fluent English.



3- How long is the leading time?

For standard item

10-50 sets: 3 working days

50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special items, or need a custom design package or logo, need 3-7 working days longer.



 4- How about the payment terms?

 TT,western union,paypal, L/C



 5- How do you send the products to me, how long?

As our products are big volume and heavy duty, we suggest you ship by sea. You can also choose your shipping forwarder. It normally takes 7-60 days depending on different countries.



6- What is the package of the barrier gate?

Inside with a carton package. Then outside, according to the different shipping methods, they will be packaged in a wooden crate.



7- Can you do OEM service?

 We offer below OEM services:

 1)we can make a custom design turnstile, or if you tell us your requirements, we can make a design for you.

 2)Can print your logo on turnstiles, can customize the retail box packing and other things.



 8- Our services:

1. For all your inquiries about us or our products, we will reply to you in detail within 24 hours
2. We own a technical team & after-sale services who can speak fluent English.
3. We offer OEM services. Can print your own logo on the products, can customize the retail box packing, and other things.

4. We have very experienced engineers, who can help you better use it.





Car Park Barriers Packaging & Shipping



1. Strong carton case with cushion for safety, air bubble film inside for protecting the appearance from damage.

2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.

3. As for shipping, we can send you the goods by air, sea, and express, which is according to your detailed requirements.
