Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-115
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Product Name:: |
Blue Remote Control Traffic Barrier Gate In Malaysia Barrier Gate With RS485 |
Application: |
Highway, Parking Lot, Hotel, Community, Factory, Bus Station |
Color: |
Yellow, Orange, Black, Blue, Customize Optional |
Operation Time: |
0.6s, 1s, 1.8s, 3s, 6s |
Protection Degree:: |
IP54 |
Rating Voltage: |
AC 220/110V±10%, 50/60Hz |
Product Name:: |
Blue Remote Control Traffic Barrier Gate In Malaysia Barrier Gate With RS485 |
Application: |
Highway, Parking Lot, Hotel, Community, Factory, Bus Station |
Color: |
Yellow, Orange, Black, Blue, Customize Optional |
Operation Time: |
0.6s, 1s, 1.8s, 3s, 6s |
Protection Degree:: |
IP54 |
Rating Voltage: |
AC 220/110V±10%, 50/60Hz |

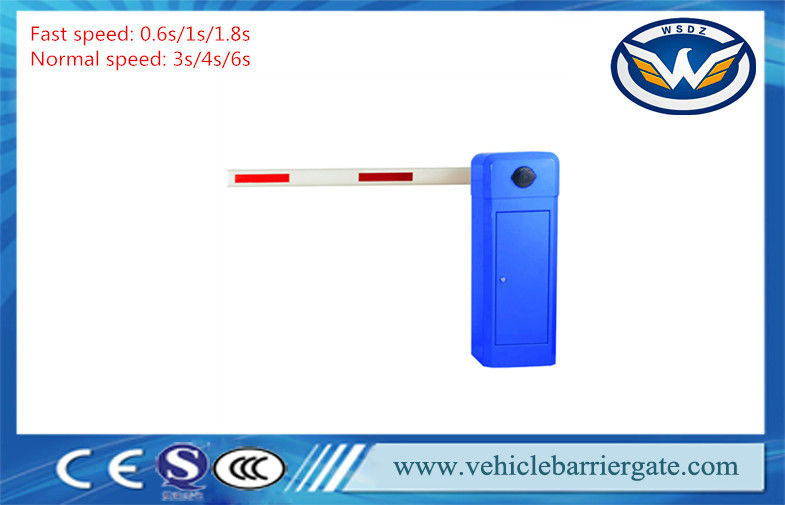

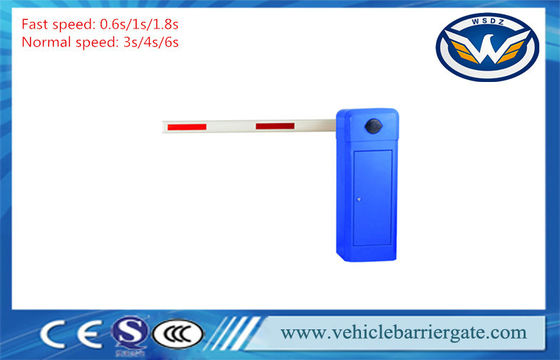

Blue Remote Control Traffic Barrier Gate In Malaysia Barrier Gate With RS485
Techinical data:
| Type |
WSTP-115;WSTP-115B;WSTP-116; WSTP-117. WSTP-118, WSTP-119, WSTP-120,WSTP-121,WSTP-122,WSTP-123 |
| Operation time |
0.6s, 1s, 1.8s, 3s, 6s. Customized
|
| Arm Type |
Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy |
| Material |
Galvanized plate or Cold roll plate, 2mm thickness sheet 3 years without rust, shedding and fading |
| Size |
320*280*935 mm |
| Spring And Bearing |
Heat Treatment: more durable, more than 5 million times through operation testing |
| Rating Power |
120W |
| Rating Voltage |
AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance |
Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| G.W |
50 KG |
| Delivery |
By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
| Advantages |
1. Professional Manfacturer for more 8 years 2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
Functions & Features
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Parking & Shipping:
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the apperance
from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your
detail requirements.
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Best Service:
1. OEM/ODM order are accepted, we have 7 years OEM/ODM experience
2. Price can be negotiable with order quantity.
3. 2 professional technicists can give you best support.
4. Mould production of accessories, can provide you any replace of barrier gate.
5. Professional sales team can provide you professional answers and quick response of your
questions.
6. Sample order is OK for testing its function and working performance.
7. Warmly welcome for visiting our factory and having a face to face negotiation.
FAQ:
Communication with customers
1. Motor works but there is no reaction on the arm.
a. Please check whether the clutch device is locked or not.
2. There is too much vibrant when the boom is rising or falling.
a. Please check whether the shock absorption rubber is broken or not, if yes,
change a new one.
b. Please check whether the balance spring is overused and distorted. If yes,
change a new one.
b. Please check whether the balance spring is overused and distorted.If yes,
change a new one, or spin
bottom adjust nut.
3. The boom could not rise up or fall down to the end.
a. When change a long boom to a short one, please readjust it.
b. The sensor does not plug well, please chek it.
c. The " Speed adjust switch" is wrong adjust, please readjust it.
4. The distance of the remote control decreases.
a. Check whether the charge capacity of the remote controller is enough or not.
5. There is no reaction when pressing the remote controller buttons.
a, Please check whether the power is supplied to the barrier gate or not.
b. Please check whether the fuse is burnt out or not.
c. Please check whether the code both in the remote controller and the control
board are accordant or not.
6 There is no reaction on the motor when the user changes a control board.
a. Please check the capacitance is correctly fixed or not.
b. Please check the sensor is right inserted or not.
