Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-133-A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
0.6s LED Rubber Straight Boom Automatic Boom Barrier For Highway Toll |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Max Boom Length: |
8 Meters |
Remote Control Distance: |
≥30m |
Name: |
0.6s LED Rubber Straight Boom Automatic Boom Barrier For Highway Toll |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Max Boom Length: |
8 Meters |
Remote Control Distance: |
≥30m |

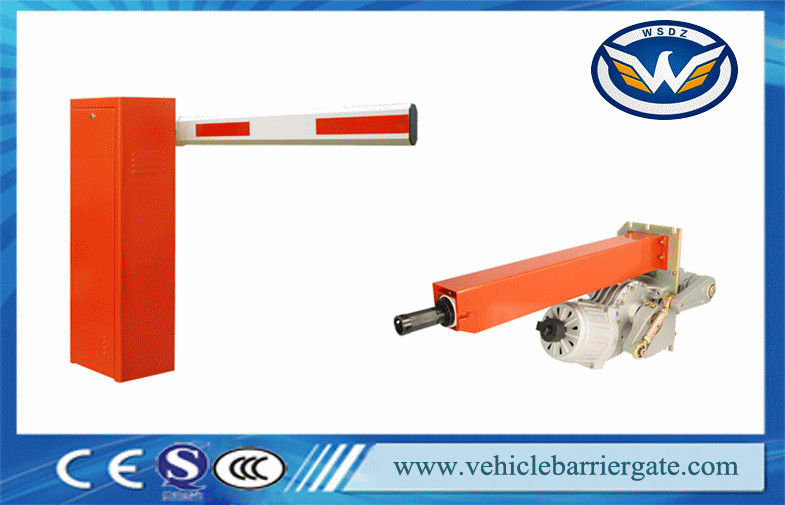

0.6s Led Rubber Straight Automatic Boom Gates For Highway Toll
What is the davantages of Wonsun barriers?
1)The humanized clutch device:in case of power off, unlock the clutch device and raise the
boom manufally. By the time the power is supplied, lick the clutch device to make it working
normally again.
2)Special spring device:Both the compression spring and tension spring can be used in the
machine, Using the compression sprin can avoid accidents caused by the tension spring.
3)Three control buttons:for boom raising, falling and pausing.
4)Boom backtrack function:the boom will rise if hits something when falling.
5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the
vehicles from being pressed.
6)Both external and internal loop detectors are supported.
7)"open","close" and "stop" controlling interfaces.
8)RS-485 communication serial interface(optional)
9)Traffic light signal connection device: red light for stop,green light for pass.
10)Remote control and wire control for selection.
Model Selection and Differences
| Model | WST1151 | WST1152 | WST11521 | WST11522 | WST11561 |
| Boom Shape | Straight boom | Straight Boom | 90degree,Articulated boom | 90degree,Articulated boom | 90degree,Articulated boom |
| Max Boom Length | 6m | 4.5m | 5m | 3m | 5m |
| Speed | 6 seconds | 3 seconds | 6 seconds | 3 seonds | 6 seconds |
Specifications
|
Model |
WST1211 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
48kgs |
|
Speed |
1S,1.8S,3S, 6S |
|
Max boom length |
6 meters |
|
Motor Rotational speed |
1400rmp |
|
Protection Degree |
IP44 |
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but even when
it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical &
180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal
|
Why choose us?
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for
small order.
