Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-119
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Features: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Model Number: |
DZTP-137-A Vehicle Barrier Gate |
Housing Material: |
2mm Cold Roller Steel Plate |
Housing Dimension: |
320 * 280 * 935 Mm |
Car Parking: |
Vehicle Control Barriers Gate |
Color: |
Yellow， Orange, Blue,customized Optional |
Features: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Model Number: |
DZTP-137-A Vehicle Barrier Gate |
Housing Material: |
2mm Cold Roller Steel Plate |
Housing Dimension: |
320 * 280 * 935 Mm |
Car Parking: |
Vehicle Control Barriers Gate |
Color: |
Yellow， Orange, Blue,customized Optional |

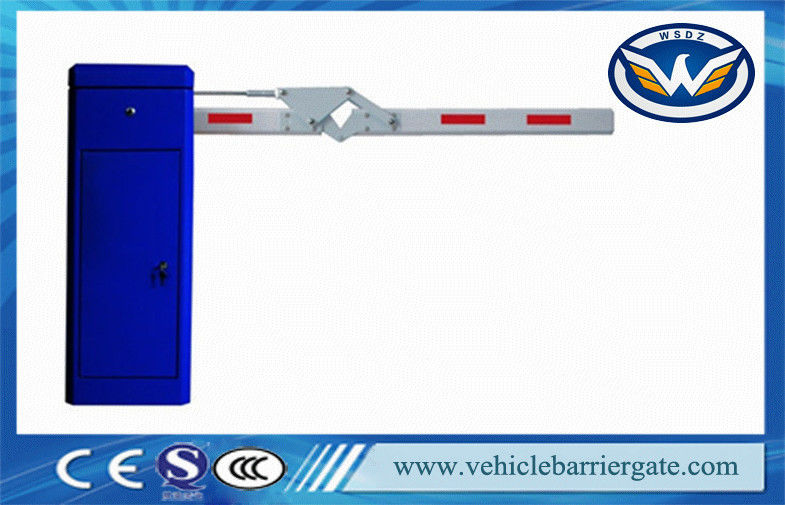

Safety Automatic Parking Barrier Water Proof And Rustproof Boom Barrier System
Application
Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse, hotel, factories, condominium, car rental companies, etc. It can also be customized to be used together with any auto-pay ticketing parking or access control system.
Technical Data
| Model |
WSTP-119 (WONSUN 1st generation machine core) |
| Power |
80w |
| Material |
Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Running Time |
0.6s, 1s, 1.8s, 3s, 4s, 6s |
| Operating Temperature |
-45°C to 75°C |
| Voltage: |
220V ± 10%, 110V ± 10% |
| Relative Humidity |
<90% coagulation free |
| Motor speed |
30r/min |
| Boom length |
Max 6 meters |
| Net weight: |
50Kg |
| MCBF |
≥5, 000, 000 times |
| Housing Size |
320*280*935mm |
| Traffic light |
Optional |
| Rail material |
Aluminum Alloy |
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories |
infrared sensors, loop detectors,traffic light, UHF readers |
| Application |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings, |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Our other products |
WONSUN has other products: tripod turnstiles, sliding gate motor, flap barrier,swing gate motor, pedestrian access control turnstiles and barriers, |
Functions & Features
1. By- security, The barrier with automatically go back when meet obstacles during closing.
2. AC motor is more powerful and no maintenance.
3. Barrier Arm can be choose from 1 meter to 6 meters
4. Opening and closing time is also arrange from 1 second to 6 seconds
5.When you choosed barrier gate installed, please tell me barrier is right installed or left installed
6. All the operation process is soft without any noise and shaking
7.Control board can Infrared photocell interface,Loop detector interface and IC system.
8. Clutch Key can be used to open the clutch when power off.
9. Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting .
FAQ
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
my dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or
call me!
We will provide our best professional service for you.
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
*We will give you bill of loading after gate barrier depart our shipping port;
*Our shipping agent will contact you when gate barrier arrival
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
7. Best service barrier gate motor can accepted old to change new motor. The barrier gate is production by our factory.
