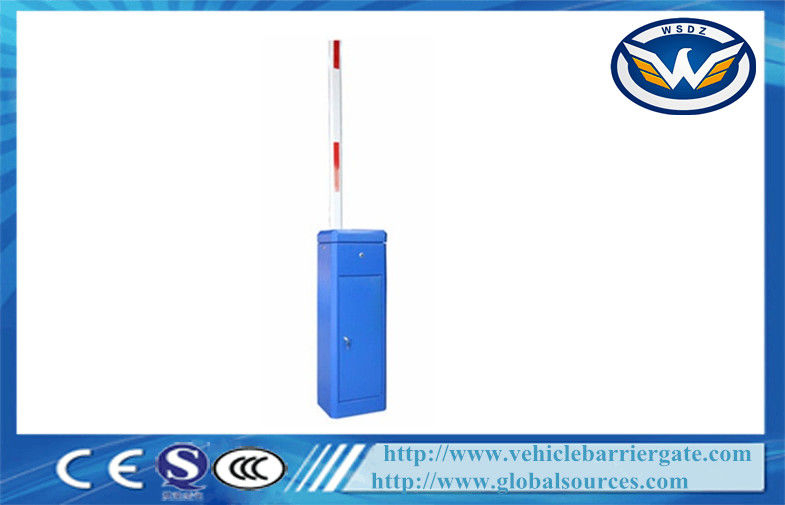

Automated Barrier Arm Security Gates For Smart Parking System

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-133-A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

auto barrier gate system

,

security barrier gate

Name:
New Design Automatic Gate Toll Barrier Gate For Smart Parking System
Voltage:
220V±10%, 110V±10%, 50/60HZ
Max Boom Length:
8 Meters
Relative Humidity:
≤95% Coagulation Free
Net Weight:
50kgs
Name:
New Design Automatic Gate Toll Barrier Gate For Smart Parking System
Voltage:
220V±10%, 110V±10%, 50/60HZ
Max Boom Length:
8 Meters
Relative Humidity:
≤95% Coagulation Free
Net Weight:
50kgs
Description
Automated Barrier Arm Security Gates For Smart Parking System



Automated Toll Barrier Gate Arm Security Gates For Smart Parking System





1Toll Barrier Gate Manual release

2Toll Barrier Gate Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3Die-casting aluminum alloy motor, precision and good at thermal radiating

4Toll Barrier Gate Motor cooling fan, solving the problem of heat-protection

5Double safety limit switches (photo electricity limit switch/motor memory sensor)

6Reversing on obstacle

7Auto-closing

8Support the INFRARER PHTOCELL for anti-bumping function (optional)

9Support the external and internal VEHICLE LOOP DETECTOR (optional)

10Toll Barrier Gate Traffic light interface

11Wire control (switch signal)/ Remote control (418MHZ)

12RS485 communication module (optional)




Toll Barrier Gate Model Selection and Differences



Automated Barrier Arm Security Gates For Smart Parking System 0




Toll Barrier Gate Specifications



Toll Barrier Gate Model

WST1211

Toll Barrier Gate Working Temperature

-40℃~+75℃

Toll Barrier Gate Voltage

220V±10%, 110V±10%, 50/60HZ

Toll Barrier Gate Rated power

80W

Toll Barrier Gate Relative humidity

≤90%

Toll Barrier Gate Remote control distance

≥30m

Toll Barrier Gate Net weight

48kgs

Toll Barrier Gate Speed

1S,1.8S,3S, 6S

Toll Barrier Gate Max boom length

6 meters

Toll Barrier Gate Motor Rotational speed

1400rmp

Toll Barrier Gate Protection Degree

IP44




Communication with customers

1)     Q: Connected power and pressed the open/close button but the traffic barrier gate did not action.



A

Reason

Solution

1

Fuse blown

Check the fuse and power in the controller

2

The battery of the remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click the OPEN/CLOSE button on the control box

4

Same frequency interference

Check photocell and loop detector


2) Q: Connected power and press the open/close button, the
Toll Barrier Gate will move but even when it is in the right position, the motor still runs and does not stop.

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to the correct position

2

Main controller failure

Change a new one


3)   Q: The motor running but the traffic barrier gate arm is not in action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock the clutch and manually rotate the arm to a horizontal or vertical position then try again

2

The tension of the balancing spring is not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing, traffic barrier gate arm cannot reach the right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open the barrier door and unlock the clutch to check when the arm is at 90° vertical position if the master rod covers slave one; when the arm is at 180° horizontal position if the master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal









Why choose us?



1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system were destroyed by the wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belongs to the production factory.
