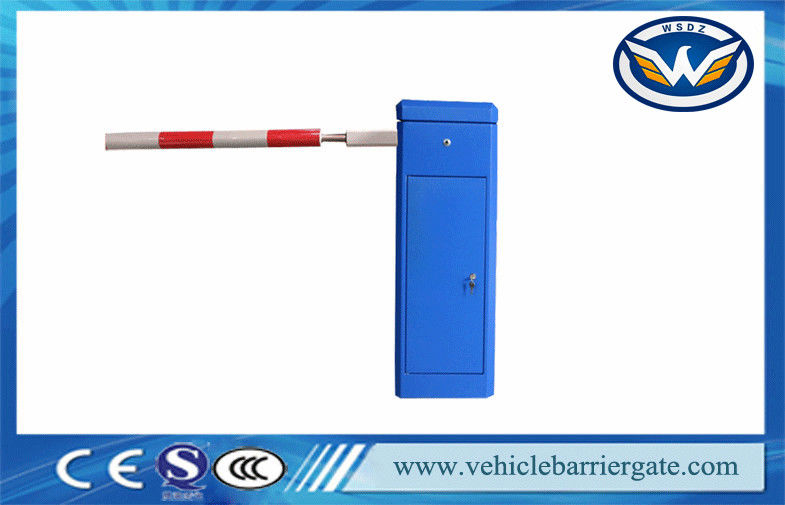

2mm Cold Rolled Steel Plate Car Park Barrier With White Rubber

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-119

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

automatic car park barrier

,

parking lot barriers

Name:
Intelligent Barrier Gate Electrical Road Safety Barrier With 2mm Cold Rolled Steel Palte
Remote Control Distance:
≥30m
Rating Power:
120W
Max Boom Length:
8 Meters
Payment:
1.) 30% T/T As Deposit In Advance And 70%T/T Before Loading
Delivery Time:
Delivery The Guardrail In10days After Receiving The Deposit
Name:
Intelligent Barrier Gate Electrical Road Safety Barrier With 2mm Cold Rolled Steel Palte
Remote Control Distance:
≥30m
Rating Power:
120W
Max Boom Length:
8 Meters
Payment:
1.) 30% T/T As Deposit In Advance And 70%T/T Before Loading
Delivery Time:
Delivery The Guardrail In10days After Receiving The Deposit
Description
2mm Cold Rolled Steel Plate Car Park Barrier With White Rubber



 2mm Cold Rolled Steel Plate Car Park Barrier With White Rubber and LED





Wonsun barrier gate is designed using innovative technology and manufactured with precision

machinery to guaarantee satisfaction in quality and reliability for years to come.

Wonsun barrier gate has been lab tested for more than 5 millions opening / closing and still without any degrade in performance.

No limit switch design minimizes mechanical wear and enchances barrier life time.






Why choose us?


1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.





Functions & Features

1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)








Specifications



Model

WSTP119

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44




Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal
