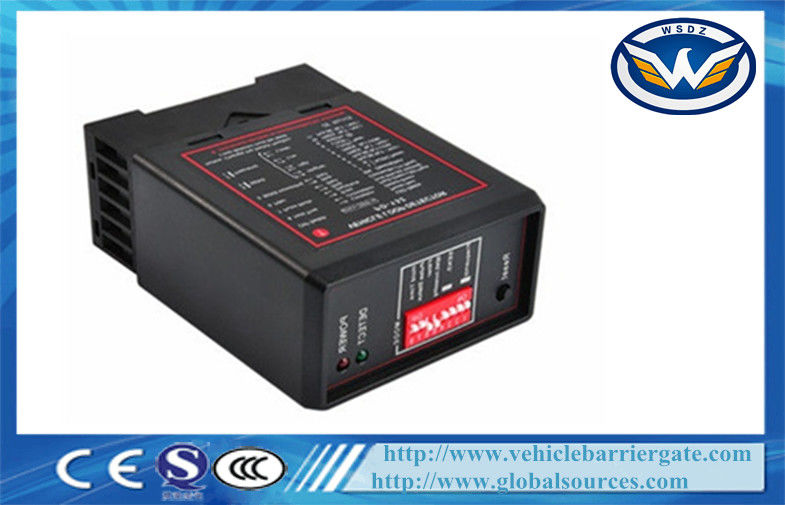

Black Automatic Barrier Gate Vehicle Loop Detector Single / Double

Product Details

Place of Origin: Shenzhen,China

Brand Name: WONSUN

Certification: CE

Model Number: WSTV-410

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: Negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

traffic loop detectors

,

loop vehicle detector

Name:
Single / Double Vehicle Loop Detector For Automatic Barrier Gate
Voltage Tolerance AC:
+10% / -15%
Reaction Time:
100ms
Output Relays:
240V/5A
Frequency Range:
20 KHz To 170 KHz
Power Consumption:
4.5VA
Name:
Single / Double Vehicle Loop Detector For Automatic Barrier Gate
Voltage Tolerance AC:
+10% / -15%
Reaction Time:
100ms
Output Relays:
240V/5A
Frequency Range:
20 KHz To 170 KHz
Power Consumption:
4.5VA
Description
Black Automatic Barrier Gate Vehicle Loop Detector Single / Double

Single / Double Vehicle Loop Detector For Automatic Barrier Gate


Main Technical


Power: AC220V, 50HZ, 0.25A (max)
Working Temperature: -25℃~55℃
Working Humidity: 10%~95% no condensation.
Opening/Closing time: 6s
Wattage: 800W
DC12V Auxiliary Power Output: DC12V output, 100mA max
Safety sensors options:  The control panel has the ability to connect all or any of the following safety sensors:  Exit/Entry Wand, to automatically open or close the boom gate Loop Detector, to automatically open or close the boom gate PE (photoelectric sensors), to prevent the boom gate from closing on an car or person.

Operating options The system is supplied with a control panel housed in a protective plastic control box with 3 controlling push buttons (Open, Close, and Stop).
The system can also be controlled from any or all the above optional controlling devices: Keypads Remote Controls ID Swipe card Readers  Finger Print Readers Push Button Switches Key Switches GSM Switch (Telephone Dialer)



  Main Features

*Manual release
*Machine core with compression spring
*Aluminum alloy motor, precision and good at thermal radiating
*Intelligent overheating protection system, solving the problem of heat-protection
*Double safety limit switches (photoelectric limit switch/mechanical limit switch)
*Reversing on obstacle
*Auto-closing
*Special blancing structure design makes the barrier boom has the feature of slow-staring,
 fast-running, slow stopping
*90 degree running which excludes the accident caused by 360 degrees running
*Special low-speed motor with aluminum casing, one-piece gear box design, low noise, fast heat-
dissipation

Security and traffic control management is simplified with our range of boom gates and traffic barriers which are designed for entry and exit points at industrial complexes, body corporate managed complexes, factories, schools, car parks and caravan parks.
BG-SA-6 is a 6m driveway boom gate operating system, the main body is constructed from strong steel, it is very quiet and fast on opening and closing, with precise limit switch adjustment, easy to adjust balancing spring that guarantee a smooth movement, and is coupled with a heavy duty gear box specially designed to give a smooth opening and closing operation.



Supply voltage:220V AC , 115V AC,24VDC/AC,12V DC/AC
( See the label on the detector)
Voltage tolerance AC+10% / -15%
Voltage tolerance DC±15%
Power Consumption4.5VA
Output relays240V/5A
Operating temperature-220°C to +65°C
Storage temperature-40°C to +85°C
Frequency range20 kHz to 170 kHz
Reaction time100ms
Signal holding timeUnlimited
SensitivityAdjustable in 3 increments
Loop inductanceTotal loop plus connection wiring:
50μH to 1000μH. Ideal is 100μH to 300μH
Loop connection wiringMaximum length 20 meters,
twisted at least 20 times per meter
Size of Housing78x40x108 mm (L x W x H)




Three reasons to choose WONSUN

1)Fastest finishing time:2-5days, also urgent order is acceptable.
2)Longest guarantee time for our products. especially for our boom barrier, lifetime guarantee.
3)Best after-sale service. any questions after you receive the goods, just ask
