100 % Heavy Duty Automatic Car Park Barriers With Remote Control

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-115B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

automatic car park barrier

,

car parking barriers

Speed::
0.6s, 1s, 1.8s, 3s, 6s
Power Supply::
AC 220±10%, 110±10% 50/60HZ
Product Name::
100 % Heavy Duty Automatic Car Park Barriers With Remote Control
Working Temperature::
-40°to 85°
Features::
Heavy Duty, Manual Release, Swing Out, Remote Control
Motor Rotational Speed::
1400rmp
Speed::
0.6s, 1s, 1.8s, 3s, 6s
Power Supply::
AC 220±10%, 110±10% 50/60HZ
Product Name::
100 % Heavy Duty Automatic Car Park Barriers With Remote Control
Working Temperature::
-40°to 85°
Features::
Heavy Duty, Manual Release, Swing Out, Remote Control
Motor Rotational Speed::
1400rmp
Description

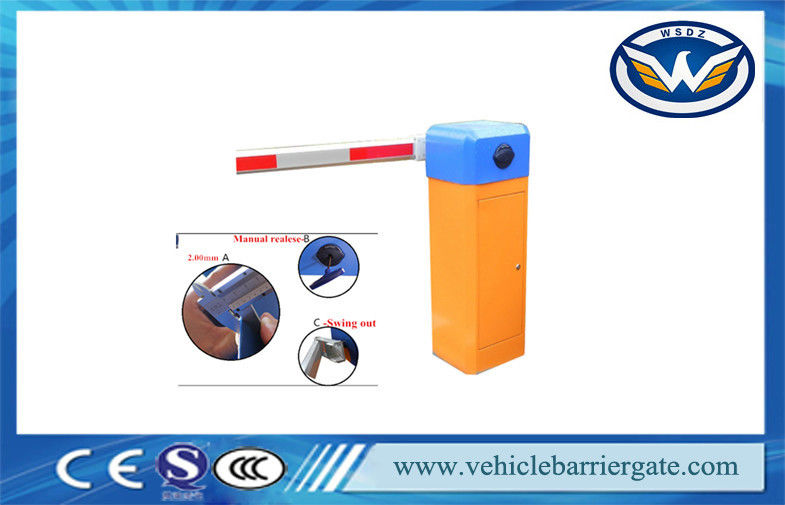

100 % Heavy Duty Automatic Car Park Barriers With Remote Control

100 % Heavy Duty Automatic Car Park Barriers With Remote Control



What is the davantages of Wonsun barriers?



1)The humanized clutch device:in case of power off, unlock the clutch device and raise the boom manufally. By the time the power is supplied, lick the clutch device to make it working normally again.

2)Special spring device:Both the compression spring and tension spring can be used in the machine, Using the compression sprin can avoid accidents caused by the tension spring.

3)Three control buttons:for boom raising, falling and pausing.

4)Boom backtrack function:the boom will rise if hits something when falling.

5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.

6)Both external and internal loop detectors are supported.

7)"open","close" and "stop" controlling interfaces.

8)RS-485 communication serial interface(optional)

9)Traffic light signal connection device: red light for stop,green light for pass.

10)Remote control and wire control for selection.





Basic Features:

1)By-security. the barrier gate will automatically go back when meet obstacles during closing.
2)AC motor is more powerful and no maintenance.
3)Barrier Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.
4)Closing time is also arranged from 1 second to 6 seconds.
5)The barrier gate can be both right-installed and left-installed.
6)All the operation process is soft without any noise and shaking.
7)Infrared photocell interface, loop detector interface and IC system.
8)interface are reserved for the other functions.
9)Green light and red light are used inside for indication the position of the boom


Advanced Features:
1)clutch key can be used to open the clutch when power off.
2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.
3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.


Specifications

Model

WSTP-115B

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44





Parking & Shipping:

1. Strong carton case with cushion for safety, air bubble film inside for protect  ing the apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your detail requirements.

1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book


Air

As for shipment by Air, if you really need the product for installation, and for airplane, there is length limitation, can not over 3m, so we suggest u not shipping with arm

Sea As for shipment by Sea, we can provide FOB, C&F, CIF, DDP and DDU, which can satisfy all your requirements by Sea
Express

 For Express, there is less customer choose it for shipment, because for its price, it is
high, but not quicker than Airplane, and also there is limitation of length, but if you want to shipment by Express, we also can provide you this service.













Communication with customers

1)     Q: Connected power and press open/close button but automatic barrier gate no action?


A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button, automatic barrier gate will move but even when it is at right position, the motor still running and not stop?

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but automatic barrier gate arm no action?

A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


 4)  Q: When opening/closing, automatic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position





Why choose us?



1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining  authority of this product instruction and service article belong to the production factory.
