Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-133-A
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |

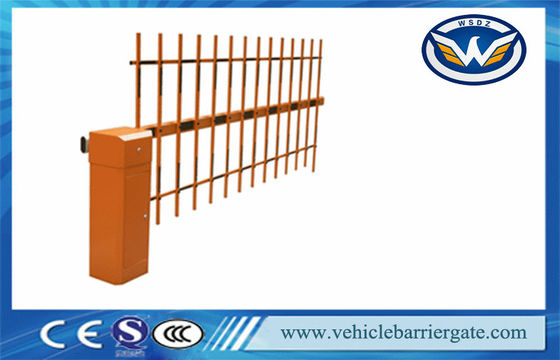

High Speed Automatic Boom Barrier With Straight Bar 1- 6 Meters For Car Parking System |
Comunication Transmission Distance: |
1200m(RS-485) |
Max Boom Length: |
8meters |
Protection Degree: |
IP44 |
Place Of Origin: |
Shenzhen,China |
Name: |
High Speed Automatic Boom Barrier With Straight Bar 1- 6 Meters For Car Parking System |
Comunication Transmission Distance: |
1200m(RS-485) |
Max Boom Length: |
8meters |
Protection Degree: |
IP44 |
Place Of Origin: |
Shenzhen,China |
High-Speed Automatic Boom Barrier Parking Barriers With Straight Bars 1- 6 Meters
Automatic Boom Barrier Advantages
1. Automatic Boom Barrier Special driving structure, no gears, non-belt driving, maintenance free, high stability, longer life.
2. Automatic Boom Barrier Special balancing structure design makes the barrier arm has the features of slow-starting, fast-running, and slow-stopping.
3. It is running without arm-shaking.
4. The Automatic Boom Barrier arm is 90 degrees running excluding the failure caused by 360 degrees running.
5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat dissipation.
6. The Automatic Boom Barrier driving mechanism has the design of an intelligent overheating protection system, in frequent use, it can control the warming of the motor, making the motor not burn easily.
7. The Automatic Boom Barrier main engine adopts a mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using a traditional magnetic switch which is easily interfered with by the external environment.
8. Automatic Boom Barriercan be chosen from 1m to 6m.
Automatic Boom Barrier Model Selection and Differences
Automatic Boom Barrier Specifications
|
Model |
WST1211 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
48kgs |
|
Speed |
1S,1.8S,3S, 6S |
|
Max boom length |
6 meters |
|
Motor Rotational speed |
1400rmp |
|
Protection Degree |
IP44 |
Automatic Boom Barrier Communication with customers
1) Q: Connected power and pressed open/close button but the traffic barrier gate did not action.
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check the fuse and power in the controller |
|
2 |
The battery of the remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click the OPEN/CLOSE button on the control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q: Connected power and press the open/close button, the traffic barrier gate will move but even when it is in the right position, the motor still runs and does not stop.
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to the correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: The motor running but the traffic barrier gate arm is not in action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock the clutch and manually rotate the arm to a horizontal or vertical position then try again |
|
2 |
The tension of the balancing spring is not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing, Automatic Boom Barrier arm cannot reach the right position (90° vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open the Automatic Boom Barrier door and unlock the clutch to check when the arm is at 90° vertical position if the master rod covers slave one; when the arm is at 180° horizontal position if the master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal
|
| Automatic Boom Barrier Market | Revenue(Previous Year) | Total Revenue (%) |
| North America | USD 63,608 | 1 |
| South America | USD 508,869 | 8 |
| Eastern Europe | USD 3,180,436 | 50 |
| Southeast Asia | USD 318,043 | 5 |
| Oceania | USD 127,217 | 2 |
| Mid East | USD 190,826 | 3 |
| Western Europe | USD 1,017,739 | 16 |
| Domestic Market | USD 954,130 | 15 |
1 pcs Automatic Boom Barrier
1 pcs Automatic Boom Barrier arm boom (from 1m to 6m can customized)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
For the things that most customers want to know:
1. One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltage.
3. The surfaces of the system were destroyed by the wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belongs to the production factory.
